Simer M40P Mini-Vac Utility Pump Kit Instruction Manual

1. Hyrje

The Simer M40P Mini-Vac Utility Pump Kit is designed for efficient water transfer and dewatering in various situations. This non-submersible utility pump is ideal for both emergency use, such as removing water from flooded areas, and everyday tasks like draining water from small pools, water beds, or other containers. It is a versatile tool for managing unwanted water.

2. Informacion mbi sigurinë

PARALAJMËRIM: Read and understand all safety instructions before operating this pump. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Do not run pump dry: Operating the pump without water can cause severe damage to the motor and internal components.
• Do not pump flammable liquids: This pump is designed exclusively for water. Pumping flammable liquids such as gasoline, oil, or solvents can lead to fire or explosion.
• Pump only water with this pump: Ensure only clean water is pumped to prevent damage and ensure safe operation.
• Siguria elektrike: This pump operates on 115V, 60Hz AC/DC power. Always connect to a properly grounded outlet. Do not use extension cords that are not rated for outdoor use or are damaged. Keep all electrical connections dry.
• Mbrojtja termike: The pump is thermally protected, meaning it will automatically shut off if it overheats to prevent damage. Allow it to cool down before restarting.
• Propozimi 65 Paralajmërim: Ky produkt mund të përmbajë kimikate të njohura nga Shteti i Kalifornisë që shkaktojnë kancer dhe defekte të lindjes ose dëmtime të tjera riprodhuese.

3. Përmbajtja e paketës

Verify that all items are present in your Simer M40P Mini-Vac Utility Pump Kit:

• Simer M40P Non-Submersible Utility Pump
• Garden Hose (for discharge)
• Scoop Attachment (for water intake)

4. Konfigurimi

1. Pozicionimi i pompës: Place the pump on a stable, level surface near the water source. Ensure the pump motor is not submerged in water, as this is a non-submersible unit.
2. Connecting the Intake: Attach the scoop attachment to the intake port of the pump (the side without the brass fitting). Ensure a tight connection to prevent air leaks, which can affect priming.
3. Connecting the Discharge Hose: Connect the garden hose to the discharge port of the pump (the side with the brass fitting). Route the hose to the desired discharge location, ensuring it is free of kinks and obstructions. The discharge point should ideally be lower than the pump for optimal flow.
4. Submerging the Intake: Place the scoop attachment into the water you wish to pump. Ensure the scoop is fully submerged.
5. Lidhja e energjisë: Plug the pump's power cord into a grounded 115V AC/DC electrical outlet.

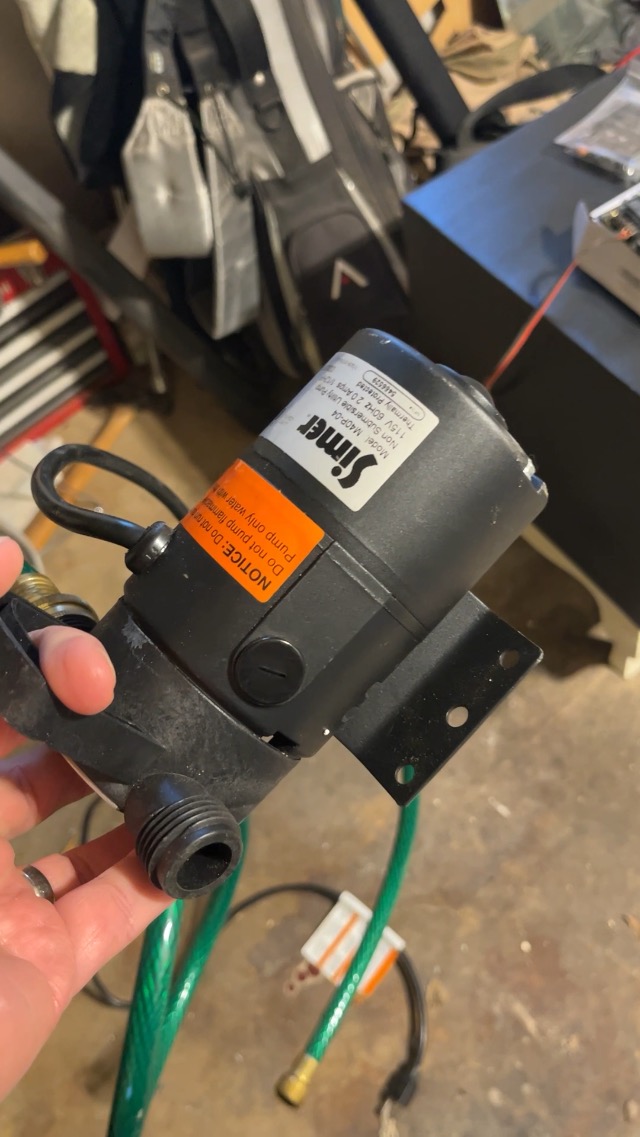

Figure 4.1: Simer M40P pump with intake and discharge hoses connected.

Figura 4.2: Mbiview of the Simer M40P Mini-Vac Utility Pump Kit.

5. Udhëzimet e funksionimit

1. Initiating Pumping: Once the pump is set up and the intake is submerged, plug the power cord into the electrical outlet. The pump will begin to operate immediately as it does not have an on/off switch.
2. Operacioni i monitorimit: Observe the water flow from the discharge hose. The pump is designed for efficient and relatively fast water transfer.
3. Ndërprerja e pompës: To stop the pump, simply unplug the power cord from the electrical outlet.
4. Preventing Dry Running: Always ensure the intake remains submerged in water during operation. If the water level drops below the intake, unplug the pump immediately to prevent damage.

6. Mirëmbajtja

Regular maintenance ensures the longevity and optimal performance of your Simer M40P pump.

• Pastrimi: After each use, especially if pumping dirty water, flush the pump with clean water to remove any debris. Disconnect hoses and clean the scoop attachment.
• Inspektimi: Periodically inspect the power cord, hoses, and pump body for any signs of wear, damage, or leaks. Replace damaged components as necessary.
• Magazinimi: Store the pump in a dry, protected area when not in use. Ensure it is drained of all water to prevent freezing damage in cold climates.
• Mbrojtja termike: If the pump shuts off due to overheating, allow it to cool down completely (approximately 30 minutes) before attempting to restart. Address any potential causes of overheating, such as restricted flow or dry running.

7. Troubleshooting

8. Specifikimet

• Modeli: M40P
• Marka: Simer
• Prodhuesi: Sta-Rite Industries LLC
• Lloji i produktit: Non-Submersible Utility Pump
• Burimi i energjisë: AC/DC
• Vëlltage: 115 volt
• Frekuenca: 60 Hz
• Ampegërsi: 2.0 Amps
• Horsepower: 1 / 12 HP
• Shpejtësia maksimale e rrjedhës: 6 galona për minutë
• Lartësia maksimale e ngritjes: 9 këmbë
• Materiali: Termoplastike
• Pesha e artikullit: 6.1 paund (rreth 6.05 paund)
• Dimensionet e produktit: 9.53 x 9.56 x 7.46 inç
• Mbrojtja termike: po
• Vendi i origjinës: Prodhuar në Kinë

9. Informacioni i garancisë

The Simer M40P Mini-Vac Utility Pump Kit comes with a Garanci 90 ditore from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for any warranty claims. For specific terms and conditions, refer to the warranty documentation included with your product or contact the manufacturer.

10. Mbështetje

For technical assistance, replacement parts, or further inquiries regarding your Simer M40P Mini-Vac Utility Pump Kit, please contact the manufacturer, Sta-Rite Industries LLC. Refer to the contact information provided on the product packaging or the official Simer webfaqja e internetit për detajet më të fundit të mbështetjes.
