Manuali i Përdoruesit të Kabllit të Lidhjes së Radios së Makinës Phonocar 4/745 ISO

1. Hyrje

This manual provides essential information for the proper installation and use of your Phonocar 4/745 ISO Car Radio Connection Cable. This cable is designed to facilitate the connection of an aftermarket car radio to specific Jeep, Chrysler, and Dodge vehicles, ensuring compatibility with the vehicle's existing wiring system. Please read these instructions carefully before proceeding with installation.

2. Produkti i Mbaruarview

The Phonocar 4/745 is an ISO standard wiring harness that simplifies the integration of a new car radio into your vehicle. It provides the necessary connections for power, ground, and speaker outputs, matching the vehicle's factory wiring to the ISO standard used by most aftermarket head units.

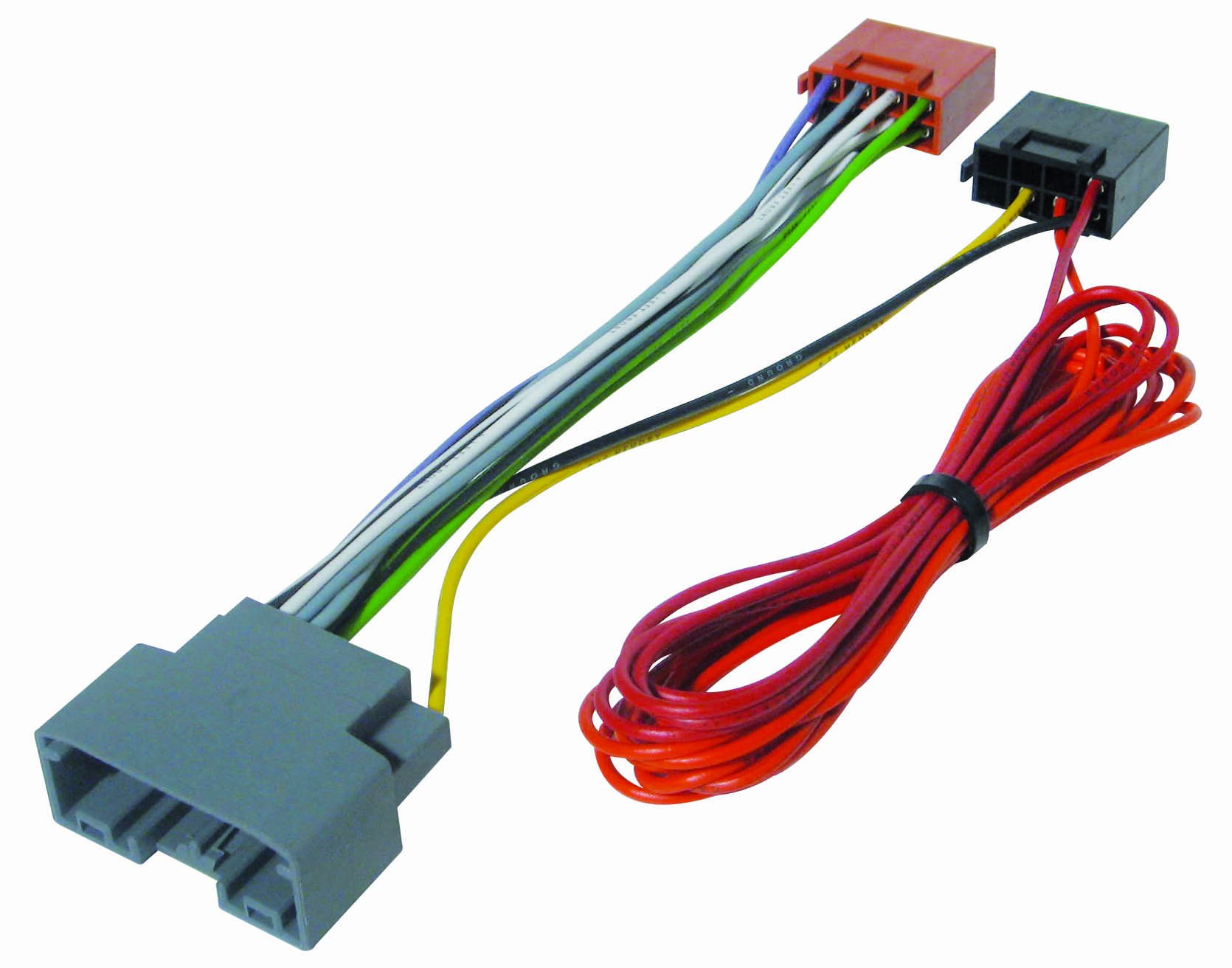

Image 1: Phonocar 4/745 ISO Car Radio Connection Cable. This image displays the multi-colored wiring harness with various connectors, illustrating the product's design for vehicle audio system integration.

Karakteristikat e produktit:

• Lloji i produktit: Car Radio ISO Connection Cable
• Modeli: Phonocar 4/745 (04745)
• Dimensionet (LxHxP): Përafërsisht 250 x 110 x 50 mm
• Ngjyra: Multicolored for easy wire identification

3. Përputhshmëria

This cable is specifically designed for the following vehicle models and years. Please ensure your vehicle matches the specifications below. Shënim: This cable is generally for vehicles without a factory ampmë i gjallë, unless otherwise specified.

• Chrysler:
  • Grand Voyager (2008 onwards) - pa ampmë i gjallë
  • Voyager (2008 onwards) - pa ampmë i gjallë
  • 300/300C (2008 onwards) - pa ampmë i gjallë
  • Sebring (2007-2008) - pa ampmë i gjallë
• Dodge:
  • Nitro (2007-2008) - pa ampmë i gjallë
  • Caliber (2006 onwards) - pa ampmë i gjallë
  • Dakota-Journey (2008 onwards) - pa ampmë i gjallë
  • Durango (2004-2007) - pa ampmë i gjallë
• Jeep:
  • Compass (2011 onwards) - For vehicles with an amplifier, an additional Phonocar reference 4/073 is required.
  • Wrangler-Liberty (2007-2008) - pa ampmë i gjallë

4. Konfigurimi dhe instalimi

Installation of car audio components can be complex. If you are not familiar with automotive electrical systems, it is highly recommended to seek professional installation to avoid damage to your vehicle or the product.

Hapat e përgjithshëm të instalimit:

1. Siguria së pari: Disconnect the vehicle's negative battery terminal before starting any electrical work to prevent short circuits.
2. Hiqni radion e fabrikës: Carefully remove the existing car radio from the dashboard. This may require specialized tools.
3. Identify Vehicle Harness: Locate the factory wiring harness that was connected to the original radio.
4. Connect Phonocar Cable: Plug the vehicle-specific end of the Phonocar 4/745 cable into the factory wiring harness. Ensure a secure connection.
5. Connect to New Radio: Connect the ISO standard end of the Phonocar 4/745 cable to the corresponding ISO harness of your new aftermarket car radio.
6. Testimi i lidhjeve: Before fully reassembling the dashboard, reconnect the vehicle's battery and test the new radio's functionality (power, audio, balance, fader, etc.).
7. Sigurojeni dhe rimontojeni: Once confirmed working, secure all wiring to prevent rattles and reassemble the dashboard components.

Refer to your new car radio's instruction manual for specific wiring diagrams and additional installation details.

5. Mirëmbajtja

The Phonocar 4/745 cable requires minimal maintenance. Ensure all connections remain secure and free from corrosion. Avoid pulling on the wires excessively during installation or removal. If the cable becomes damaged, it should be replaced to ensure proper electrical conductivity and safety.

6. Troubleshooting

If you encounter issues after installing the Phonocar 4/745 cable, consider the following troubleshooting steps:

• Nuk ka energji elektrike në radio:
  • Check if the vehicle's battery is properly reconnected.
  • Verify all connections of the Phonocar cable to both the vehicle harness and the new radio.
  • Inspect vehicle fuses related to the car radio.
• Nuk ka zë:
  • Sigurohuni që telat e altoparlantëve të jenë të lidhur saktë dhe të mos jenë të shkurtër.
  • Check the new radio's settings (volume, mute, fader, balance).
  • Confirm vehicle compatibility, especially regarding factory amplifiers (see Section 3).
• Probleme të përhershme:
  • Loose connections are a common cause. Re-check all plugs.
  • Ensure wires are not pinched or damaged.

If problems persist, consult a professional car audio installer or contact Phonocar customer support.

7. Specifikimet

8. Garancia dhe Mbështetja

The Phonocar 4/745 ISO Car Radio Connection Cable comes with a Garanci 1-vjeçare e prodhuesit. Kjo garanci mbulon defektet në materiale dhe mjeshtëri gjatë përdorimit normal.

For warranty claims, technical support, or further assistance, please contact Phonocar customer service through their official website or your point of purchase. Please have your product model number (04745) and proof of purchase ready when contacting support.
