Manuali i Përdoruesit të Detektorit Fotoelektrik të Tymit X-Sense SD13

Hyrje

This manual provides important information regarding the installation, operation, and maintenance of your X-Sense SD13 Photoelectric Smoke Detector. Please read this manual thoroughly before installation and keep it for future reference.

The X-Sense SD13 is designed to detect smoke and alert occupants to potential fire hazards, providing early warning for enhanced safety. It features a photoelectric sensor, a 10-year sealed lithium battery, and is certified to EN14604 standards, ensuring high quality and reliability.

Informacion i rëndësishëm për sigurinë

• This smoke alarm is designed for indoor use only.
• Do not paint the smoke alarm. Paint may clog the openings and prevent the alarm from functioning properly.
• Do not attempt to repair this unit. Refer to the "Troubleshooting" section for common issues.
• Testoni alarmin e tymit çdo javë për t'u siguruar që funksionon siç duhet.
• This device is not intended to replace proper fire safety practices, including regular inspections of heating appliances, chimneys, and electrical systems.
• In case of an alarm, evacuate immediately and call emergency services.

Përmbajtja e paketës

• 1 × Smoke Detector
• 1 × Mounting Base
• 2 × Vida
• 2 × Priza ankorimi
• 1 × Manuali i përdorimit

Produkti Mbiview

The X-Sense SD13 smoke detector features a compact, circular design with a test/silence button and an LED indicator. It is constructed from environmentally friendly, fire-retardant ABS material.

Figura 1: Përpara view of the X-Sense SD13 smoke detector.

Figura 2: Ana view highlighting the insect-proof design of the smoke detector.

Konfigurimi dhe instalimi

Proper placement and installation are crucial for the effective operation of your smoke detector.

Vendndodhja e rekomanduar

• Install smoke alarms on every level of your home, including basements.
• Place alarms inside and outside of sleeping areas.
• For best protection, install a smoke alarm in every room, especially bedrooms.
• Mount the alarm on the ceiling or high on a wall (within 15 cm of the ceiling).
• Avoid placing alarms near windows, doors, or air vents where drafts might interfere with smoke detection.
• Keep alarms at least 10 cm away from corners.
• Avoid placing alarms in kitchens, bathrooms, or garages where cooking fumes, steam, or exhaust might cause false alarms.

Figura 3: Shembample of ceiling installation in a living space.

Udhëzimet e montimit

1. Choose a suitable mounting location according to the recommended placement guidelines.
2. Use the mounting base as a template to mark the two drill holes on the ceiling or wall.
3. Hapni dy vrima në vendet e shënuara.
4. Vendosni tapat e spirancës në vrimat e shpuara.
5. Secure the mounting base to the ceiling/wall using the provided screws.
6. Align the smoke detector with the mounting base and twist clockwise until it locks into place.
7. Test the alarm immediately after installation.

Figura 4: Udhëzues instalimi hap pas hapi.

Udhëzimet e funksionimit

Aktivizimi fillestar

The smoke detector activates automatically when attached to the mounting base.

Testimi i alarmit

It is recommended to test your smoke alarm weekly to ensure its proper functioning. The detector also performs continuous self-checks.

1. Press and hold the Test/Silence button on the front of the alarm.
2. The alarm will sound three long beeps, followed by a pause, and then three more long beeps. The LED indicator will flash red.
3. Lëshojeni butonin. Alarmi do të ndalet.
4. If the alarm does not sound, refer to the "Troubleshooting" section.

Figure 5: Testing the alarm by pressing the test/silence button.

Heshtja e alarmit

If a non-emergency alarm occurs (e.g., from cooking fumes), you can temporarily silence the alarm.

1. Shtypni butonin Test/Heshtje një herë.
2. The alarm will enter a temporary silence mode for approximately 9 minutes. The red LED will flash every 5 seconds.
3. After the silence period, if smoke is still present, the alarm will reactivate.

Paralajmërim:

Do not silence the alarm in a real fire emergency. Evacuate immediately.

Mirëmbajtja

Pastrimi i alarmit tuaj të tymit

Clean your smoke alarm at least once a month to remove dust and debris. This helps maintain its sensitivity and prevents false alarms.

1. Gently vacuum the alarm's cover and vents using a soft brush attachment.
2. Do not use cleaning solvents or sprays directly on the alarm.

Informacion mbi baterinë

The X-Sense SD13 is equipped with a sealed 10-year lithium battery. This battery is designed to last the entire lifespan of the alarm and is not replaceable. This ensures uninterrupted protection 24/7.

When the battery is low, the alarm will chirp once every 60 seconds and the red LED will flash, indicating that the unit needs to be replaced. The detector constantly self-monitors and informs you in a timely manner about any errors or low battery levels for reliable use.

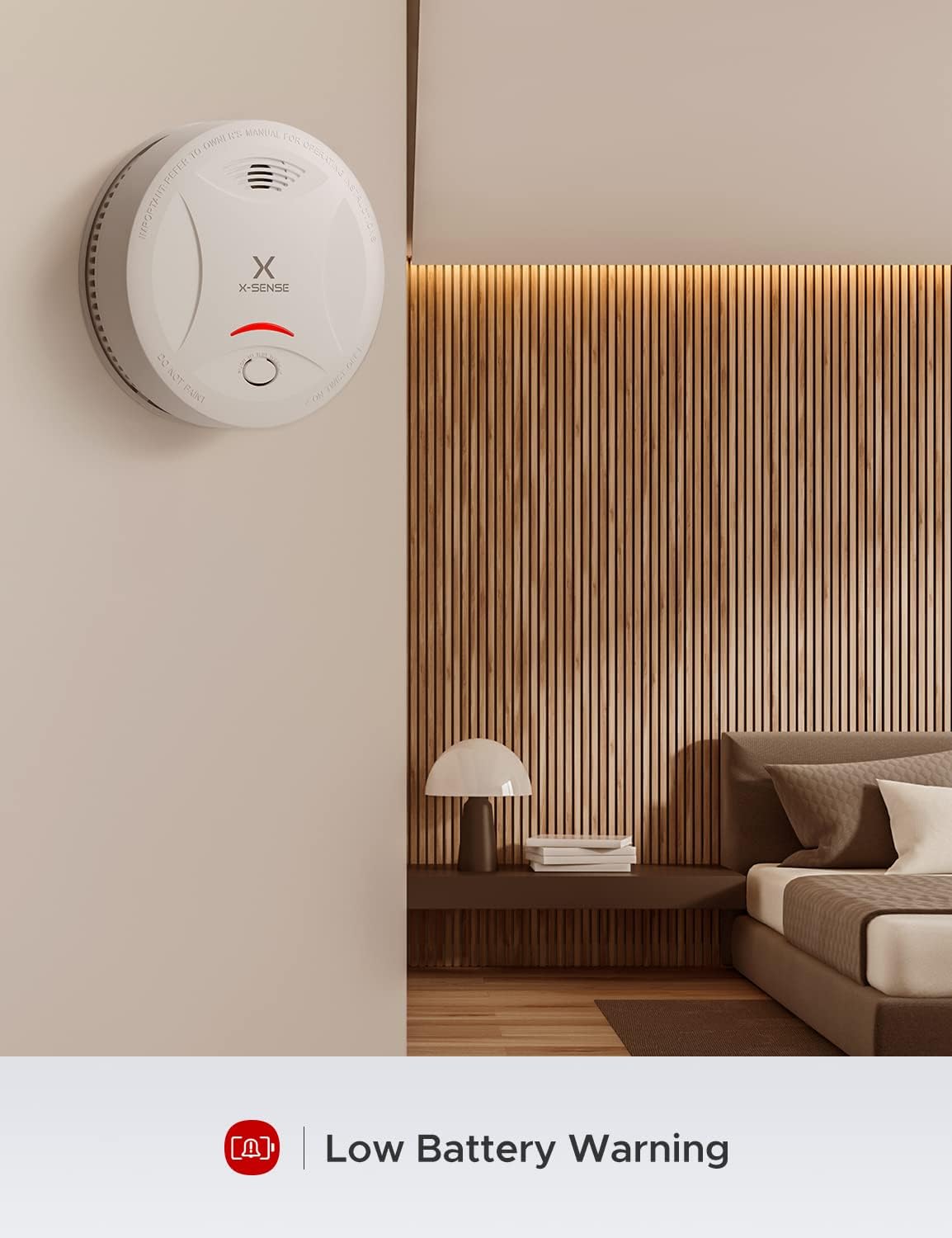

Figure 6: Low battery warning indicator.

Zgjidhja e problemeve

Specifikimet

Garancia dhe Mbështetja

The X-Sense SD13 smoke detector comes with a 5-year warranty.

For technical support or warranty claims, please contact X-Sense customer service. Our team is ready and willing to help you. Refer to the contact information provided in the original product packaging or on the official X-Sense webfaqe.
