1. Produkti i Mbaruarview
The Sonew Waterproof IP67 RFID Card Door Access Controller is a robust security system designed for various access control applications. It supports multiple methods for door access, including RFID cards, numeric codes, and a combination of both. This system is built with a durable, anti-vandal metal exterior and features an intelligent, luminous keypad for enhanced usability and security.
Karakteristikat kryesore përfshijnë:
- Multiple Access Options: Supports access via RFID cards, numeric codes, or card + code combinations.
- Kapacitet i lartë përdoruesi: Capable of supporting up to 3,000 users.
- User-Modifiable Passwords: Allows users to easily revise their door access passwords.
- Intelligent Luminous Keypad: Digital light illuminates upon operation and remains on for 30 seconds, improving visibility in low-light conditions.
- Anti-Submarine Back Function: Enhances security by allowing deletion of lost cards via the keypad, eliminating potential safety risks.

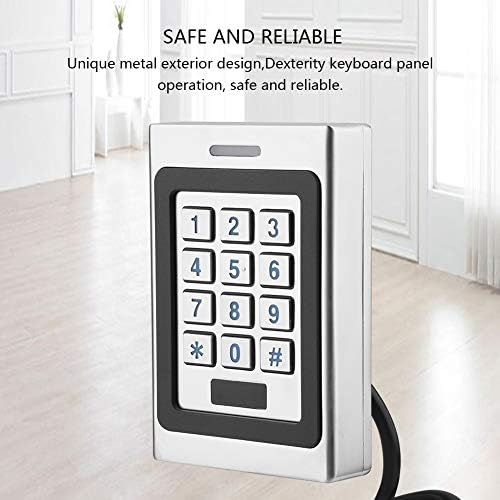

- Durable Metal Exterior: Constructed with strong Zinc Alloy Electroplated anti-vandal case, providing resistance against explosion and prying attempts.

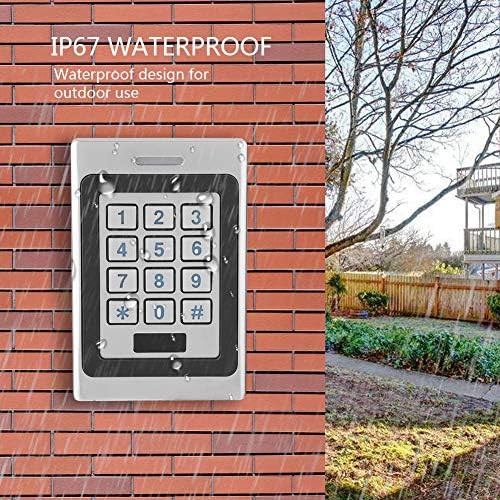

- Vlerësimi i papërshkueshëm nga uji IP67: Designed for outdoor use, offering protection against water ingress.
- Demolition Alarm: Features a built-in alarm sound buzzer that activates upon illegal dismantling.
- External Doorbell Support: Includes a bell button and interface for connecting an external doorbell.
Komponentët e produktit
2. Konfigurimi dhe instalimi
Proper installation is crucial for the optimal performance and security of your access controller. It is recommended to consult a qualified professional for complex wiring or if you are unfamiliar with electrical installations.
2.1 Montimi i njësisë
The access controller features a durable metal casing designed for both indoor and outdoor environments due to its IP67 waterproof rating.
- Choose a suitable mounting location near the door, ensuring it is within reach and has adequate space for wiring.
- Use the provided mounting hardware to securely attach the backplate of the unit to the wall.
- Ensure the unit is level and firmly fixed to prevent tamperingë.
2.2 Diagrama e instalimeve elektrike dhe lidhjet
The access controller operates on DC12V. Refer to the detailed wiring diagram in the included user manual for specific connections to your electric lock, power supply, and other accessories. Proper polarity and voltage are essential to prevent damage to the unit and connected devices.
3. Udhëzimet e funksionimit
3.1 Metodat e Qasjes
The system supports three primary methods for door access:
- Qasja në kartë: Present a registered RFID card to the reader.
- Code Access: Enter a valid numeric code on the keypad.
- Card + Code Access: Present a registered RFID card, then enter a valid numeric code.

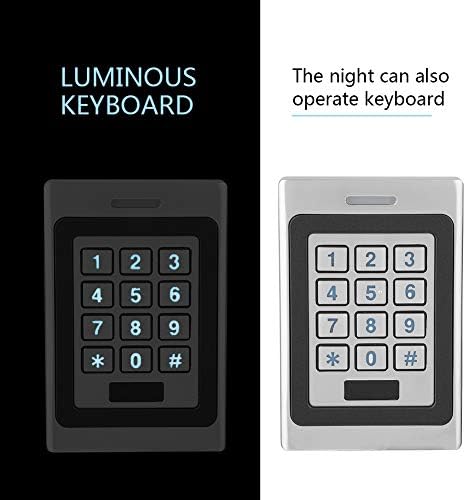

3.2 Keypad Illumination
The intelligent keypad illuminates when in use, providing clear visibility of the numbers even in dark conditions. The light remains active for 30 seconds after the last key press.
4. Mirëmbajtja
The Sonew access controller is designed for durability and requires minimal maintenance. Regular cleaning and occasional checks are recommended.
- Pastrimi: Fshijeni sipërfaqen me një të butë, damp leckë. Shmangni pastruesit ose tretësit gërryes që mund të dëmtojnë sipërfaqen ose tastierën.
- Inspektimi: Periodically check the wiring connections for any signs of wear or damage. Ensure the unit is securely mounted.
- Software/Firmware: There are no user-upgradable software or firmware components.
5. Troubleshooting
This section addresses common issues you might encounter with the access controller.
| Problem | Shkaku i mundshëm | Zgjidhje |
|---|---|---|
| Njësia nuk ndizet. | Nuk ka furnizim me energji elektrike ose instalime elektrike të gabuara. | Check power connections and ensure DC12V supply. Verify wiring according to the manual. |
| Door does not unlock with valid card/code. | Incorrect programming, faulty lock, or wiring issue. | Ensure card/code is correctly programmed. Check lock mechanism and its wiring. |
| Keypad not illuminating. | Unit not powered or internal fault. | Verify power supply. If power is present, contact support. |
| Alarmi bie papritur. | Tampering attempt or sensor malfunction. | Check for signs of tampering. If false alarm, consult the full manual for alarm settings. |
6. Specifikimet
| Veçori | Detaj |
|---|---|
| Markë | Sonew |
| Numri i modelit | Sonewb47gmi6kqh |
| ASIN | B07R42FHBN |
| Dimensionet e produktit | 4.33"Gj x 2.95"Gj x 0.87"L |
| Pesha e artikullit | 13.4 ons |
| Vëlltage | 12 volt |
| Ngjyra | Argjendi |
| Lloji i ekranit | Dixhitale |
| Vlerësimi i papërshkueshëm nga uji | IP67 |
| Kapaciteti i përdoruesit | 3000 Përdoruesit |
| Burimi i energjisë | DC12V (No batteries required for operation) |
7. Video zyrtare e produktit
Watch the official product video for a visual guide to the Sonew Door Access Controller's features and operation.
Video: Një mbiview of the Sonew Door Access Controller, showcasing its durable design, multiple access options (passwords and cards), and intelligent luminous keypad. This video is provided by the seller, Vertigo eu.
8. Garancia dhe Mbështetja
Specific warranty details and direct support contact information are not provided in the available product data. For warranty claims or technical assistance, please refer to the documentation included with your purchase or contact the seller directly through the platform where the product was acquired.
The manufacturer is Sonew.
