Hyrje
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Whirlpool 6.5 kg 5 Star Fully-Automatic Top Loading Washing Machine with In-Built Heater, Model Whitemagic Elite Plus. Please read this manual thoroughly before using the appliance and retain it for future reference.
Imazhi: Përpara view of the Whirlpool Whitemagic Elite Plus washing machine.
Konfigurimi dhe instalimi
Unpacking and Included Components
Carefully unpack your washing machine. Ensure all components are present and undamaged. The package should include:
- Washing machine unit
- Tubi i hyrjes së ujit
- Kupa e detergjentit
- Manuali i përdorimit me informacion garancie
- Zorra e kullimit me klamp
- Rat mesh
Vendosja dhe Dimensionet
This is a free-standing appliance. Choose a stable, level surface away from direct sunlight and heat sources. Ensure adequate space for ventilation and door opening.
| Dimensioni | Vlera |
|---|---|
| Thellësia (D) | 54 centimetra |
| Gjerësia (W) | 56 centimetra |
| Lartësia (H) | 93.5 centimetra |
| Pesha e artikullit | 28 kg |
Image: Diagram showing the dimensions of the washing machine.
Lidhja e ujit dhe energjisë
Connect the water inlet pipe to a cold water tap and the machine's inlet valve. Ensure the drain hose is properly secured to allow for water discharge. Plug the machine into a grounded electrical outlet. The machine operates on 230 Volts and has a wattage prej 360 Watts.
Udhëzimet e funksionimit
Paneli i Kontrollit Përfundoiview
The control panel allows you to select wash programs, adjust settings, and monitor the wash cycle. Refer to the detailed diagram below for button functions.

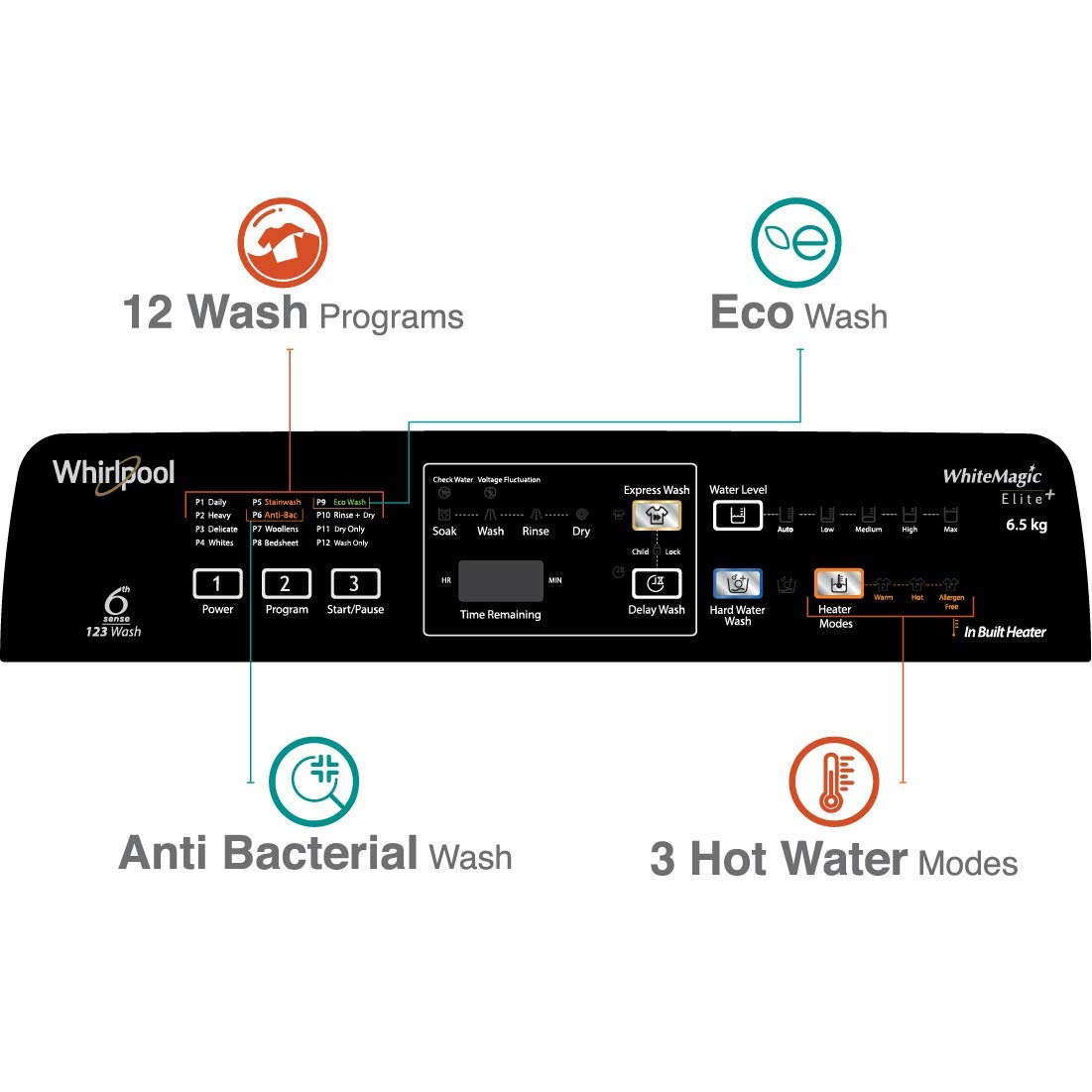

Imazh: Nga afër view of the washing machine's control panel with various settings.
Programet e larjes
Your washing machine features 12 distinct wash programs designed for various fabric types and soil levels. Select the appropriate program for your laundry load.
- Ditore: Për rrobat e përditshme.
- E rëndë: Për artikujt shumë të ndotur.
- Delikatet: Larje e butë për pëlhura delikate.
- Të bardhët: Optimized for white garments.
- Larje njollash: Specialized program for tough stains.
- Jehona: Cikël larjeje me efikasitet energjetik.
- Woollens: Gentle care for wool items.
- Bed Sheet: Ideal for bed linens.
- Shpëlarje + centrifugim: Vetëm për shpëlarje dhe centrifugim.
- Rrotullim: Vetëm për tjerrje.
- Vetëm lani: For washing without rinse or spin.
- Larje me ujë të fortë: Adapts operations for hard water conditions.
Image: Visual representation of the 12 available wash programs.
In-Built Heater Technology
The integrated heater provides three temperature levels (Warm, Hot, Allergen Free) up to 60°C, ensuring 99.9% germ and allergen removal. This feature is particularly effective for removing tough stains through a 6-step heating process.
Image: Illustration demonstrating the anti-bacterial wash cycle and stain removal capabilities with the in-built heater.
Image: Diagram illustrating the three hot water temperature modes: Warm, Hot, and Allergen Free.
Advanced Wash Technologies
- Spiro Wash Action: Provides superior load movement and better rollover for a more uniform and thorough wash, resulting in 20% better cleaning.
- Zero Pressure Fill Technology: Ensures the wash tub fills 50% faster even with water pressure as low as 0.017MPa, addressing low water pressure situations.
Mirëmbajtja
Pastrim i rregullt
To maintain optimal performance and hygiene, regularly clean the detergent dispenser, lint filter, and the washing machine drum. Wipe down the exterior with a soft, damp pëlhurë.
Rat Mesh Installation
The included rat mesh should be installed at the bottom of the machine to prevent rodents from entering and damaging internal components. Refer to the installation guide for specific instructions.
Imazh: Nga afër view of the washing machine's pulsator/agitator, which should be kept clean.
Zgjidhja e problemeve
If you encounter any issues with your washing machine, please refer to the troubleshooting section in the comprehensive user manual provided with the product. Common issues and their solutions are typically covered there. For persistent problems, contact customer support.
- Makina nuk ndizet: Check power connection, water supply, and ensure the lid is properly closed.
- Rrjedhja e ujit: Verify hose connections are secure and not damaged.
- Unusual noise/vibration: Ensure the machine is level and laundry is evenly distributed.
- Rezultate të dobëta larjeje: Check detergent quantity, water temperature, and selected wash program.
Specifikimet Teknike
| Veçori | Specifikimi |
|---|---|
| Model | Whitemagic Elite Plus |
| Kapaciteti | 6.5 kilogramë |
| Efikasiteti i Energjisë | Vlerësimi me 5 yje |
| Wattage | 360 Watts |
| Numri i cikleve të larjes | 12 |
| Materiali i tamburit të pajisjes së lavanderisë | Çelik inox |
| Mënyra e funksionimit | Plotësisht Automatik |
| Niveli i Zhurmës (Larje) | 63 dB |
| Niveli i Zhurmës (Rrotullimi) | 72 dB |
| Lloji i instalimit | Qëndrimi i lirë |
| Materiali | Çelik inox |
| Vëlltage | 230 volt |
| Shpejtësia maksimale e rrotullimit | 740 rpm |
| Hyni në vendndodhjen | Ngarkesa kryesore |
| Dimensionet e produktit (LxWxH) | 56 x 54 x 93.5 centimetra |
| Pesha e artikullit | 28 kg |
| Komponentët e përfshirë | Washing machine, Water inlet pipe, detergent cup, user manual with warranty, drain hose with clamp, rat mesh |
Garancia dhe Mbështetja
Informacioni i Garancisë
Lavatriçja juaj Whirlpool vjen me një garanci të plotë:
- Garancia e produktit: 2 vjet
- Garancia e motorrit: 10 vjet
Ju lutemi ruani faturën e blerjes dhe kartën e garancisë për çdo ankesë.
Mbështetja e klientit
For service, technical assistance, or inquiries, please contact Whirlpool customer support:
- Email: helpdeskindia@whirlpool.com
- Pa pagesë: 1800 208 1800
- Adresa e prodhuesit: Whirlpool of India Ltd. Plot No. A-4, MIDC Ranjangaon, Taluka Shirur, Dist: Pune, Maharashtra 412220, India
Image: Illustration depicting Whirlpool service staff following safety protocols for customer care.
