Ledvion LV10002 Universal LED Dimmer 5-600W Instruction Manual

1. Hyrje

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Ledvion LV10002 Universal LED Dimmer. This trailing edge dimmer is designed for smooth and flicker-free dimming of various LED lamps from 0% to 100%, supporting a load range of 5W to 600W. Its integrated electronics eliminate buzzing noise, ensuring a quiet operation.

2. Informacion mbi sigurinë

Ju lutemi lexoni me kujdes këto udhëzime sigurie para instalimit dhe përdorimit. Mosndjekja e këtyre udhëzimeve mund të rezultojë në goditje elektrike, zjarr ose rreziqe të tjera.

• Siguria elektrike: Instalimi duhet të kryhet nga një elektricist i kualifikuar në përputhje me rregulloret lokale të instalimeve elektrike.
• Shkëputja e energjisë: Always disconnect power at the main circuit breaker before installing or servicing the dimmer.
• Përputhshmëria: Ensure the dimmer's load capacity (5-600W) is suitable for your LED lighting system. This dimmer is a trailing edge (phase cut) type.
• Vetëm për përdorim të brendshëm: This product is designed for indoor use in dry locations.
• Fëmijët: Mbajeni jashtë mundësive të fëmijëve.

3. Produkti i Mbaruarview

3.1 Karakteristikat kryesore

• Universal compatibility with various LED lamps.
• Smooth dimming from 0% to 100%.
• Wide load range: 5W to 600W.
• Trailing edge (phase cut) technology for optimal LED performance.
• Flicker-free and noise-free operation due to integrated electronics.
• Two-way switch function for multi-location control.
• Compact design for easy flush mounting.

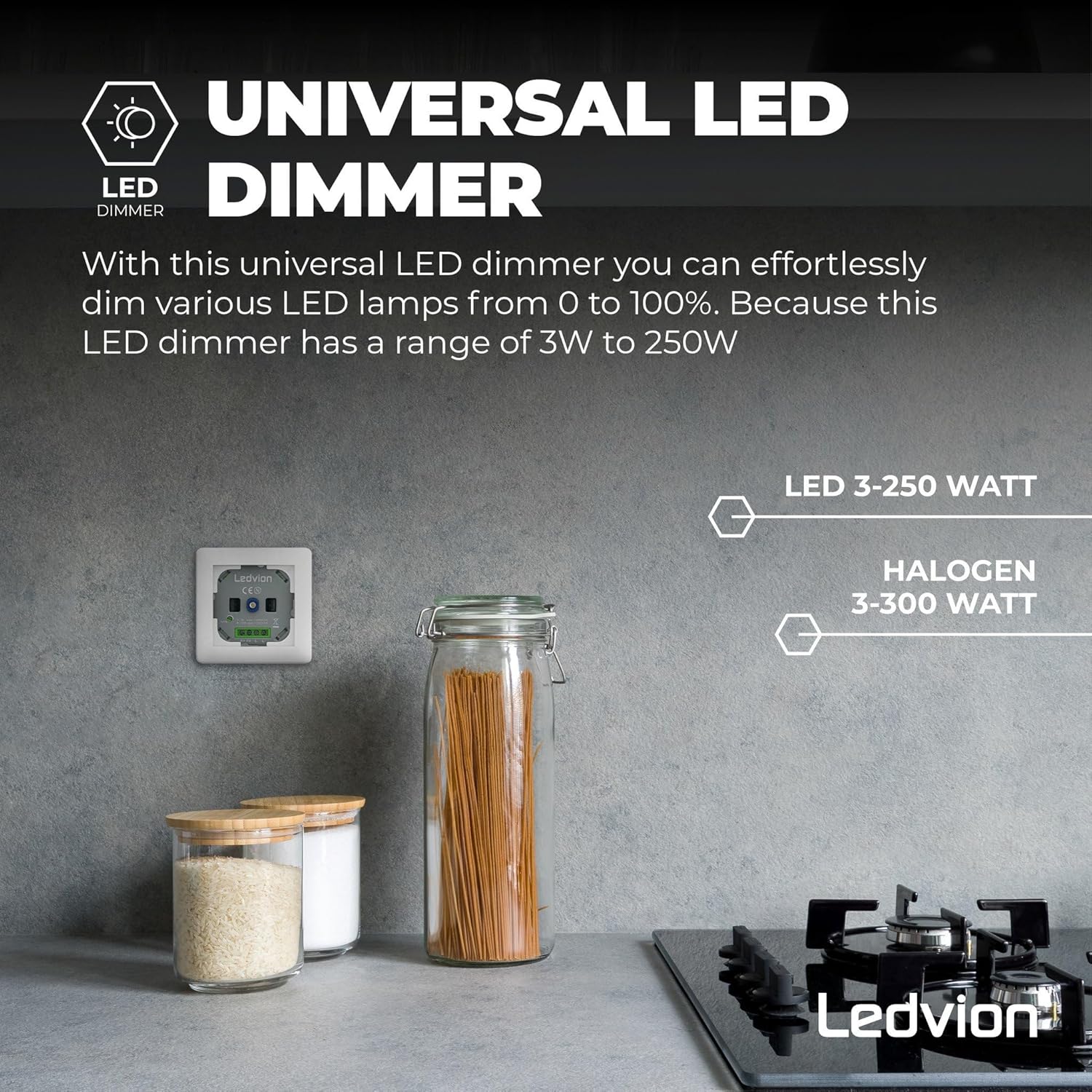

Imazhi 3.1: Mbiview of the Ledvion Universal LED Dimmer highlighting its universal compatibility and load ranges for LED (3-250W) and Halogen (3-300W) lamps. Note: The dimmer's overall capacity is 5-600W.

Imazhi 3.2: The Ledvion dimmer, emphasizing its trailing edge technology for silent and flicker-free performance, showing the SKU LV10002 and load specifications.

3.2 Çfarë ka në kuti

Imazhi 3.3: Contents of the product package, including the Ledvion dimmer unit, connecting pieces, and the instruction manual.

• 1x Ledvion LV10002 Universal LED Dimmer
• 3x Connecting pieces (nuts/washers)
• 1x Manual Udhëzues

4. Konfigurimi dhe instalimi

E rëndësishme: Ensure the power supply is disconnected before beginning installation. If you are unsure about electrical wiring, consult a qualified electrician.

4.1 Lidhja e instalimeve elektrike

The Ledvion dimmer supports both one-way and two-way switch configurations. The two-way switch function allows you to control the same LED lamp from multiple locations.

Imazhi 4.1: Detailed wiring diagrams illustrating both one-way and two-way connection methods for the dimmer. Follow these diagrams carefully for correct installation.

• One-Way Connection: Connect the live (L) wire to the dimmer's 'L' terminal and the switched live wire to the 'L1' or 'L2' terminal, then to the lamp.
• Two-Way Connection: For two-way switching, connect the live (L) wire to the dimmer's 'L' terminal. Connect the two-way switch wires to 'L1' and 'L2' terminals, and then connect the lamp to the appropriate switched live output. A neutral (N) connection is typically required for the lamp.
• Use the quick-connect terminals for secure wiring.

4.2 Instalimi fizik

Imazhi 4.2: A hand installing the Ledvion dimmer unit into a standard wall-mounted electrical box, demonstrating the compact size and ease of fitting.

1. After wiring, carefully place the dimmer unit into the wall box.
2. Secure the dimmer using the provided connecting pieces (screws/nuts) to ensure it is firmly seated.
3. Attach the cover plate (not included) over the dimmer mechanism.
4. Rivendosni energjinë në ndërprerësin kryesor të qarkut.

5. Udhëzimet e funksionimit

The Ledvion LV10002 dimmer operates manually via its rotary knob.

• Aktivizimi/Fikja: Press the rotary knob to switch the connected lights on or off.
• dimming: Rotate the knob clockwise to increase brightness and counter-clockwise to decrease brightness.
• Minimum Brightness Adjustment: The dimmer features a 'MIN' adjustment screw (visible on the dimmer unit itself, Image 3.2). This allows you to set the lowest dimming level to prevent flickering at very low light outputs, which can occur with some LED lamps. Use a small screwdriver to adjust this screw until stable dimming is achieved at the lowest desired level.

6. Mirëmbajtja

The Ledvion LED Dimmer requires minimal maintenance.

• Pastrimi: Ensure power is off before cleaning. Wipe the surface with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Inspektimi: Periodically check for any loose connections or signs of damage. If any issues are found, disconnect power and consult a qualified electrician.

7. Troubleshooting

If you experience issues with your Ledvion LED Dimmer, refer to the following common problems and solutions:

8. Specifikimet

Imazhi 8.1: Technical drawing showing the dimensions of the Ledvion LV10002 dimmer, measuring 70mm x 70mm.

9. Garancia

The Ledvion LV10002 Universal LED Dimmer comes with a 2 vit garanci from the date of purchase. This warranty covers defects in materials and workmanship under normal use. The product is manufactured to high-quality standards and complies with various quality marks, including Intertek, CE, RoHS, and REACH.

The warranty does not cover damage caused by improper installation, misuse, unauthorized modifications, or natural disasters. Please retain your proof of purchase for warranty claims.

10. Mbështetja dhe Informacioni i Kontaktit

For technical support, warranty claims, or further assistance, please contact Ledvion customer service. Refer to the contact information provided with your purchase or visit the official Ledvion webfaqe.

Prodhuesi: Ledvion

Webfaqe: Ledvion Official Store (via Amazon)
