Atmosphera Jily Pendant Lamp D48 cm User Manual

1. Hyrje dhe Informacioni i Sigurisë

Thank you for choosing the Atmosphera Jily Pendant LampKy manual ofron informacion thelbësor për instalimin, funksionimin dhe mirëmbajtjen e sigurt të pajisjes suaj të re të ndriçimit. Ju lutemi lexoni me kujdes këto udhëzime para instalimit dhe ruajini ato për referencë në të ardhmen.

Paralajmërime të rëndësishme të sigurisë:

• Gjithmonë shkëputeni furnizimin me energji te çelësi kryesor i qarkut përpara se të provoni ndonjë instalim, mirëmbajtje ose zëvendësim të llambës.
• Installation must be performed by a qualified electrician or a competent person in accordance with local electrical codes.
• Securely fasten the pendant lamp to the ceiling using appropriate and robust mounting hardware suitable for the ceiling material.
• Shmangni ekspozimin e lamp to moisture or direct water contact to prevent damage and electrical hazards.
• Mos e tejkaloni vat maksimaletage specified for the light bulb (40W).
• Ensure the light bulb is fully cooled before attempting to replace it.

2. Çfarë ka në kuti

Carefully unpack the contents and ensure all items are present and undamaged. If any parts are missing or damaged, do not proceed with installation and contact customer support.

• 1 x Jily Pendant Lamp Assembly (including shade, cable, and ceiling canopy)

Note: Light bulb (E27, max 40W) and mounting hardware for the ceiling are not included and must be purchased separately.

3. Konfigurimi dhe instalimi

This section outlines the general steps for installing your pendant lamp. Always refer to the safety warnings in Section 1 before beginning.

Mjetet e kërkuara (Nuk përfshihen):

• Kaçavidë (Phillips dhe/ose me kokë të sheshtë)
• Strippers teli
• Drill (if required for ceiling mounting)
• Laps
• Shkallë
• Vëlltage Testues

Hapat e instalimit:

1. Fikni energjinë: Locate the main circuit breaker and turn off the power to the circuit where you will be installing the lamp. Verify the power is off using a voltage testues.
2. Përgatitja e tavanit: If replacing an existing fixture, carefully remove it. Ensure the ceiling junction box is secure and capable of supporting the lamp's weight (approximately 1.08 kg).
3. Mount Ceiling Canopy Bracket: Attach the mounting bracket (usually included with the lamp, inside the canopy) to the ceiling junction box using appropriate screws. Ensure it is firmly secured.
4. Rregulloni gjatësinë e kabllit: The cable length is approximately 90 cm. Adjust the cable to your desired hanging height by feeding it through the ceiling canopy. Secure the cable at the desired length using the provided strain relief mechanism within the canopy.
5. Lidhjet me tela: Connect the electrical wires from the lamp to the corresponding wires from the ceiling. Typically, connect live (brown/black) to live, neutral (blue) to neutral, and ground (green/yellow) to ground. Use appropriate wire connectors. Ensure all connections are secure.
6. Bashkangjitni tendën e tavanit: Carefully push the ceiling canopy up against the ceiling, covering the wiring. Secure it to the mounting bracket using the screws provided.
7. Instaloni llambën: Screw an E27 base light bulb (max 40W, not included) into the lamp mbajtëse. Mos e shtrëngoni shumë.
8. Rivendosni energjinë: Kthejeni sërish rrymën në ndërprerësin kryesor.
9. Testi Lamp: Turn on the light switch to ensure the lamp funksionon si duhet.

Image: Detail of the ceiling canopy, showing the connection point to the ceiling.

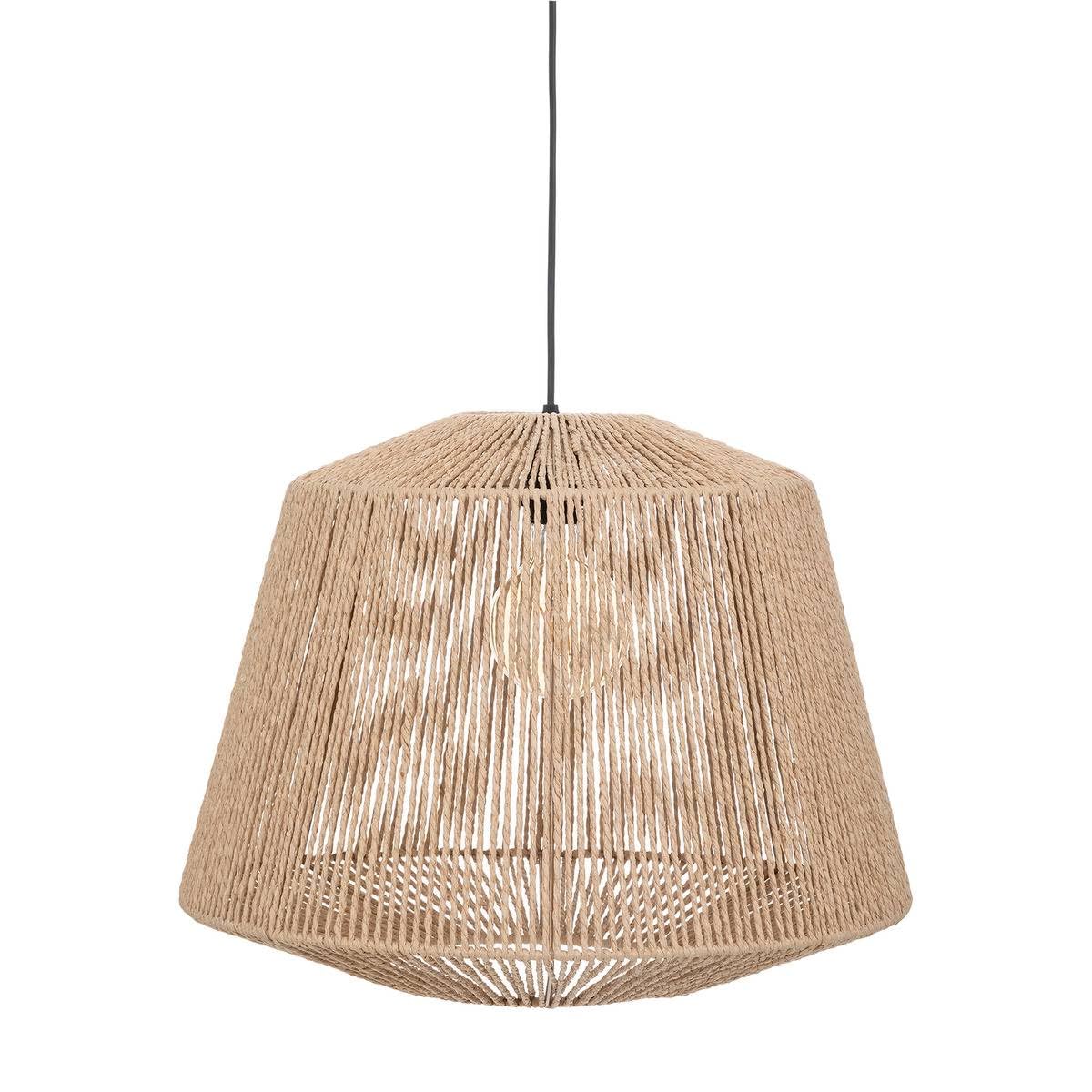

Image: The Jily pendant lamp, shfaqjeasing its full design and illuminated bulb.

4. Udhëzimet e funksionimit

The Atmosphera Jily Pendant Lamp is designed for simple operation.

• Aktivizimi/Fikja: Kontrolloni lamp using a standard wall light switch connected to the circuit.
• Llambë: This fixture uses one E27 base light bulb. For optimal performance and light quality, choose a bulb that suits your preference (e.g., LED, incandescent, warm white).

Image: The Jily pendant lamp installed in a living space, demonstrating its aesthetic and light output.

5. Mirëmbajtja

Regular maintenance will help preserve the appearance and functionality of your pendant lamp.

Pastrimi:

• Pastrim pluhuri: Regularly use a soft, dry duster or a microfiber cloth to gently remove dust from the lampshade and other surfaces.
• Pastrimi i pikave: Për shenja kokëforta, lyejeni lehtëampen a cloth with water (do not use harsh chemicals or abrasive cleaners) and gently wipe the affected area. Avoid excessive moisture, especially on the paper shade.

Ndërrimi i llambës:

1. Fikni energjinë: Always turn off the power to the lamp at the main circuit breaker and the wall switch before replacing the bulb.
2. Lëreni të ftohet: Ensure the old bulb has completely cooled down before touching it.
3. Hiq llambën e vjetër: Hiqeni me kujdes llambën e vjetër E27 në kahun e kundërt të akrepave të orës.
4. Instaloni llambën e re: Screw in a new E27 bulb (max 40W) clockwise until snug. Do not overtighten.
5. Rivendosni energjinë: Turn the power back on and test the new bulb.

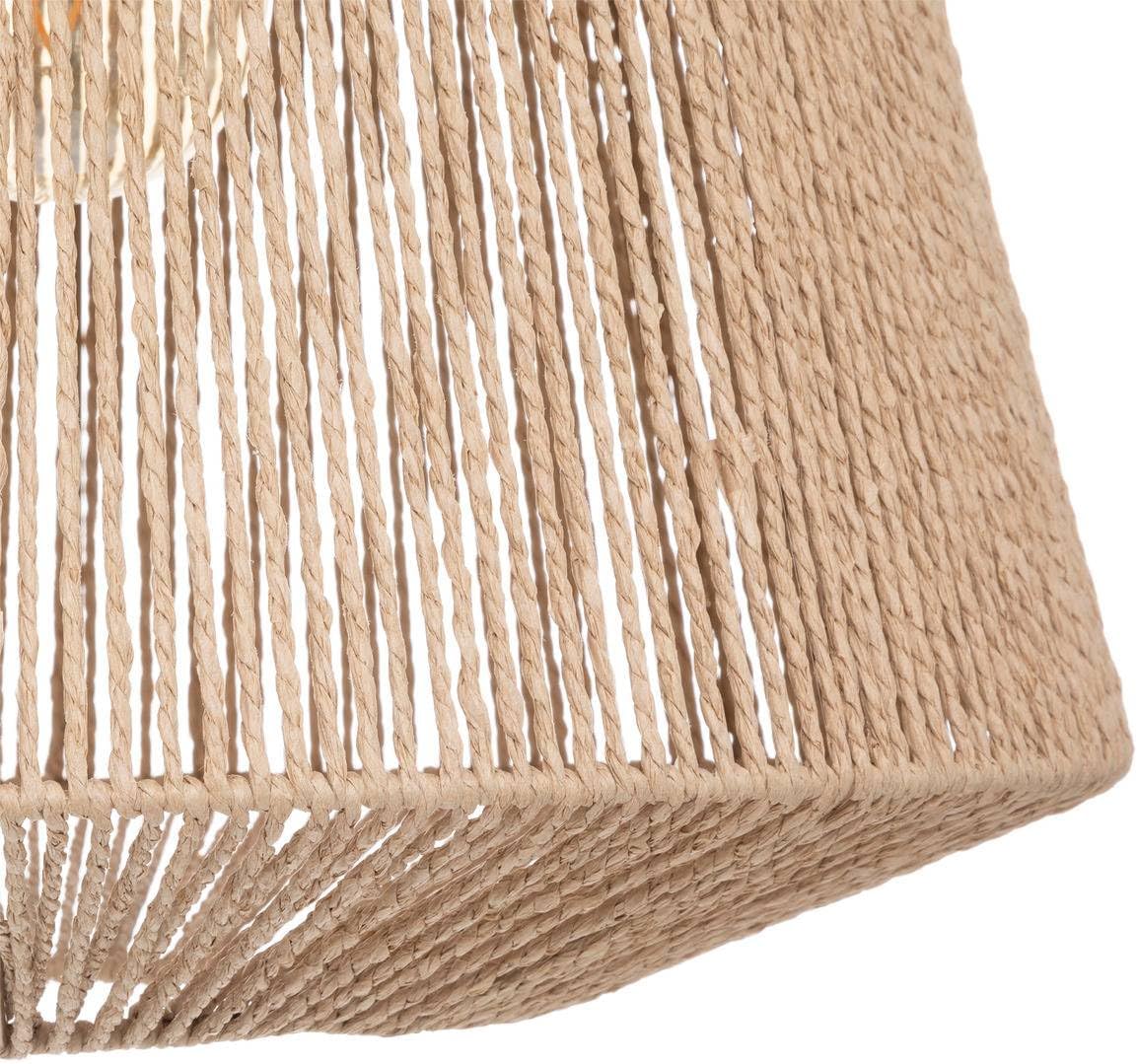

Imazh: I detajuar view of the paper and iron lampshade material.

6. Troubleshooting

If you encounter issues with your pendant lamp, referojuni problemeve dhe zgjidhjeve të zakonshme të mëposhtme:

If the problem persists after attempting these solutions, please contact a qualified electrician or customer support.

7. Specifikimet

8. Garancia dhe Mbështetja

Specific warranty information for the Atmosphera Jily Pendant Lamp may vary by region and retailer. Please refer to your purchase documentation or contact the retailer where you purchased the product for details regarding warranty coverage.

For technical support, missing parts, or further assistance, please contact the customer service department of ATMOSPHERA CREATEUR D'INTERIEUR or your retailer.

When contacting support, please have your model name (Jily) and model number (3560232579516) available.
