1. Informacion mbi sigurinë
Ju lutemi lexoni me kujdes këto udhëzime para instalimit dhe përdorimit. Ruajeni këtë manual për referencë në të ardhmen.
- Siguria elektrike: Installation must be performed by a qualified electrician in accordance with local wiring regulations. Ensure the power supply is disconnected before installation or maintenance.
- Mjedisi operativ: This floodlight is designed for outdoor use with an IP65 rating, making it dust and jet-proof. It operates reliably in temperatures ranging from -20°C to 50°C.
- Shpërndarja e nxehtësisë: The floodlight features a robust heatsink to prevent LED chips from overheating during prolonged use. Do not obstruct the heatsink.
- Dëmi: Do not use the product if the cable or housing is damaged.
2. Produkti i Mbaruarview
The Ledvion 100W LED Floodlight provides powerful and efficient illumination for various outdoor applications. Its durable construction and high lumen output make it suitable for work lighting, building illumination, and general outdoor use.

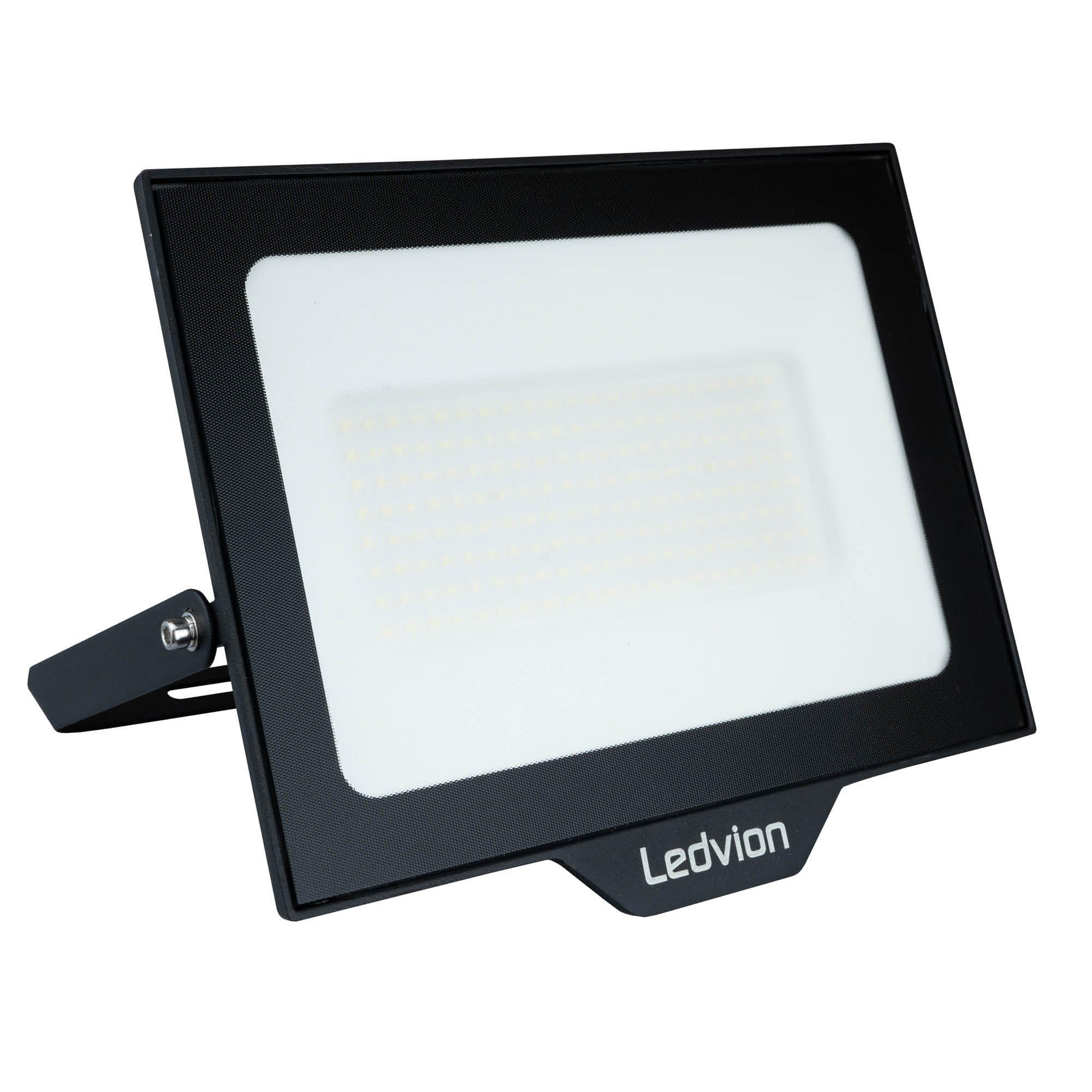

Image 2.1: Ledvion 100W LED Floodlight, front view.
Karakteristikat kryesore:
- Prodhimi i lartë i lumenit: 12000 Lumen for bright illumination.
- Temperatura e ngjyrave: 6000K (Cool White) for clear, bright light.
- Ndërtim i qëndrueshëm: Powder-coated aluminum surface for corrosion protection.
- Rezistent ndaj motit: IP65 rated for dust and jet-proof performance.
- Ftohje efikase: Integrated heatsink for optimal LED chip performance and longevity.
- Instalim i lehtë: Features a movable bracket for flexible mounting.
Image 2.2: Features of the Ledvion Floodlight, highlighting slim design and high lumen output.
Image 2.3: Illustration of the LED chips and heatsink for efficient heat dissipation.
Image 2.4: The floodlight's IP65 rating, indicating resistance to water jets and dust.
3. Konfigurimi
3.1 Mounting the Floodlight
The floodlight comes with a movable bracket for easy installation. It can be securely mounted to a wall or other suitable surface.
- Choose a suitable mounting location that can support the weight of the floodlight and provides the desired illumination angle.
- Use the bracket as a template to mark the drilling points on the mounting surface.
- Drill holes and insert appropriate wall plugs (not included, select based on wall material).
- Attach the bracket to the surface using screws, ensuring it is firmly secured.
- Mount the floodlight onto the bracket and adjust the angle as needed. Tighten the screws to fix the desired position.

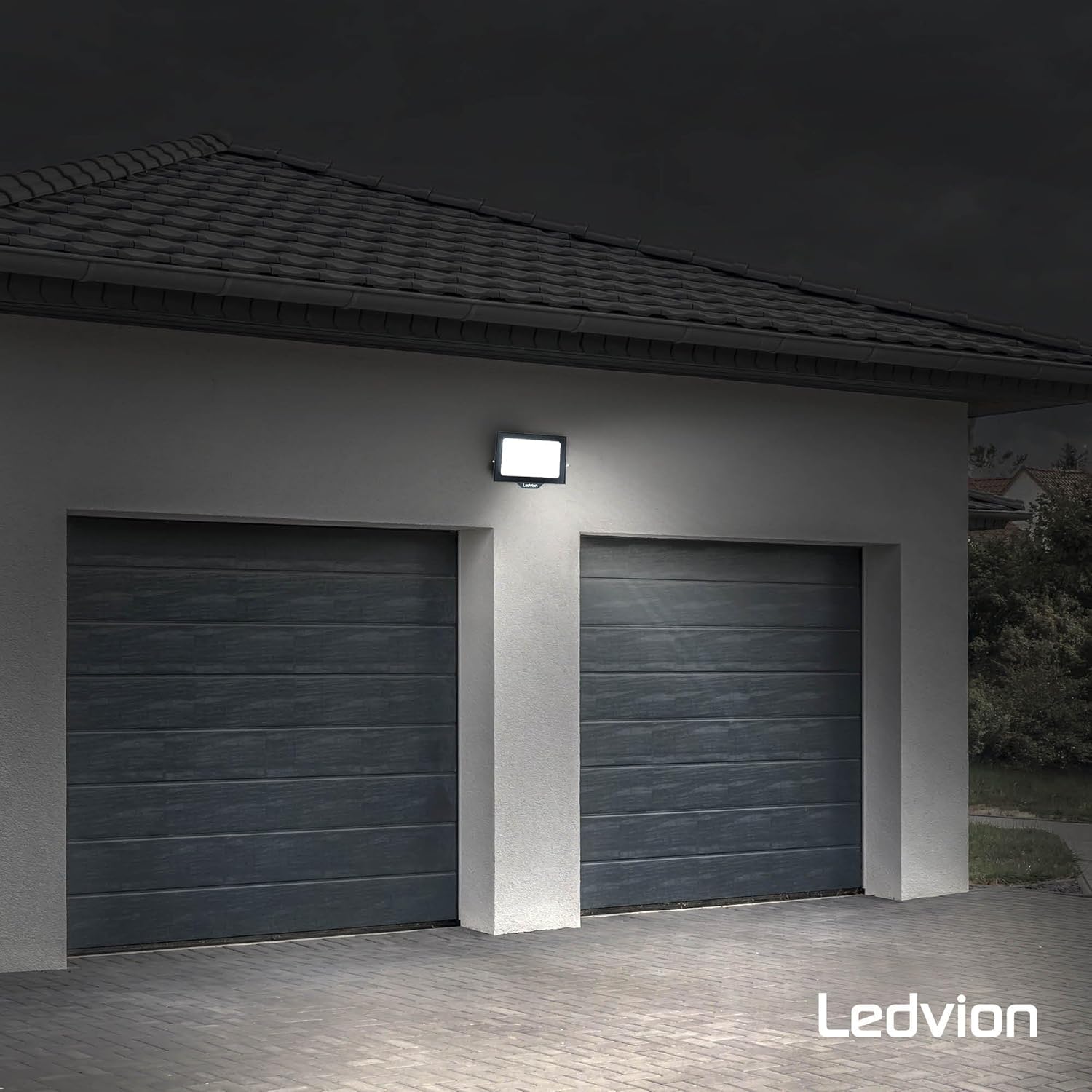

Imazhi 3.1: P.sh.ample of the floodlight installed on a garage wall.
Image 3.2: Dimensions of the mounting bracket and the 0.5m cable length.
3.2 Lidhja elektrike
The floodlight is supplied with a 0.5-meter cable and may include a quick connector for simplified wiring. Ensure the power supply is off before making any connections.
- Connect the floodlight's cable to your main power supply (230V AC).
- Ensure correct polarity: Brown wire for Live (L), Blue wire for Neutral (N), and Yellow/Green wire for Earth (PE).
- If a quick connector is provided, follow its specific instructions for secure and waterproof connection. If not, use appropriate waterproof junction boxes and connectors for outdoor wiring.
- Verify all connections are secure and properly insulated to prevent short circuits or electrical hazards.
3.3 Optional Motion Sensor
An optional motion sensor (sold separately) can be connected to the floodlight to enable automatic activation upon detecting movement.
Image 3.3: The floodlight shown with an optional motion sensor attached.
Refer to the motion sensor's instruction manual for specific wiring and configuration details.
4. Operative
Once properly installed and connected to the power supply, the Ledvion LED Floodlight operates by simply switching on the connected power circuit. The floodlight will provide instant, full brightness.
- Ndezja/Fikja e energjisë: Control the floodlight using the wall switch or circuit breaker connected to its power supply.
- Prodhimi i dritës: The 100W floodlight emits 12000 lumens of 6000K cool white light.
5. Mirëmbajtja
The Ledvion LED Floodlight is designed for minimal maintenance due to its durable construction and long-life LED components.
- Pastrimi: Periodically clean the floodlight's surface and lens with a soft, damp cloth to remove dirt and debris. Do not use abrasive cleaners or solvents. Ensure the power is off before cleaning.
- Inspektimi: Regularly inspect the cable and housing for any signs of damage. If damage is found, disconnect power immediately and have it inspected by a qualified professional.
- Jetëgjatësia: The LED chips have an expected lifespan of over 60,000 operating hours.
6. Troubleshooting
If you encounter issues with your Ledvion LED Floodlight, refer to the following common troubleshooting steps:
| Problem | Shkaku i mundshëm | Zgjidhje |
|---|---|---|
| Drita e projektorit nuk ndizet. | Nuk ka furnizim me energji elektrike. Lidhja e lirshme e kabllove. Faulty switch/circuit breaker. | Check if the power supply is active. Verifikoni që të gjitha lidhjet elektrike janë të sigurta (sigurohuni që së pari të keni shkëputur energjinë elektrike). Test the switch or circuit breaker. |
| Drita është e zbehtë ose dridhet. | Fuqia e pamjaftueshme. Lidhje e lirshme. Temperaturë ekstreme. | Siguroni furnizim të qëndrueshëm me energji 230 V. Kontrolloni lidhjet e instalimeve elektrike. Verify operating within -20°C to 50°C range. |
| Floodlight turns on/off unexpectedly (if motion sensor is installed). | Motion sensor sensitivity too high. Ndërhyrja mjedisore. | Adjust motion sensor settings (refer to sensor manual). Check for moving objects or heat sources in sensor's detection zone. |
If the problem persists after attempting these solutions, please contact Ledvion customer support.
7. Specifikimet
Technical specifications for the Ledvion 100W LED Floodlight (Model LV50010_1):
| Parametri | Vlera |
|---|---|
| Markë | Ledvion |
| Numri i modelit | LV50010_1 |
| ASIN | B0CP65PPLD |
| Konsumi i energjisë | 100 vat |
| Fluksi i ndritshëm | 12000 lumen |
| Temperatura e ngjyrave | 6000 Kelvin (e bardhë e ftohtë) |
| Vëlltage | 230 Volt |
| Burimi i energjisë | Përshtatës AC |
| Lloji i burimit të dritës | Diodë që lëshon dritë (LED) |
| Materiali | Alumini |
| Lloji i përfundimit | E veshur me pluhur |
| Vlerësimi IP | IP65 (Dust and Jet-proof) |
| Dimensionet e produktit (J x P x H) | 28L x 24W x 5H cm |
| Pesha e artikullit | 1140 Gramë (1.14 kg) |
| Karakteristika të veçanta | Shock-resistant, corrosion-resistant |
| Gjatësia e Kabllit | 0.5 metra |
Image 7.1: Detailed dimensions of the Ledvion LED Floodlight.
8. Garancia
This Ledvion LED Floodlight comes with a 5 vit garanci nga data e blerjes. Kjo garanci mbulon defektet e prodhimit dhe defektet materiale në kushte normale përdorimi.
The warranty does not cover damage caused by improper installation, misuse, accidents, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.
9. Mbështetje
For technical assistance, warranty claims, or any questions regarding your Ledvion LED Floodlight, please contact Ledvion customer support.
You can find contact information on the official Ledvion webnë faqen e internetit ose përmes shitësit tuaj me pakicë.
