Garvee Outdoor Handrail for 1-4 Steps - Installation and Maintenance Manual

Hyrje

The Garvee Outdoor Handrail is designed to provide stable and reliable support for navigating 1 to 4 steps. Its robust construction and thoughtful design enhance safety and accessibility for various users, including the elderly, children, pregnant women, individuals with disabilities, and those recovering from surgery. This manual provides essential information for proper installation, use, and maintenance of your handrail.

The handrail features a comfortable round grip and an integrated end design to prevent water ingress, thereby reducing the risk of rust. The sleek black powder-coated surface is durable and easy to clean. A new joint design contributes to overall structural stability, and secure hardware connections protect against sharp metal edges, ensuring a safer user experience.

Përmbajtja e paketës

Before beginning installation, please verify that all components listed below are present in your package. If any parts are missing or damaged, please contact customer support.

Imazhi: All components included in the Garvee Outdoor Handrail package. This includes the upper and lower posts, top rail, middle rail, and various mounting hardware.

• Kolonë vertikale: 2 pieces (Each consists of an upper and lower post, total 2 assembled columns)
• Hekurudha e sipërme: 1 piece (Approx. 51.18 inches / 130 cm length)
• Middle Rail (Cross Bar): 1 piece (Approx. 38.58 inches / 98 cm length)
• Bore Bit: 1 copë
• Expansion Hexagon Screws (for concrete): 8 copë
• Decorative Cover: 4 copë
• M8 Phillips Screws: 2 copë
• Column Mounting Feet: 2 copë
• Panel Mounting Feet: 2 copë
• Mounting Foot Screws: 16 copë
• Expansion Screws (for wood): 8 copë

Specifikimet

Imazhi: Detailed dimensions and adjustable height range of the handrail, suitable for 0-4 steps.

Konfigurimi dhe instalimi

The Garvee Outdoor Handrail is designed for straightforward installation on various surfaces, including concrete, wood, and brick steps. The adjustable design allows it to be adapted for 1 to 4 steps. Ensure the two support posts are vertical to the ground by adjusting the central rail.

Hapat e instalimit:

1. Shënoni pozicionin: Place the handrail in the desired location on your steps. Use a pencil or marker to accurately mark the positions for drilling the mounting holes through the base plates.
2. Vrimat e shpimit: Using the provided bore bit and an impact drill, carefully drill holes at the marked positions. Ensure the depth is appropriate for the expansion screws.
3. Instalimi i vidhave: Insert the appropriate expansion screws (for concrete or wood) into the drilled holes. Secure the handrail base plates firmly using the mounting foot screws.
4. Place Base Trim: Once the handrail is securely fastened, place the decorative covers over the base plates to conceal the fasteners and provide a finished look.

Imazhi: Step-by-step visual guide for installing the handrail.

This handrail is ideal for locations where direct attachment to a wall or existing structure is not possible, providing a freestanding and secure solution.

Imazhi: Examples of the Garvee handrail installed on outdoor porches, home entrances, garden steps, and indoor stairs.

Udhëzimet e funksionimit

Once installed, the Garvee Outdoor Handrail provides a stable and secure grip for ascending and descending steps. Always use the handrail for support to prevent falls and ensure safe movement. The round design offers a comfortable grip for users of all ages.

Mirëmbajtja

To ensure the longevity and appearance of your Garvee Outdoor Handrail, follow these simple maintenance guidelines:

• Pastrimi: The sleek black powder-coated surface is easy to clean. Simply wipe it down with a damp cloth and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Parandalimi i ndryshkut: The integrated end design helps prevent water ingress and rust. Periodically inspect the handrail for any signs of wear or damage to the coating that could expose the metal to moisture. Address any chips or scratches promptly to maintain rust protection.
• Kontrolli i harduerit: Regularly check all screws and connections to ensure they remain tight and secure. Tighten any loose fasteners to maintain the handrail's stability.

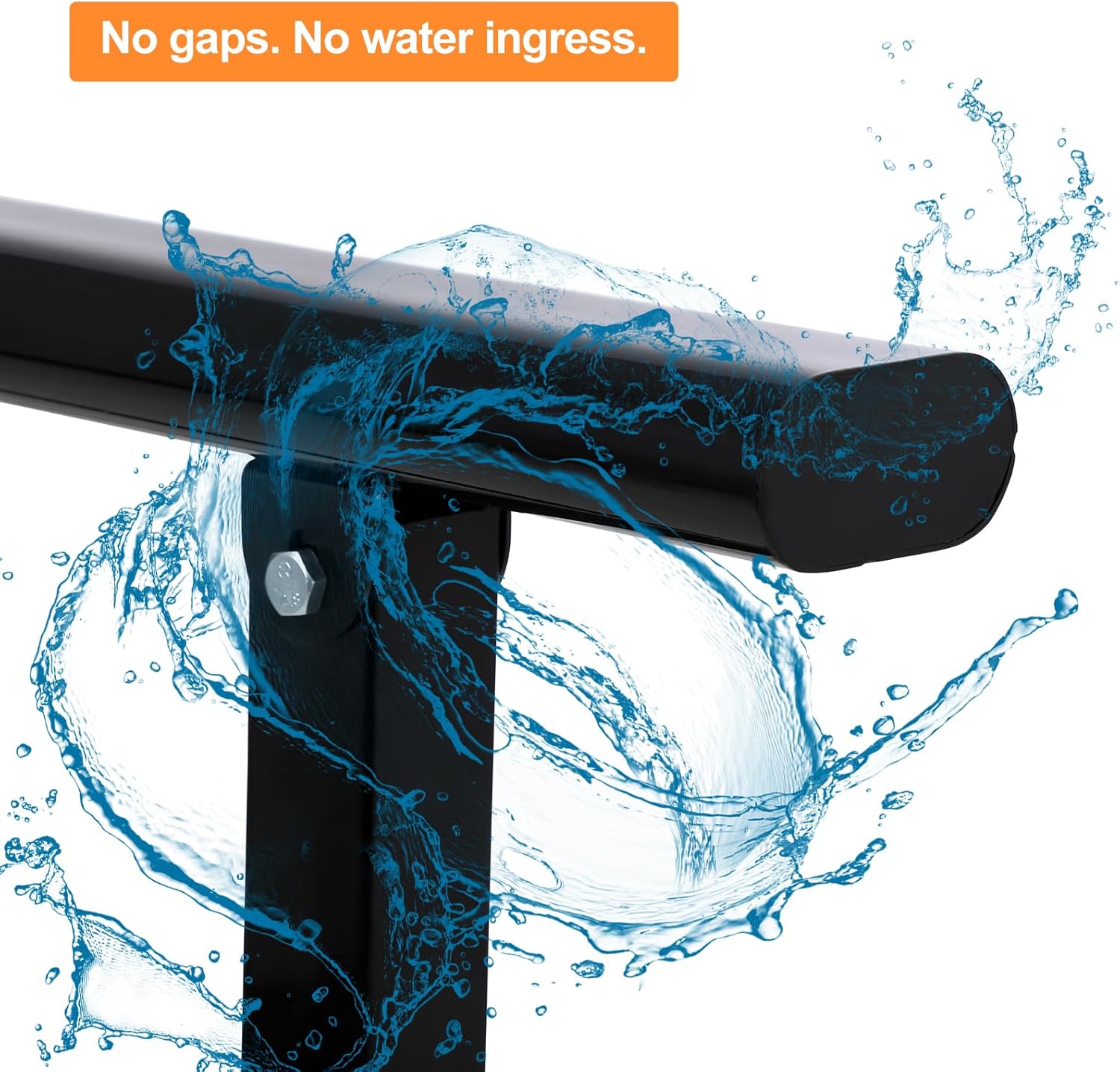

Imazhi: The integrated design of the handrail prevents water ingress, protecting against rust.

Imazhi: Comparison illustrating the superior powder-coated finish of the Garvee handrail versus a standard, rust-prone finish.

Zgjidhja e problemeve

If you encounter any issues with your Garvee Outdoor Handrail, consider the following common troubleshooting steps:

• Paqëndrueshmëria: If the handrail feels wobbly, check all mounting screws and connections. Ensure they are tightened securely. Verify that the base plates are flush with the mounting surface.
• Njollat ​​e ndryshkut: While designed to be rust-resistant, prolonged exposure to harsh conditions or damage to the powder coating can lead to rust. Clean any rust spots immediately and consider applying a rust-inhibiting paint or sealant to the affected area.
• Difficulty Gripping: Ensure the handrail surface is clean and free of debris or slippery substances.

For issues not resolved by these steps, please contact Garvee customer support.

Garancia dhe Mbështetja

Specific warranty information for the Garvee Outdoor Handrail is not provided in the product details. For warranty claims, technical support, or any product-related inquiries, please refer to the contact information provided with your purchase or visit the official Garvee webfaqe.

Always retain your proof of purchase for any warranty or support requests.
