Dowinx LS-665501 White Cat Ear Gaming Chair User Manual

1. Hyrje

Faleminderit për blerjenasing the Dowinx LS-665501 White Cat Ear Gaming Chair. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure you get the most out of your new chair. Please read this manual carefully before assembly and use, and keep it for future reference.

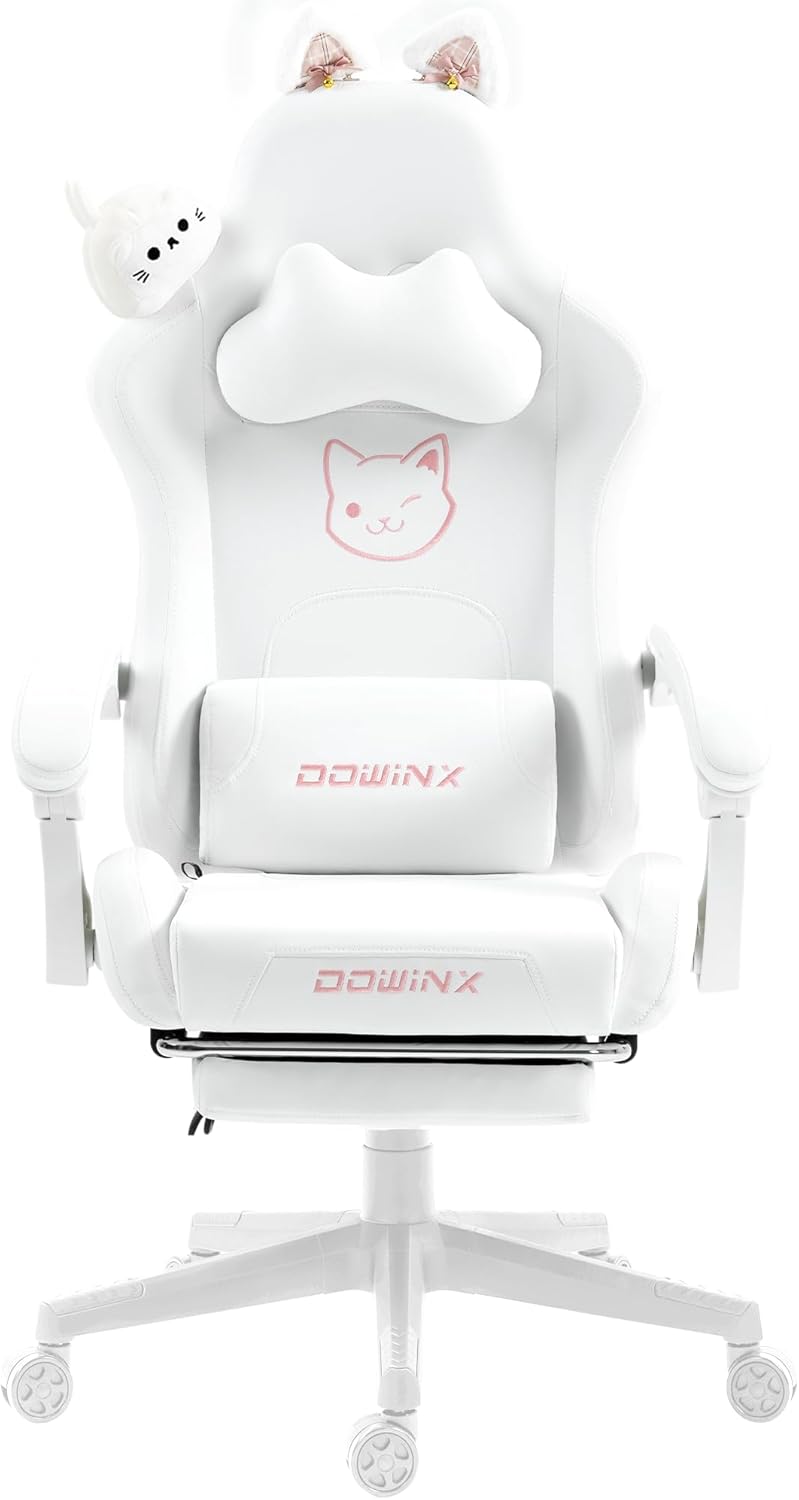

Figure 1: Dowinx LS-665501 White Cat Ear Gaming Chair

2. Informacion mbi sigurinë

• Ndiqni gjithmonë me kujdes udhëzimet e montimit.
• Mos qëndroni në karrige.
• Mos e përdorni karrigen nëse ndonjë pjesë mungon, është e dëmtuar ose e konsumuar.
• Mbajini fëmijët larg pjesëve lëvizëse gjatë montimit.
• Ensure all bolts and screws are tightened securely before use. Periodically check and re-tighten all fasteners.
• Shmangni ekspozimin e karriges ndaj rrezeve të diellit direkte ose temperaturave ekstreme.
• Kapaciteti maksimal i peshës: 130 kg (286 lbs).

3. Përmbajtja e paketës

Before beginning assembly, please ensure all parts listed below are present and undamaged. Specialized tools for assembly are included.

• mbështetëse
• Baza e ulëseve
• Mbështetëse krahësh (2)
• Baza e Yjeve
• Rrota (5)
• Gas Lift Cylinder with Cover
• Mekanizmi i pjerrësisë
• Headrest Pillow (Cat-shaped)
• Jastëk mbështetës i mesit
• Asambleja e mbështetëses së këmbëve
• Cat Ear Hairpins (2)
• Mjete Montimi (çelës Allen, vida)
• Manuali i Udhëzimeve

Figura 2: Mbiview of chair components.

4. Udhëzimet e Kuvendit

Follow these steps to assemble your Dowinx gaming chair. It is recommended to have a clear, spacious area for assembly.

1. Bashkangjitni rrotat në bazën yjore: Futni pesë rrotat në vrimat në fund të secilës këmbë të bazës yllore. Shtypini fort derisa të fiksohen në vendin e tyre.
2. Instaloni ashensorin e gazit: Vendosni cilindrin e ngritjes së gazit në vrimën qendrore të bazës yllore. Mbulojeni atë me kapakun teleskopik.
3. Attach Tilt Mechanism to Seat Base: Align the tilt mechanism with the pre-drilled holes on the underside of the seat base. Ensure the 'FRONT' arrow on the mechanism points towards the front of the seat. Secure with screws using the provided Allen wrench.
4. Lidhni mbështetëset e krahëve: Secure the armrests to the seat base using the provided screws. Ensure they are firmly attached.
5. Attach Backrest to Seat Base: Align the backrest with the metal brackets on the seat base. Secure with screws on both sides.
6. Instaloni mbështetësen e këmbëve: Slide the footrest assembly into the designated slots under the seat. Secure it with the provided bolts.
7. Lidhni sediljen me ashensorin me gaz: Carefully place the assembled seat onto the gas lift cylinder, ensuring the center hole of the tilt mechanism aligns with the top of the gas lift.
8. Attach Headrest and Lumbar Support: Secure the headrest and lumbar support pillows using their elastic straps, threading them through the openings in the backrest.
9. Attach Cat Ear Hairpins: Insert the cat ear hairpins into the designated slots at the top of the backrest.

5. Udhëzimet e funksionimit

Your Dowinx gaming chair offers several adjustable features for personalized comfort.

5.1. Rregullimi i lartësisë

To adjust the chair's height, pull the lever located on the right side of the seat base upwards. While pulling the lever, apply pressure to the seat to lower it, or lift your weight off the seat to raise it. Release the lever to lock the height.

5.2. Funksioni i shtrirjes

The backrest can recline from 90° to 140°. Pull the recline lever (usually on the left side of the seat) upwards and lean back to your desired angle. Release the lever to lock the backrest in position.

Figure 3: Chair in a reclined position with footrest extended.

5.3. Rregullimi i mbështetëses së krahut

The armrests are designed to lift and lower with the recline of the backrest, providing continuous support. They are not independently adjustable for height or rotation.

5.4. Funksionimi i mbështetëses së këmbëve

To extend the footrest, pull it out from under the seat. To retract, push it back in until it is fully stored under the seat. The footrest provides additional comfort when reclining.

5.5. Mbështetëse koke dhe mbështetëse lumbare

The cat-shaped headrest is height-adjustable by sliding it along the straps. The lumbar support pillow can also be adjusted vertically to provide optimal support for your lower back.

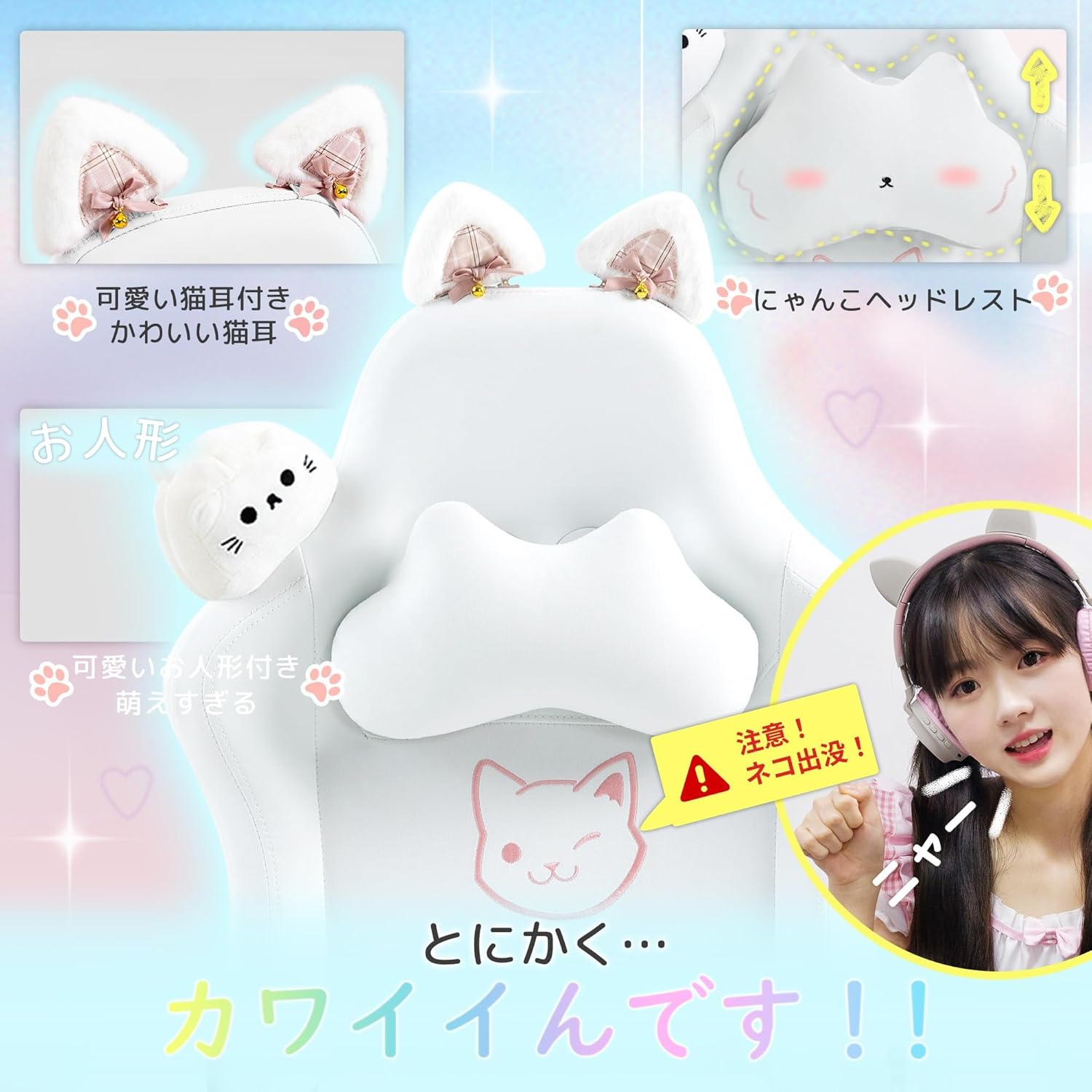

Figura 4: Pamje nga afër view of the adjustable cat-shaped headrest and lumbar support pillow.

6. Mirëmbajtja

Kujdesi i duhur do të zgjasë jetëgjatësinë dhe pamjen e karriges suaj të lojërave.

• Pastrimi: Wipe the PU leather and suede surfaces with a soft, damp leckë. Për njollat ​​kokëforta, përdorni një tretësirë ​​sapuni të butë dhe thajeni menjëherë. Shmangni kimikatet e ashpra ose pastruesit gërryes.
• Inspektimi: Kontrolloni periodikisht të gjitha bulonat dhe vidat për t'u siguruar që janë të shtrënguara. Shtrëngojini përsëri sipas nevojës.
• Shmangni rrezet e diellit direkte: Prolonged exposure to direct sunlight can cause the material to fade or crack.
• Shpërndarja e peshës: Avoid placing excessive or uneven weight on the chair.

7. Troubleshooting

Nëse hasni ndonjë problem me karrigen tuaj, referojuni problemeve dhe zgjidhjeve të zakonshme të mëposhtme:

• Karrigia nuk rregullon lartësinë:
  • Ensure the gas lift lever is fully engaged.
  • Check if the gas lift cylinder is properly inserted into the star base and seat mechanism.
• Karrigia lëkundet:
  • Check all assembly screws and bolts, especially those connecting the seat, backrest, and armrests. Tighten any loose fasteners.
  • Ensure the casters are fully inserted into the star base.
• Mbështetësja e shpinës nuk përkulet ose nuk bllokohet:
  • Verify that the recline lever is functioning correctly and not obstructed.
  • Check the connection of the recline mechanism to the backrest and seat.
• Zhurma kërcitjeje:
  • Apply a small amount of lubricant to moving parts or connection points if necessary.
  • Sigurohuni që të gjitha bulonat janë shtrënguar.

8. Specifikimet

Figure 5: Detailed dimensions of the Dowinx LS-665501 Gaming Chair.

9. Garancia dhe Mbështetja

Dowinx provides a 1-year quality guarantee for this product. If you experience any issues or have questions regarding your LS-665501 gaming chair, please contact Dowinx customer support through your purchase platform or the official Dowinx webfaqe për ndihmë.
