1. Informacion i rëndësishëm për sigurinë
Please read all instructions carefully before using this product. Failure to follow these safety guidelines may result in injury or damage to the product.
- Do not expose the pump to water or excessive moisture.
- Mbajeni larg fëmijëve. Kjo nuk është një lodër.
- Do not block the air intake or exhaust ports during operation.
- Përdorni vetëm kabllon e karikimit dhe aksesorët e dhënë.
- Do not attempt to inflate items that are not designed for air inflation, such as balloons, basketballs, or car tires. Refer to the 'Do Not Apply' image for examples.
- Shmangni ekspozimin e zgjatur ndaj rrezeve të diellit direkte ose temperaturave ekstreme.
- Do not disassemble or modify the pump.
2. Përmbajtja e paketës
Verifikoni që të gjitha sendet janë të pranishme në paketim:
- 1 x Luqeeg Small Air Pump
- 1 x kabllo karikimi USB Type-C
- 6 x Various Nozzle Accessories
- 1 x Manual Udhëzimesh (ky dokument)
3. Produkti i Mbaruarview
The Luqeeg Compact Lightweight Air Pump is a versatile, rechargeable device designed for inflating and deflating various low-pressure inflatable items. It features a built-in LED light for convenience in low-light conditions.
- Kompakt dhe i lëvizshëm: Designed for easy transport, ideal for camping dhe aktivitete në natyrë.
- Performanca efikase: Provides 3.5kpa inflation pressure and 3.0kpa deflation pressure for quick operation.
- Jetë e gjatë e baterisë: Equipped with a 1600mAh lithium battery, offering up to 25 minutes of operation on a full charge.
- Dritë LED e rregullueshme: Integrated light with adjustable brightness for nighttime use.
- Përdorimi i gjithanshëm: Suitable for air mattresses, swimming rings, inflatable toys, vacuum storage bags, and more.
4. Konfigurimi
4.1 Ngarkimi i Pompës
Before first use, fully charge the air pump. The device uses a USB Type-C charging interface.

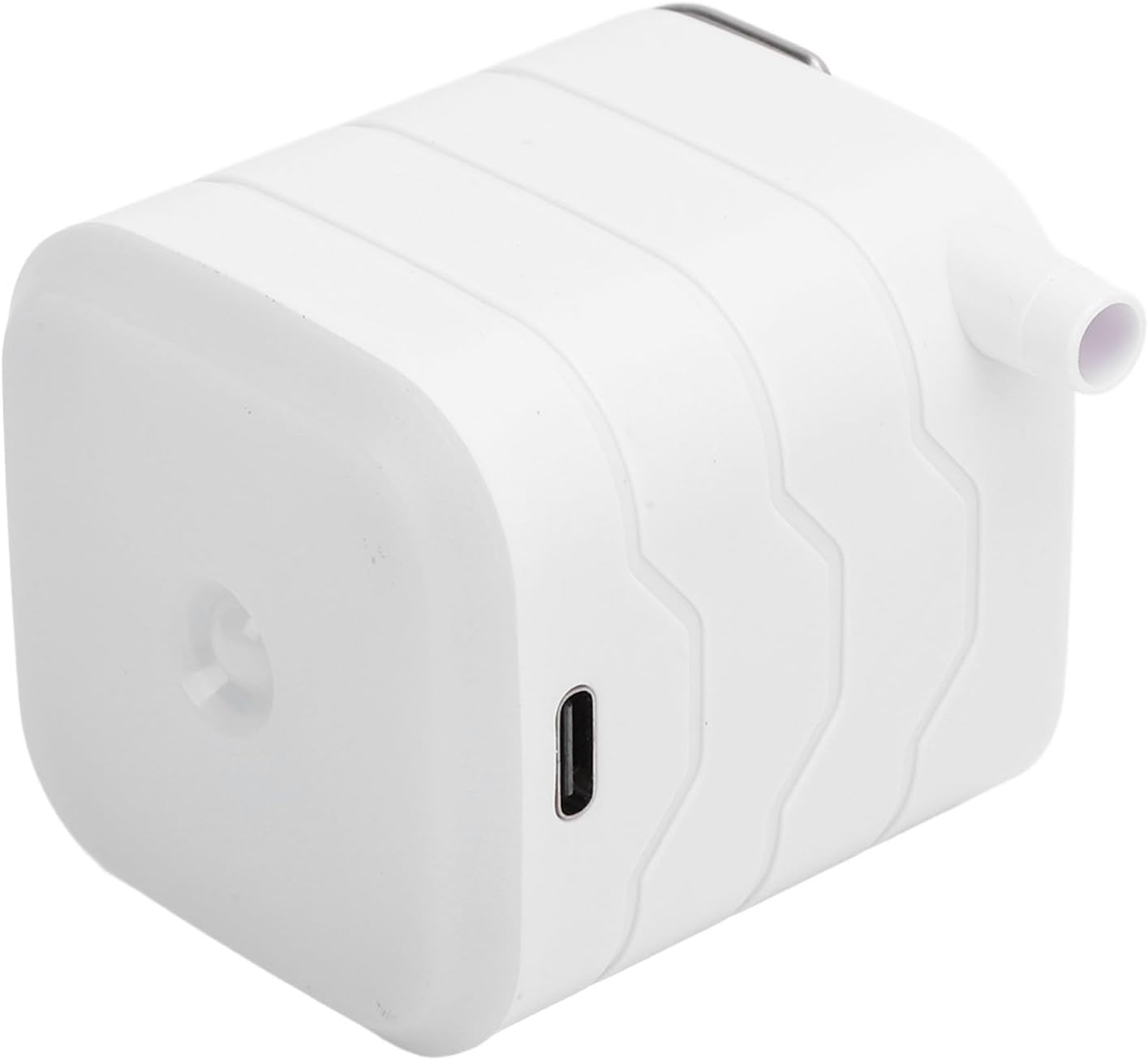

- Locate the USB Type-C charging port on the side of the pump.
- Connect the provided USB Type-C cable to the pump and the other end to a standard USB power adapter (not included) or a computer USB port.
- Drita treguese e karikimit do të ndizet gjatë karikimit dhe do të fiket kur të jetë karikuar plotësisht.
4.2 Vendosja e grykave
Select the appropriate nozzle for the item you wish to inflate or deflate.
- Identify the correct nozzle size and shape that fits the valve of your inflatable item.
- For inflation, firmly insert the chosen nozzle into the inflation port (top opening) of the pump.
- For deflation, firmly insert the chosen nozzle into the deflation port (side opening) of the pump.
5. Udhëzimet e funksionimit
5.1 Inflation and Deflation
The pump operates with a simple double-click mechanism.
- Të fillosh: Double-click the power switch button two times. The pump will begin operating.
- Për të fryrë: Ensure the correct nozzle is attached to the top inflation port. Insert the nozzle firmly into the item's valve and double-click the switch to start.
- Për të shfryrë: Ensure the correct nozzle is attached to the side deflation port. Insert the nozzle firmly into the item's valve and double-click the switch to start.
- Të ndalosh: Double-click the power switch button two times again. The pump will stop operating.
5.2 Funksioni i ndriçimit LED
The integrated LED light provides illumination for convenience.
- To Turn On (50% Brightness): Press and hold the power switch button for 3 seconds. The light will turn on at 50% brightness.
- To Adjust Brightness (100% Brightness): While the light is on, click the power switch button once to switch to 100% brightness.
- Për të Çaktivizuar: Press and hold the power switch button for 3 seconds again.
6. Mirëmbajtja
6.1 Pastrimi
- Wipe the exterior of the pump with a soft, dry cloth.
- Mos përdorni kimikate të ashpra ose pastrues gërryes.
- Ensure the air intake and exhaust ports are free from dust and debris.
6.2 Ruajtja
- Ruajeni pompën dhe aksesorët e saj në një vend të freskët dhe të thatë, larg rrezeve të diellit dhe temperaturave ekstreme.
- If storing for an extended period, charge the battery periodically (e.g., every 3-6 months) to maintain battery health.
7. Troubleshooting
If you encounter issues with your Luqeeg Air Pump, refer to the following common problems and solutions:
| Problem | Shkaku i mundshëm | Zgjidhje |
|---|---|---|
| Pompa nuk ndizet | Low battery; Incorrect operation | Charge the pump fully; Double-click the power switch button twice to start. |
| Low inflation/deflation power | Low battery; Nozzle not properly sealed; Blocked air vents | Charge the pump; Ensure nozzle is firmly attached and sealed; Clear any obstructions from air ports. |
| Drita LED nuk funksionon | Low battery; Incorrect operation | Charge the pump; Press and hold the power switch button for 3 seconds to activate. |
Nëse problemi vazhdon pasi të provoni këto zgjidhje, ju lutemi kontaktoni mbështetjen e klientit.
8. Specifikimet
Detailed technical specifications for the Luqeeg Compact Lightweight Air Pump:
| Veçori | Specifikimi |
|---|---|
| Numri i modelit | Luqeegumfkxye9w5 |
| Materiali | ABS (Akrilonitril Butadien Stiren) |
| Shpejtësia | 38000 rpm |
| Vëllimi i ajrit | 180 L/min |
| Inflacioni Presioni i ajrit | 3.5 kpa |
| Pumping Air Pressure (Deflation) | 3.0 kpa |
| Ndërfaqja e karikimit | USB Type-C |
| Informacion mbi baterinë | Lithium Battery 1600mAh (Built-In) |
| Product Size (Approx.) | 6 x 4.5 x 4.5 cm / 2.36 x 1.77 x 1.77 inç |
9. Garancia dhe Mbështetja
This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the warranty card included in your package or contact Luqeeg customer support.
If you have any questions, require technical assistance, or need to report an issue, please contact Luqeeg customer service through the retailer where you purchased the product or visit the official Luqeeg webfaqe për informacionin e kontaktit të mbështetjes.
