HOOBRO End Table and C-Shaped End Table Bundle Instruction Manual

1. Hyrje

Thank you for choosing the HOOBRO End Table and C-Shaped End Table Bundle. This manual provides essential instructions for the assembly, operation, and maintenance of your new furniture. Please read this guide thoroughly before assembly and retain it for future reference.

This bundle includes two versatile tables designed to enhance your living space: a 3-tier end table with an integrated charging station and a C-shaped end table also featuring a charging station and a storage pouch.

2. Udhëzimet e sigurisë

• Siguria e Përgjithshme: Sigurohuni që të gjitha pjesët janë të pranishme dhe të padëmtuara para montimit. Mos e përdorni nëse ndonjë pjesë mungon ose është e thyer.
• Asambleja: Assemble on a soft, clean surface to prevent scratches. Follow the assembly steps carefully. Do not overtighten screws.
• Stabiliteti: Place tables on a level surface. Do not stand or sit on the tables. Distribute weight evenly on shelves and tabletops.
• Electrical Safety (Charging Stations):
  • Only connect the charging station to a properly grounded electrical outlet.
  • Do not overload the outlets. Refer to the specifications for maximum load.
  • Keep liquids away from the charging station to prevent electric shock.
  • Mos e përdorni nëse kordoni i rrymës ose spina është i dëmtuar.
  • Unplug the charging station from the wall outlet when not in use for extended periods or during electrical storms.
• Fëmijët dhe kafshët shtëpiake: Mbajini pjesët e vogla dhe materialet e paketimit larg fëmijëve dhe kafshëve shtëpiake.

3. Përmbajtja e paketës

Please verify that all components for both the 3-tier End Table and the C-Shaped End Table are present before beginning assembly. While specific part numbers are not listed here, typical contents include:

• Tabletop panels (for both tables)
• Komponentët e kornizës metalike (këmbët, shufrat mbështetëse)
• Shelves (for 3-tier end table)
• Integrated charging stations with power cords
• Fabric storage pouch (for C-shaped end table)
• Pajisje montimi (vida, bulona, ​​çelës Allen)
• Këmbë të rregullueshme

4. Udhëzimet e Kuvendit

Follow the included graphical assembly guide for detailed, step-by-step instructions. The general process for both tables involves:

1. Shpaketoni dhe identifikoni: Carefully unpack all components and identify each part against the parts list in your separate assembly guide.
2. Mblidhni kornizën: Attach the metal frame components using the provided hardware. Ensure all connections are secure but do not fully tighten screws until the table is mostly assembled.
3. Install Shelves/Panels: For the 3-tier end table, install the shelves. Note that the middle shelf and mesh rack are adjustable and can be exchanged. For the C-shaped end table, attach the tabletop to the frame.
4. Integroni Stacionin e Ngarkimit: Secure the charging station into its designated slot on the tabletop.
5. Attach Storage Pouch (C-Shaped Table): Secure the fabric storage pouch to the side of the C-shaped table frame.
6. Shtrëngimi përfundimtar: Once all components are in place, fully tighten all screws.
7. Rregulloni këmbët: Adjust the leveling feet on the bottom of the table legs to ensure stability on uneven floors.

Figure 4.1: Dimensions and weight capacity for the 3-tier end table. Note the 80lb top capacity, 45lb middle shelf capacity, and 11lb bottom shelf capacity.

Figure 4.2: Dimensions for the C-shaped end table, showing its compact design suitable for sliding under sofas.

5. Udhëzimet e funksionimit

5.1 Using the 3-Tier End Table Charging Station (Model BB112BZ01)

The 3-tier end table is equipped with a charging station featuring 2 standard AC outlets and 2 USB ports. The power cord is approximately 59 inches (4.9 feet) long.

1. Plug the table's power cord into a wall outlet.
2. Connect your devices to the AC outlets (120V/12A max) or USB ports (5V/2A max).
3. Ensure devices are compatible with the provided power specifications.

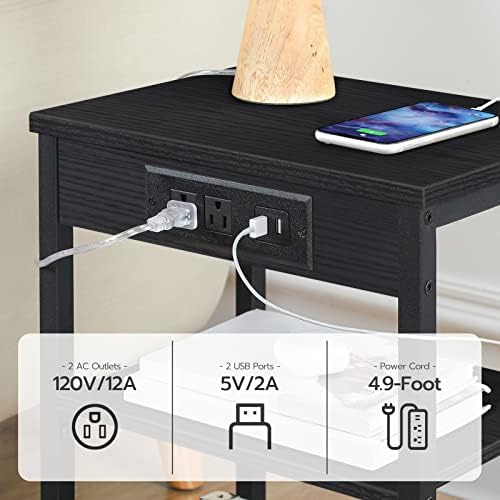

Figure 5.1: Detail of the 3-tier end table's charging station, indicating 2 AC outlets (120V/12A) and 2 USB ports (5V/2A).

5.2 Using the C-Shaped End Table Charging Station (Model BB70USF01)

The C-shaped end table includes a charging station with 1 standard AC outlet, 1 USB port, and 1 Type-C port. The power cord is approximately 59 inches (4.9 feet) long.

1. Plug the table's power cord into a wall outlet.
2. Connect your devices to the AC outlet (120V/12A max), USB port (5V/2A max), or Type-C port (5V/2A max).
3. Ensure devices are compatible with the provided power specifications.

Figure 5.2: Detail of the C-shaped end table's charging station, showing 1 AC outlet (120V/12A), 1 USB port (5V/2A), and 1 Type-C port (5V/2A).

5.3 Using the Storage Pouch (C-Shaped Table)

The C-shaped end table features a 2-tier fabric storage pouch. This pouch is detachable and can be used to organize small items such as remote controls, magazines, or electronic devices.

Figure 5.3: The C-shaped end table showcasing its detachable 2-tier storage pouch for organizing small items.

6. Mirëmbajtja

• Pastrimi: Fshini sipërfaqet me një të butë, damp leckë. Shmangni kimikatet e ashpra ose pastruesit gërryes që mund të dëmtojnë sipërfaqen.
• Pastrim pluhuri: Regularly dust the tables to prevent buildup.
• Komponentët elektrikë: Keep the charging stations clean and free of dust. Do not attempt to disassemble or repair the electrical components yourself.
• Hardware: Kontrolloni periodikisht të gjitha vidat dhe bulonat për t'u siguruar që ato mbeten të shtrënguara. Shtrëngojini përsëri nëse është e nevojshme.
• Shmangni mbingarkimin: Do not exceed the specified weight capacities for the tabletops and shelves.

7. Troubleshooting

• Tabela është e lëkundur:
  • Sigurohuni që të gjitha vidhat të jenë shtrënguar plotësisht.
  • Rregulloni këmbët e nivelimit në pjesën e poshtme të këmbëve për të kompensuar dyshemetë e pabarabarta.
• Stacioni i karikimit nuk funksionon:
  • Check if the power cord is securely plugged into both the table and the wall outlet.
  • Verifikoni që priza e murit është funksionale duke lidhur një pajisje tjetër.
  • Ensure the device you are trying to charge is properly connected and compatible with the charging station's output.
  • Avoid overloading the outlets. Unplug some devices if too many are connected.
• Pjesë që mungojnë ose komponentë të dëmtuar:
  • Do not proceed with assembly. Contact HOOBRO customer support for assistance.

8. Specifikimet

8.1 3-Tier End Table (Model BB112BZ01)

• Dimensionet: 15"Gj x 11"Gj x 21.7"L (38cm Gjatësi x 28cm Gjerësi x 55cm Lartësi)
• Kapaciteti i peshës:
  • Top Surface: 80 lbs (36 kg)
  • Rafti i mesëm: 45 paund (20 kg)
  • Bottom Mesh Shelf: 11 lbs (5 kg)
• Stacioni i karikimit:
  • AC Outlets: 2 (120V/12A)
  • USB Ports: 2 (5V/2A)
• Gjatësia e kordonit të rrymës: 59 inç (4.9 këmbë)

8.2 C-Shaped End Table (Model BB70USF01)

• Dimensionet: 15.7"Gj x 10"Gj x 28"L (40cm Gjatësi x 25.5cm Gjerësi x 71cm Lartësi)
• Stacioni i karikimit:
  • AC Outlet: 1 (120V/12A)
  • USB Port: 1 (5V/2A)
  • Type-C Port: 1 (5V/2A)
• Gjatësia e kordonit të rrymës: 59 inç (4.9 këmbë)
• Karakteristikat shtesë: Detachable 2-tier storage pouch

9. Garancia dhe Mbështetja

HOOBRO products are designed for quality and durability. For any questions, concerns, or to report missing or damaged parts, please contact HOOBRO customer support. Please have your model number (BB112BZ01-BB70USF01) and purchase information ready when contacting support.

For the most up-to-date warranty information and contact details, please refer to the official HOOBRO webfaqja e internetit ose dokumentacioni juaj i blerjes.
