1. Informacion i rëndësishëm për sigurinë
Read and understand all instructions before operating this machine. Failure to follow all instructions may result in serious injury or property damage. Keep this manual for future reference.
- Always wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, and heavy-duty gloves, during operation.
- Sigurohuni që zona e punës të jetë e pastër nga kalimtarët, fëmijët dhe kafshët shtëpiake.
- Never operate the chipper in wet conditions or on slippery surfaces.
- Do not feed fresh greens, pine cones, palm branches (fronds will jam), petrified wood, or vines into the chipper. These materials can cause jamming or damage to the machine.
- Ensure the machine is on a stable, level surface before starting.
- Never place hands or any body part into the feeding chute or discharge chute while the engine is running.
- This machine is UKCA/CE Certified. Operate only as directed in this manual.
2. Produkti i Mbaruarview
The SuperHandy Mini Wood Chipper Shredder Mulcher is designed for efficient processing of branches, limbs, and garden debris up to 50mm in diameter. It features a powerful 196cc engine and CR12MoV cutting blades for effective chipping, shredding, and mulching.
Figura 2.1: Në përgjithësi view of the SuperHandy Mini Wood Chipper Shredder Mulcher.
Figure 2.2: The chipper offers a 15:1 reduction ratio and handles limbs up to 50mm.
Figure 2.3: The robust 196cc 4-stroke gas engine provides reliable power.
3. Konfigurimi dhe montimi
Your SuperHandy Wood Chipper comes partially assembled. Follow these steps to complete the setup:
3.1 Komponentët e përfshirë:
- Njësia e motorit
- Feed-in Chute
- Pllaka Udhëzuese e Shkarkimit
- Wheels and Axle
- Ndërprerës i ndalimit të urgjencës
- Pajisjet e montimit
3.2 Hapat e Montimit:
- Attach the wheels to the axle and secure them to the main frame.
- Mount the feed-in chute to the main housing using the provided hardware. Ensure it is securely fastened.
- Install the discharge guide plate onto the discharge chute.
- Connect the emergency stop switch wiring as per the diagram in the full manual (not provided here).

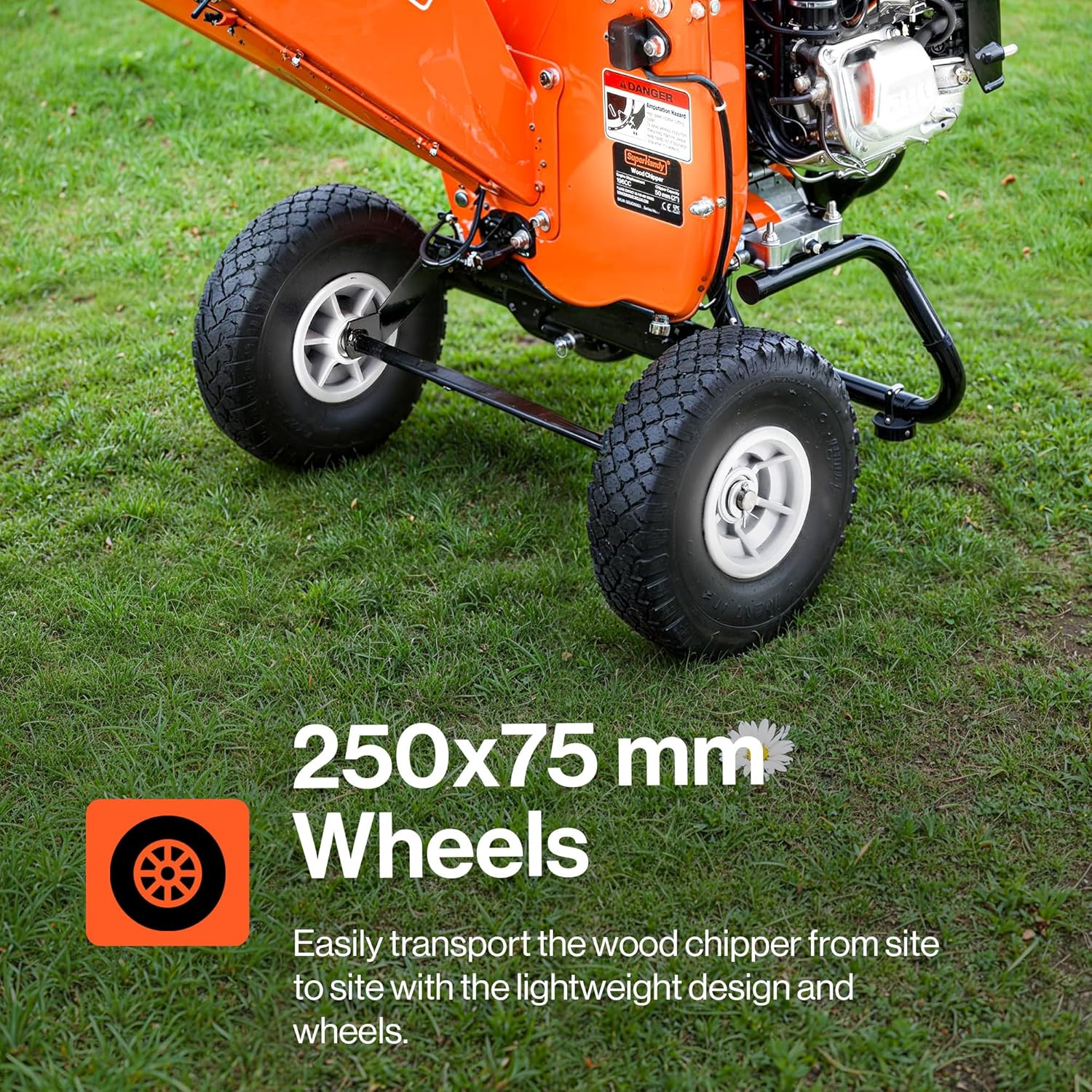

Figure 3.1: The compact design with wheels allows for easy transport.
3.3 Fuel and Oil:
Before first use, add engine oil (NOT INCLUDED) to the engine crankcase. Refer to the engine manual for the correct oil type and capacity. Fill the fuel tank with 87+ unleaded gasoline (NO ETHANOL recommended). The maximum fuel capacity is 0.7 gallons.
4. Udhëzimet e funksionimit
4.1 Nisja e motorit:
- Ensure the chipper is on a level surface and the emergency stop switch is in the 'RUN' position.
- Open the fuel valve and set the choke to the 'START' position (if cold engine).
- Tërhiqeni fort dorezën e ndezjes me tërheqje derisa motori të ndizet.
- Once the engine is running, gradually move the choke to the 'RUN' position.
4.2 Feeding Material:
Carefully feed branches and garden debris into the large extended feeding chute. The chipper can handle materials up to 50mm in diameter. Do not force material into the chute. Allow the chipper to process the material at its own pace.
Figure 4.1: The large hopper facilitates easy loading of greenery, twigs, and branches.
4.3 Debris Discharge:
The chipper features a vertical extended discharge chute with an adjustable guide. This allows for precise debris discharge within an angled range of 90° to 145°. Adjust the guide to direct chipped material into a desired container or area.
Figure 4.2: The multi-position chute allows for precise control of debris discharge.
5. Mirëmbajtja
Regular maintenance ensures optimal performance and extends the life of your chipper.
- Vaj motori: Check engine oil level before each use. Change oil according to the engine manufacturer's recommendations (typically after the first 5 hours, then every 25-50 hours).
- Filtri i ajrit: Clean or replace the air filter regularly, especially when operating in dusty conditions.
- Kandele: Inspektoni dhe pastroni kandelën periodikisht. Zëvendësojeni nëse konsumohet.
- Tehe prerëse: Inspect the CR12MoV cutting blades for sharpness and damage after each use. Sharpen or replace blades as needed. Always disconnect the spark plug wire before performing any maintenance on the blades.
- Pastrimi i përgjithshëm: Keep the chipper clean and free of debris buildup, especially around the engine and cutting mechanism.
6. Troubleshooting
Referojuni këtij seksioni për problemet e zakonshme dhe zgjidhjet e tyre.
| Problem | Shkaku i mundshëm | Zgjidhje |
|---|---|---|
| Motori nuk fillon | No fuel; Choke not set; Spark plug issue; Emergency stop engaged | Add fuel; Adjust choke; Check/clean/replace spark plug; Disengage emergency stop |
| Performancë e dobët e copëzimit | Dull blades; Overfeeding; Incorrect material | Sharpen/replace blades; Feed material slowly; Ensure material is suitable for chipping |
| Machine jams frequently | Overfeeding; Unsuitable material (e.g., palm fronds, vines) | Reduce feeding rate; Avoid feeding prohibited materials; Clear jam (engine off, spark plug disconnected) |
7. Specifikimet
| Specifikimi | Detaj |
|---|---|
| Numri i modelit | GEUOS063-NEW |
| Lloji i motorit | 196cc Horizontal 4-stroke Single Cylinder OHV Gas Engine |
| Shpejtësia maksimale e motorit | 3600 rpm |
| Max Torque | 9.14 ft-lbs @ 2500 RPM |
| Lloji i karburantit | 87+ Unleaded Gasoline (No Ethanol Recommended) |
| Max Fuel Capacity | 0.7 gallona |
| Max Chipping Capacity | 50 mm (2 inç) |
| Raporti i reduktimit | 15:1 |
| Blades prerëse | CR12MoV (x2) |
| Discharge Chute Angle | 90° - 145° Adjustable |
| Pesha e artikullit | 33 kg (72.75 lbs) |
| Prodhuesi | GCM |
8. Garancia dhe Mbështetja
For warranty information and technical support, please refer to the documentation included with your purchase or visit the official SuperHandy webvend. Ruajeni faturën e blerjes si provë blerjeje për çdo kërkesë garancie.
If you require assistance, please contact SuperHandy customer service. Contact details can typically be found on the manufacturer's webnë faqen e internetit ose në paketimin e produktit tuaj.
