Hyrje
This manual provides comprehensive instructions for the safe and effective installation, operation, and maintenance of your Generic Krowne 23-130 Long Shank Strainer Drain. Please read all instructions carefully before beginning installation or use to ensure proper function and longevity of the product.
Informacioni i Sigurisë
Adhere to the following safety guidelines during installation and maintenance:
- Always turn off the main water supply to the sink or fixture before commencing any installation or repair work.
- Wear appropriate personal protective equipment (PPE), including syze dhe doreza sigurie, to prevent injury.
- Sigurohuni që të gjitha lidhjet janë securely tightened to prevent leaks and water damage.
- If you are uncertain about any step of the installation process, it is recommended to consult a qualified plumber.
Përmbajtja e paketës
Sigurohuni që të gjithë përbërësit janë të pranishëm para se të filloni instalimin:
- 1 x Krowne 23-130 Long Shank Strainer Drain Assembly
Konfigurimi dhe instalimi
Follow these steps for proper installation of the strainer drain:
Mjetet e nevojshme:
- Stuko hidraulike ose silikon izolues
- Pikëllim i rregullueshëm
- Rags or cloth
Hapat e instalimit:
- Përgatitni hapjen e lavamanit: Ensure the sink drain opening is thoroughly clean and free of any old sealant, debris, or rust.
- Aplikoni ngjitësin: Roll a thin, even bead of plumber's putty or apply silicone sealant around the underside edge of the strainer flange. This creates a watertight seal between the strainer and the sink surface.
- Vendosni kulluesin: Insert the strainer flange into the sink drain opening from the top side of the sink. Press down firmly to seat it into the sealant.
- Montimi nga poshtë: From underneath the sink, slide the rubber washer, followed by the friction washer (if included), and then the locknut onto the long threaded shank of the strainer.
- Tighten the Locknut: Hand-tighten the locknut first, then use an adjustable wrench to tighten it securely. Mos e shtrëngoni shumë, as this can potentially crack or damage the sink basin or the drain assembly.
- Connect to Plumbing: Attach the tailpiece or P-trap assembly to the threaded bottom of the strainer drain. Ensure all connections are tight and properly sealed.
- Testi për rrjedhje: Turn on the water supply and fill the sink. Carefully inspect all connections, especially around the strainer and the plumbing connections underneath, for any signs of leaks. Address any leaks immediately by tightening connections or reapplying sealant.

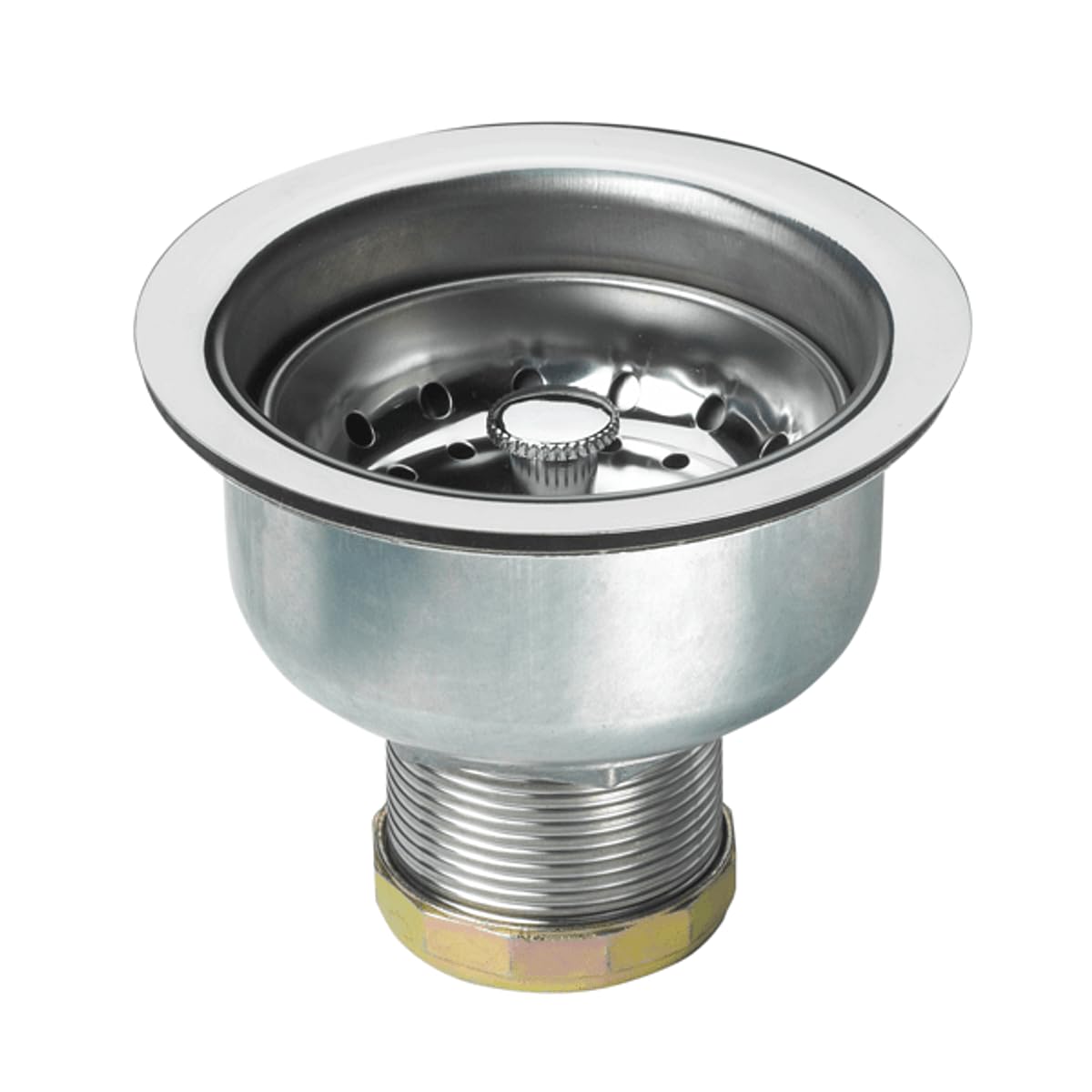

Image: Krowne 23-130 Long Shank Strainer Drain. This image shows the typical appearance of the strainer drain, which is designed to fit into a standard sink opening and connect to plumbing below.
Udhëzimet e funksionimit
The Krowne 23-130 Long Shank Strainer Drain is designed for straightforward operation:
- The strainer basket is intended to catch larger food particles and debris, preventing them from entering and clogging your drain pipes.
- Ensure the strainer basket is ulur siç duhet in the drain opening to maximize its effectiveness in filtering debris.
- Water should flow freely through the strainer and into the drain system when the basket is clear.
Mirëmbajtja
Regular maintenance will ensure optimal performance and extend the life of your strainer drain:
- Pastrim i rregullt: Periodically remove the strainer basket and empty any accumulated food particles, hair, or other debris into a waste bin. Rinse the basket thoroughly under running water.
- Inspektoni për rrjedhje: Routinely check the area under the sink for any signs of moisture or drips around the drain assembly. If leaks are detected, tighten connections as necessary.
- Shmangni kimikatet e forta: Do not use abrasive cleaners, strong chemical drain openers, or harsh solvents on the strainer drain, as these can damage the finish, seals, or plastic components. Use mild soap and water for cleaning.
Zgjidhja e problemeve
Referojuni tabelës më poshtë për problemet e zakonshme dhe zgjidhjet e tyre:
| Çështja | Shkaku i mundshëm | Zgjidhje |
|---|---|---|
| Leaks around the strainer flange. | Loose locknut; insufficient or degraded sealant. | Ensure the locknut is sufficiently tightened. If leaks persist, disassemble, clean, reapply plumber's putty or silicone sealant, and reassemble. |
| Kullim i ngadaltë. | Strainer basket clogged; blockage in P-trap or drain pipe. | Remove and clean the strainer basket. Check the P-trap for blockages and clear if necessary. |
| Uji nuk po kullohet siç duhet. | Strainer basket completely blocked; larger obstruction in drain. | Verify that the strainer basket is not completely blocked. If the issue persists, a larger obstruction may be present further down the drain, requiring professional attention. |
Specifikimet
Key specifications for the Krowne 23-130 Long Shank Strainer Drain:
- Prodhuesi: WorChess
- Numri i pjesës: NY-23-130
- Numri i modelit të artikullit: NY-23-130
- ASIN: B0FPWV98F2
- Data e parë e disponueshme: 15 maj 2025
- Marka: Gjenerike
- UPC: 776841323386
Garancia dhe Mbështetja
Warranty information for this specific product is not provided within this manual. For details regarding warranty coverage, terms, and conditions, please refer to the retailer's webfaqe ose kontaktoni direkt prodhuesin.
For technical support, troubleshooting assistance beyond what is covered in this manual, or to inquire about replacement parts, please contact the retailer from whom you purchased the product or the manufacturer's customer service department.
