LIGE EF19-A Smartwatch User Manual

Hyrje

This manual provides detailed instructions for the setup, operation, and maintenance of your LIGE EF19-A Smartwatch. This device features a 1.85-inch HD display, Bluetooth calling capabilities, extensive health monitoring, and over 100 sports modes. It is designed for durability with IP68 waterproofing and a robust build. Please read this manual thoroughly to ensure proper use and to maximize the functionality of your smartwatch.

1. Konfigurimi

1.1 Përmbajtja e paketës

• 1 x LIGE EF19-A Smartwatch
• 2 x Watch Straps (1 steel, 1 silicone)
• 1 x kabllo USB karikimi
• 1 x kabllo karikimi tip-C
• 1 x Strap Adjuster (Regulator)
• 1 x Manuali i Përdoruesit

1.2 Ngarkimi i orës inteligjente

Before initial use, fully charge your smartwatch.

1. Lidhni kabllon magnetik të karikimit me kontaktet e karikimit në pjesën e pasme të orës inteligjente.
2. Connect the other end of the charging cable (USB or Type-C) to a compatible power source (e.g., USB wall adapter, computer USB port, power bank, car charger).
3. Ekrani i orës do të tregojë statusin e karikimit. Një karikim i plotë zakonisht zgjat afërsisht 2 orë.

Image: The smartwatch connected to a charging cable, illustrating its 1000 mAh battery capacity and charging process.

A fully charged battery provides up to 7-15 days of normal use and up to 50 days in standby mode.

1.3 Instalimi dhe çiftëzimi i aplikacionit

To access all features, download the companion app on your smartphone. The smartwatch is compatible with Android 5.1 and higher, and iOS 9.0 and higher.

1. Scan the QR code provided in the manual or on the watch packaging, or search for the app name (usually specified in the quick start guide) in your phone's app store (Google Play Store for Android, Apple App Store for iOS).
2. Instaloni aplikacionin dhe krijoni një llogari nëse ju kërkohet.
3. Sigurohuni që Bluetooth të jetë i aktivizuar në smartphone tuaj.
4. Open the app and follow the on-screen instructions to add your device. The app will search for your smartwatch.
5. Select your smartwatch (e.g., "EF19-A" or similar Bluetooth name) from the list of available devices to pair.
6. Confirm the pairing request on both your smartphone and smartwatch if a prompt appears.

1.4 Strap Installation/Adjustment

The smartwatch comes with two interchangeable straps: a steel strap and a silicone strap.

• Për të lidhur një rrip: Align the spring bar with the lug holes on the watch body and slide the pin into place.
• Për të hequr një rrip: Locate the small lever on the spring bar, pull it inwards, and gently detach the strap from the watch body.
• For the steel strap: Use the provided strap adjuster (regulator) to remove or add links for a comfortable fit. Refer to the specific instructions for the strap adjuster if needed.

2. Udhëzimet e funksionimit

2.1 Navigimi bazë

• Ekran me prekje: Rrëshqitni majtas/djathtas, lart/poshtë për të lundruar nëpër menu dhe veçori. Trokitni për të zgjedhur.
• Butoni(ët) anësor(ë): Typically, one button serves as a power on/off, back, or home button. Long press for power options, short press to return to the watch face or previous screen.

2.2 Thirrjet dhe Njoftimet Bluetooth

Once paired with your smartphone, the smartwatch allows you to manage calls and receive notifications.

• Kryerja/Pranimi i thirrjeve: When a call comes in, the watch will display the caller ID. You can answer or reject calls directly from the watch. You can also dial numbers or select contacts from the watch interface.
• Njoftimet e mesazheve: Receive notifications for SMS, Facebook, WhatsApp, Twitter, TikTok, and other apps directly on your watch. Swipe down from the watch face to view njoftimet e fundit.

Image: The smartwatch showing an incoming call, message notifications, and the voice assistant interface.

2.3 Monitorimi i shëndetit

The smartwatch continuously monitors various health metrics.

• Ritmi i zemrës: Access the heart rate monitoring function to view rrahjet tuaja aktuale të zemrës dhe të dhënat historike.
• Oksigjeni në gjak (SpO2): Matni nivelet e oksigjenit në gjak.
• Cilësia e gjumit: The watch automatically tracks your sleep patterns, including deep sleep, light sleep, and wake times. View detailed sleep reports in the companion app.
• Niveli i stresit: Monitoroni nivelet e stresit tuaj gjatë gjithë ditës.
• Trajnimi i frymëmarrjes: Engage in guided breathing exercises to help manage stress.

Image: A user wearing the smartwatch, with the display showing real-time heart rate, blood oxygen saturation, and breathing exercise prompts.

Shënim: This device is not a medical device. Health monitoring data is for reference only and should not be used for medical diagnosis or treatment.

2.4 mënyra sportive

The smartwatch supports over 100 sports modes for tracking your physical activity.

1. Navigate to the "Workout" or "Sports" menu on your watch.
2. Select your desired activity (e.g., running, cycling, swimming, hiking, yoga, badminton, basketball, golf).
3. The watch will begin tracking metrics such as steps, distance, calories burned, and heart rate.
4. End the workout by following the on-screen prompts. Detailed summaries are available on the watch and in the companion app.

Image: A person cycling while wearing the smartwatch, with the display showing steps, distance, calories, and heart rate for different sports activities.

2.5 Funksioni i pishtarit

The smartwatch includes a built-in torch function for instant illumination.

• Access the torch function from the quick settings menu or app list.
• It offers different modes such as constant light, warning mode, and SOS mode.

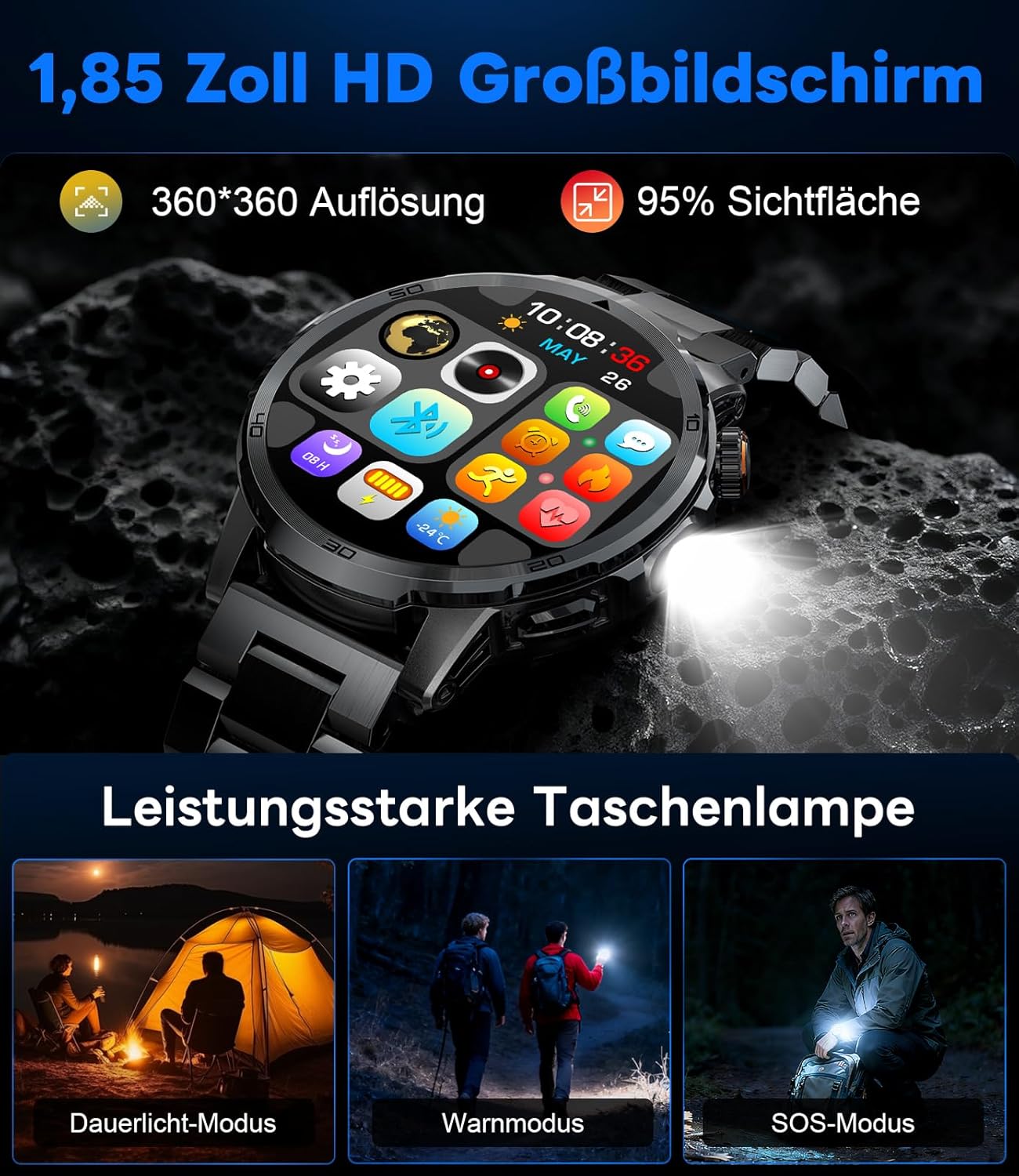

Image: The smartwatch displaying its 1.85-inch HD screen and demonstrating its powerful flashlight feature with different modes.

2.6 Funksione të tjera

• Asistent zanor: Activate the voice assistant to control your phone or get information (e.g., "What's the weather?").
• Kontrolli i muzikës: Control music playback on your smartphone (play, pause, skip tracks, adjust volume) directly from your watch.
• Kontrolli i kamerës: Përdor orën tënde si një qepen në distancë për kamerën e telefonit tënd të mençur.
• Parashikimi i Motit: View kushtet dhe parashikimet aktuale të motit.
• Alarme dhe kohëmatës: Set alarms and use stopwatch/timer functions.
• Kujtesa e pijeve: Vendosni përkujtues për të pirë ujë.
• Fytyrat e shikimit: Customize your watch face from over 100 options or upload your own photos via the app.

Image: The smartwatch interface displaying icons for music control, flashlight, camera control, weather, alarm, and drink reminders.

Image: A selection of diverse watch faces available for customization on the LIGE EF19-A Smartwatch.

3. Mirëmbajtja

3.1 Pastrimi

• Regularly clean your smartwatch and straps with a soft, dry, lint-free cloth.
• Nëse është e nevojshme, përdorni pak damp fshijeni një leckë me sapun të butë, pastaj fshijeni të thatë.
• Shmangni përdorimin e kimikateve të ashpra, pastruesve gërryes ose tretësve, pasi këto mund të dëmtojnë sipërfaqen dhe guarnicionet e orës.
• Sigurohuni që kontaktet e karikimit të jenë të pastra dhe të thata para se të karikoni.

3.2 Rezistencë ndaj ujit (IP68)

The LIGE EF19-A Smartwatch is IP68 waterproof, meaning it is resistant to dust and can withstand immersion in water up to 1.5 meters for up to 30 minutes.

• It is suitable for daily use, such as hand washing, rain, and shallow water swimming.
• Avoid using the watch in hot water, saunas, or steam rooms, as steam can penetrate the seals and cause damage.
• Mos i shtypni butonat nën ujë.
• After exposure to water, wipe the watch dry before charging or using.

Image: The smartwatch highlighting its robust military-grade design, including resistance to temperature extremes, shock, dust, and IP68 water resistance.

4. Troubleshooting

4.1 Ora nuk ndizet

• Sigurohuni që ora të jetë plotësisht e karikuar. Lidheni atë me karikuesin për të paktën 30 minuta.
• Try long-pressing the side button for 10-15 seconds to force a restart.

4.2 Nuk mund të çiftëzohet me smartfonin

• Sigurohuni që Bluetooth të jetë i aktivizuar në smartphone tuaj.
• Ensure the smartwatch is within Bluetooth range (typically 10 meters).
• Rinisni si telefonin inteligjent ashtu edhe orën inteligjente.
• Check if the app has the necessary permissions (location, Bluetooth, etc.).
• If previously paired, try "forgetting" the device in your phone's Bluetooth settings and re-pairing through the app.

4.3 Të dhëna të pasakta shëndetësore

• Sigurohuni që ora të mbahet fort në kyçin e dorës, rreth një gisht mbi gjerësinë e kockës së kyçit të dorës.
• Shmangni lëvizjet e tepërta gjatë matjeve.
• Pastroni sensorin në pjesën e pasme të orës.
• Faktorët mjedisorë dhe fiziologjia individuale mund të ndikojnë në lexime.

4.4 Njoftimet që nuk shfaqen

• Verifikoni që ora është çiftuar me sukses me telefonin tuaj inteligjent.
• Check notification settings within the companion app to ensure desired apps are enabled for notifications.
• Sigurohuni që cilësimet e njoftimeve të telefonit tuaj lejojnë që aplikacioni shoqërues të shfaqë njoftime.
• Make sure your phone is not in "Do Not Disturb" mode.

5. Specifikimet

6. Informacioni i garancisë

The LIGE EF19-A Smartwatch comes with a 2 vit garanci nga data e blerjes. Kjo garanci mbulon defektet e prodhimit dhe keqfunksionimet nën përdorim normal.

Garancia nuk mbulon:

• Damage caused by improper use, accident, abuse, neglect, or unauthorized modification.
• Normal wear and tear, including scratches, dents, or cosmetic damage.
• Damage caused by exposure to extreme temperatures, liquids (beyond IP68 rating), or corrosive environments.
• Damage to accessories (straps, charging cables) unless defective upon receipt.

Për të përfituar nga shërbimi i garancisë, ju lutemi ruani provën e blerjes dhe kontaktoni mbështetjen ndaj klientit.

7. Mbështetja e klientit

If you encounter any issues or have questions regarding your LIGE EF19-A Smartwatch that are not covered in this manual, please contact our customer support team.

• Refer to the contact information provided on the product packaging or the official LIGE webfaqe.
• When contacting support, please provide your product model number (EF19-A) and a detailed description of the issue.
