Hyrje
Thank you for choosing the HARDELL 180W Corded Rotary Tool and 618-Piece Accessory Kit. This versatile tool is designed for a wide range of applications, including carving, sanding, polishing, cutting, and drilling. This manual provides essential information for safe and effective operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your tool.

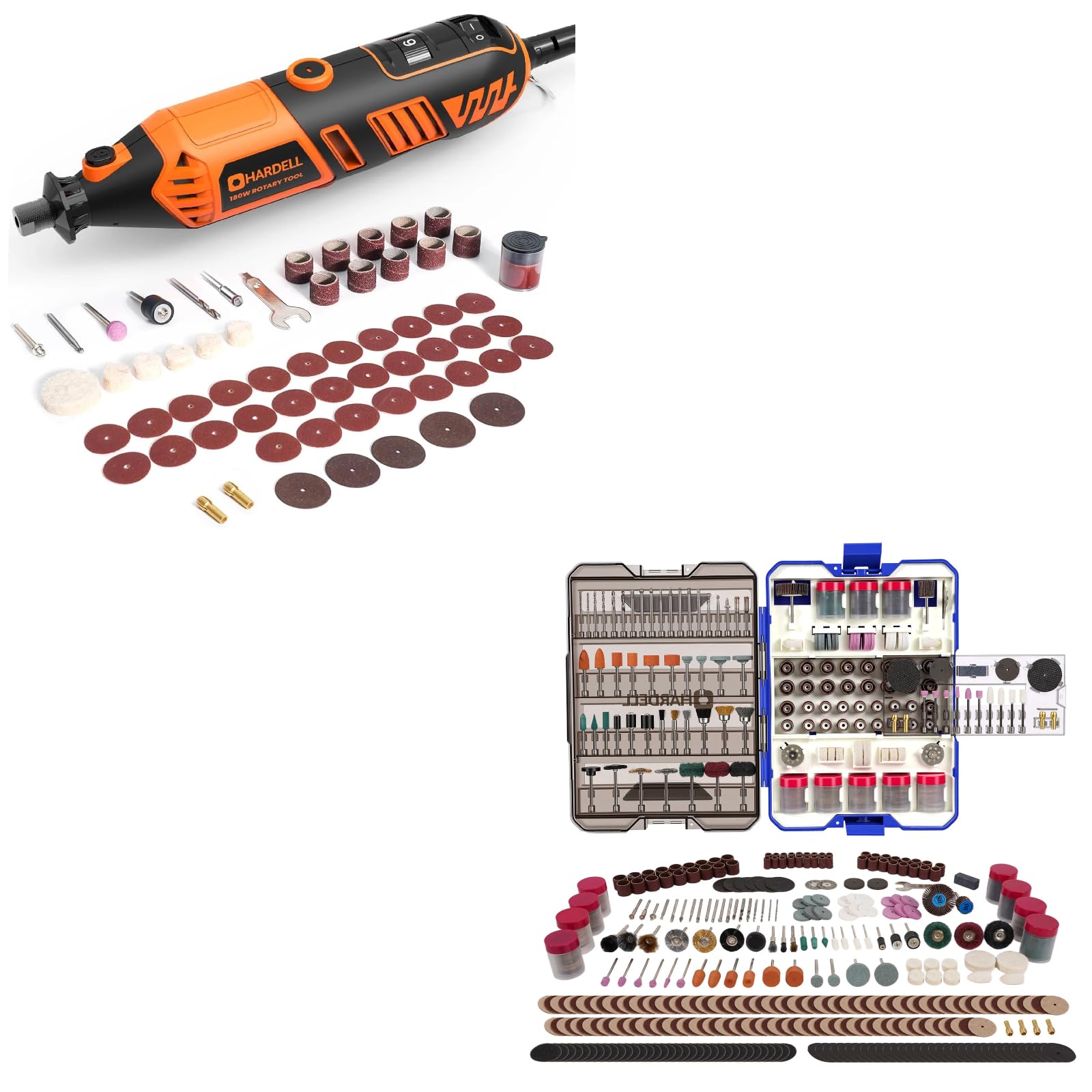

Image: The HARDELL 180W Corded Rotary Tool displayed with various accessories like sanding bands, cutting discs, and polishing wheels.
Udhëzime të rëndësishme të sigurisë
Ndiqni gjithmonë masat themelore të sigurisë kur përdorni vegla elektrike për të zvogëluar rrezikun e zjarrit, goditjes elektrike dhe lëndimeve personale.
- Lexoni të gjitha udhëzimet: Njihuni me funksionimin e mjetit dhe udhëzimet e sigurisë përpara përdorimit.
- Përdorni mbrojtje për sytë: Mbani gjithmonë syze sigurie ose syze sigurie me mburoja anësore.
- Vishni mbrojtje për dëgjimin: Use earplugs or earmuffs during extended operation.
- Siguroni pjesën e punës: Gjithmonë klamp or otherwise secure the workpiece to prevent movement during operation.
- Mbajeni të pastër zonën e punës: Zonat e rrëmujshme ftojnë aksidente.
- Shmangni fillimin aksidental: Sigurohuni që çelësi të jetë në pozicionin OFF përpara se ta kyçni mjetin në prizë.
- Mos e teproni: Mbani këmbën dhe ekuilibrin e duhur gjatë gjithë kohës.
- Shkëputni energjinë elektrike: Always unplug the tool before changing accessories, making adjustments, or performing maintenance.
- Përdorni aksesorët e duhur: Only use accessories designed for this rotary tool and ensure they are properly installed.
- Ruani mjetet boshe: Kur nuk janë në përdorim, mjetet duhet të ruhen në një vend të thatë, të ngritur ose të kyçur, larg fëmijëve.
Përmbajtja e paketës
Pas shpaketimit, ju lutemi verifikoni që të gjitha artikujt e listuar më poshtë janë të pranishëm dhe të padëmtuar:
- HARDELL 180W Corded Rotary Tool
- 618-Piece Rotary Tool Accessories Kit (in storage case)
- Four Collets (1/16", 3/32", 1/8" x2)
- Wrench for collet changes
- Manuali i Përdoruesit
Image: The comprehensive 618-piece accessory kit, neatly organized in a transparent, pull-out storage case.
Produkti Mbiview
Familiarize yourself with the components of your HARDELL Rotary Tool:
Imazh: Një i detajuar view of the rotary tool highlighting its key features: ON/OFF switch, 6-speed fine adjustment gear, spindle lock button, replaceable carbon brushes, and replaceable chuck design.
- Çelësi ON/OFF: Kontrollon fuqinë e mjetit.
- 6-Speed Fine Adjustment Speed Gear: Dial for selecting desired RPM.
- Bllokimi i boshtit: Button to lock the spindle for accessory changes.
- Furça karboni të zëvendësueshme: Access point for brush replacement.
- Replaceable Chuck Design: Front end where collets and accessories are inserted.
Konfigurimi
Ngjitja e aksesorëve
Always ensure the tool is unplugged before changing accessories.
- Select the correct collet: Choose a collet that matches the shank size of the accessory you intend to use (1/16", 3/32", or 1/8").
- Insert collet: Unscrew the collet nut and insert the appropriate collet into the chuck.
- Insert accessory: Insert the shank of the desired accessory into the collet. Ensure it is inserted as far as possible without bottoming out.
- Lock spindle: Shtypni dhe mbani shtypur butonin e kyçjes së boshtit.
- Tighten collet nut: While holding the spindle lock, use the provided wrench to firmly tighten the collet nut. Do not overtighten.
Image: A display of different collet sizes (1/16", 3/32", 1/8") and various rotary tool bits, demonstrating their universal fit for different rotary tool brands.
Udhëzimet e funksionimit
Ndezja/Fikur
- To turn the tool ON, slide the ON/OFF switch to the "I" position.
- To turn the tool OFF, slide the ON/OFF switch to the "O" position.
Rregullimi i shpejtësisë
The HARDELL Rotary Tool features a 6-speed adjustment dial, allowing you to select the optimal RPM for your task and material.
Image: A user operating the rotary tool, with an overlay illustrating the 6-speed settings and their corresponding RPM ranges: 1 (8000 RPM) to 6 (35000 RPM).
- Shpejtësia 1: 8000 RPM (Lowest speed, suitable for delicate work or polishing)
- Shpejtësia 2: 15000 rpm
- Shpejtësia 3: 20000 rpm
- Shpejtësia 4: 25000 rpm
- Shpejtësia 5: 30000 rpm
- Shpejtësia 6: 35000 RPM (Highest speed, suitable for aggressive material removal or cutting)
Rotate the speed adjustment dial to the desired setting before starting the tool. Always test on a scrap piece of material to ensure the chosen speed is appropriate for your application.
Këshilla të përgjithshme për përdorimin
- Apply light pressure; let the tool do the work. Excessive pressure can cause the motor to overheat or the accessory to break.
- Move the tool smoothly and consistently across the workpiece.
- For best results, use the appropriate accessory for each task.
Mirëmbajtja
Mirëmbajtja e rregullt siguron jetëgjatësinë dhe performancën optimale të mjetit tuaj rrotullues. Gjithmonë shkëputeni mjetin nga priza përpara se të kryeni ndonjë mirëmbajtje.
Pastrimi
- Pas çdo përdorimi, fshijeni mjetin me një leckë të pastër,amp pëlhurë.
- Use a soft brush or compressed air to clear dust and debris from the ventilation openings.
- Mos përdorni kimikate të ashpra ose pastrues gërryes.
Ndërrimi i furçës së karbonit
The carbon brushes are wear items and will need periodic replacement. Refer to the "Product Overview" section for the location of the replaceable carbon brushes.
- Hiqeni mjetin nga burimi i energjisë.
- Gjeni kapakët e furçave në anët e strehës së motorit.
- Unscrew the brush caps using a flathead screwdriver or the provided wrench.
- Hiqni furçat e vjetra të karbonit.
- Insert new carbon brushes, ensuring they are oriented correctly.
- Screw the brush caps back on firmly.
Magazinimi i aksesorëve
The 618-piece accessory kit comes in a compact case with a pull-out design and hidden handle for organized storage and easy transport.
Image: The 618-piece rotary tool accessories kit case, showcasing its pull-out design, portable handle, and neatly compartmentalized storage, suitable for wall mounting or on-the-go projects.
- Always return accessories to their designated compartments after use to prevent loss and damage.
- Store the accessory case in a dry environment to protect contents from moisture.
Zgjidhja e problemeve
If you encounter issues with your HARDELL Rotary Tool, refer to the following common problems and solutions:
| Problem | Shkaku i mundshëm | Zgjidhje |
|---|---|---|
| Mjeti nuk fillon | No power supply; ON/OFF switch not engaged; Worn carbon brushes. | Check power outlet and cord; Ensure switch is in "I" position; Replace carbon brushes. |
| Tool loses power or runs intermittently | Loose power connection; Overheating; Worn carbon brushes. | Check connections; Allow tool to cool down; Replace carbon brushes. |
| Dridhje ose zhurmë e tepërt | Accessory not properly seated or bent; Damaged accessory. | Ensure accessory is fully inserted and collet nut is tightened; Replace damaged accessory. |
| Accessory slips in collet | Collet nut not tight enough; Incorrect collet size. | Tighten collet nut firmly; Use the correct collet size for the accessory shank. |
If the problem persists after attempting these solutions, please contact HARDELL customer support.
Specifikimet
Key technical specifications for the HARDELL 180W Corded Rotary Tool:
- Fuqia: 180 W
- Cilësimet e shpejtësisë: Rregullim me 6 shpejtësi
- Shpejtësia pa ngarkesë: 8,000 - 35,000 RPM
- Madhësitë e koletave: 1/16" (1.6mm), 3/32" (2.3mm), 1/8" (3.2mm)
- Accessory Count: 618 copë
Imazh: Një i brendshëm view of the rotary tool's motor, emphasizing its 180W high power and maximum speed of 35000 RPM.
Garancia dhe Mbështetja
HARDELL products are manufactured to high-quality standards. For warranty information, technical support, or to inquire about replacement parts, please refer to the contact information provided with your purchase or visit the official HARDELL webfaqe interneti. Ju lutemi ruani provën e blerjes për kërkesat e garancisë.
