DOVAMAN T03 18-Inch Electric Garden Tiller User Manual

1. Informacion mbi sigurinë

Always read and understand all safety warnings and instructions before operating this electric garden tiller. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Shmangni mjedisin e rrezikshëm: Mos përdorni pajisje në damp ose vende të lagështa. Mos e përdorni në shi.
• Mbajini fëmijët larg: Të gjithë vizitorët duhet të mbahen në një distancë të sigurt nga zona e punës.
• Vishuni siç duhet: Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of rubber gloves and substantial footwear is recommended when working outdoors.
• Use Safety Glasses: Always use safety glasses with side shields.
• Shmangni fillimin e paqëllimshëm: Sigurohuni që çelësi të jetë në pozicionin e fikur përpara se ta kyçni në prizë.
• Do Not Force Appliance: Do ta bëjë punën më mirë dhe me më pak gjasa të rrezikut të lëndimit në shkallën për të cilën është krijuar.
• Store Idle Appliances: When not in use, appliances should be stored indoors in a dry, high or locked-up place out of reach of children.
• Maintain Appliance With Care: Keep cutting tools sharp and clean for better and safer performance. Follow instructions for lubricating and changing accessories. Inspect appliance cord periodically and if damaged, have it repaired by an authorized service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean, and free from oil and grease.
• Disconnect Appliance: Disconnect the appliance from the power supply when not in use, before servicing, or when changing accessories.
• Litarët zgjatues: Use only extension cords suitable for outdoor use and rated for the appliance's power requirements.
• Mbrojtja nga mbingarkesa: The tiller is equipped with an overload protection system that automatically stops the motor if it becomes overloaded or the blades get jammed, helping to prevent motor damage, extend the machine’s lifespan, and enhance operational safety.

2. Produkti i Mbaruarview

The DOVAMAN T03 Electric Garden Tiller is a powerful and efficient tool designed for soil preparation in vegetable gardens and flower beds. Its robust design and user-friendly features make gardening tasks easier.

Karakteristikat kryesore:

• 18-Inch Wide Tilling Coverage: Covers more soil in fewer passes, ideal for efficient preparation.
• Up to 9-Inch Tilling Depth: Achieves optimal depth for thorough soil cultivation.
• 15 Amp Motori i fuqishëm: Delivers steady, high-torque performance with a 380 RPM operating speed.
• 4-Position Adjustable Wheels: Allows adaptation to different heights and soil conditions for superior control and maneuverability.
• Doreza e palosshme: Enables compact storage in garages or sheds.
• Dizajni i lehtë: Weighs only 24 lbs for effortless maneuvering and transport.
• Mbrojtja nga mbingarkesa: Automatically stops the motor if overloaded or blades jam, preventing damage and enhancing safety.

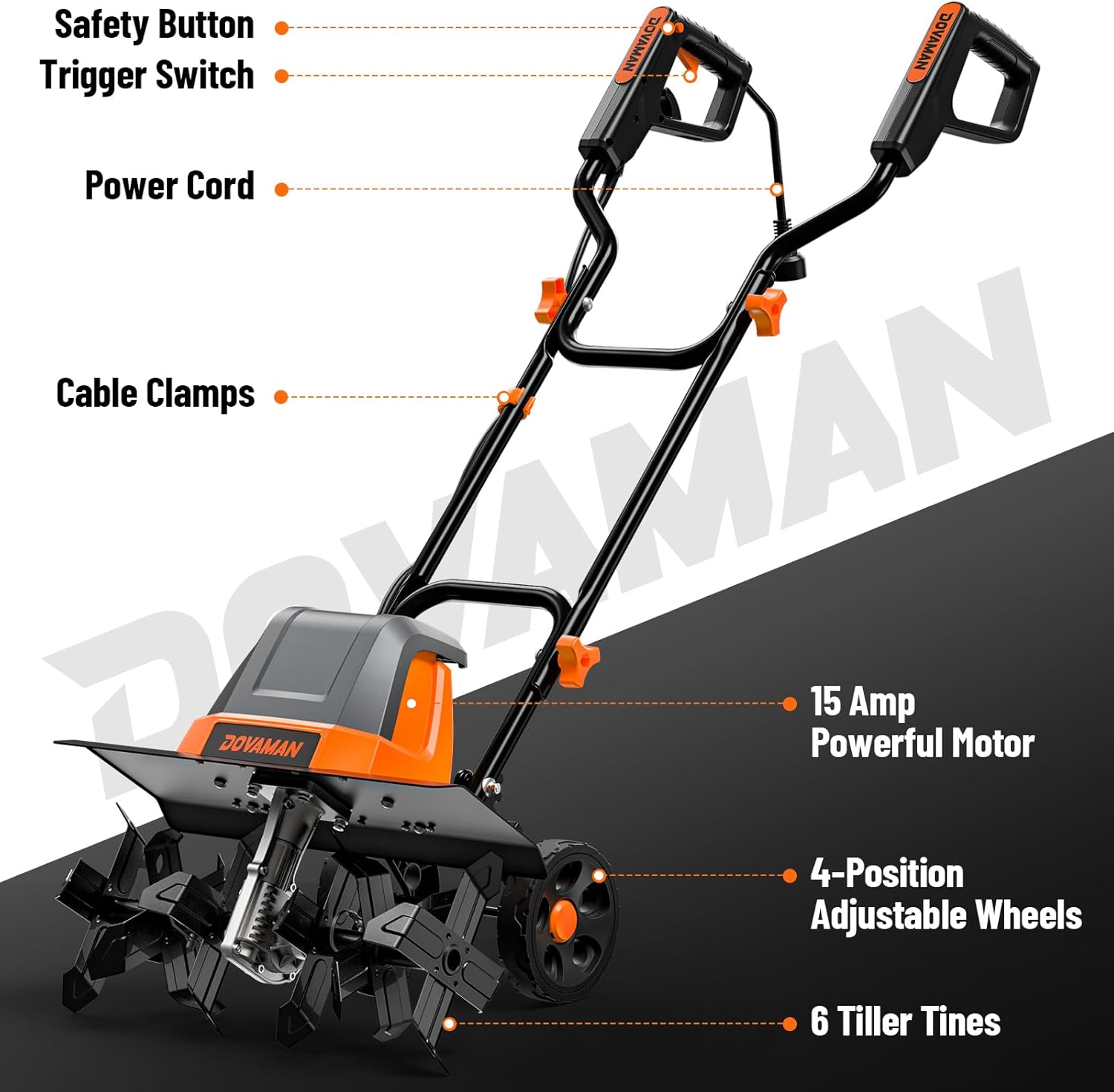

Figure 1: Labeled components of the DOVAMAN T03 Electric Garden Tiller, including the safety button, trigger switch, power cord, cable clamps, 15 Amp motor, 4-position adjustable wheels, and 6 tiller tines.

3. Kuvendi

The DOVAMAN T03 Electric Garden Tiller is designed for straightforward assembly. Follow these steps to get your tiller ready for use.

3.1. Instalimi i rrotave

1. Slide the wheels onto the axle.
2. Secure each wheel with a nylon lock nut. Use the included wrench to tighten the nuts until secure.
3. Clip on the wheel center caps.

3.2. Asambleja e timonit

1. Install the lower handlebar section between the motor assembly and the wheel frame.
2. Secure this section using the provided carriage bolts and wing nuts. Hand-tighten the wing nuts.
3. Attach the upper handlebar section to the lower section using another set of carriage bolts and wing nuts.
4. Clip the power wire securely to the handlebar.

4. Udhëzimet e funksionimit

Before operating, ensure all safety guidelines are followed and the tiller is properly assembled.

4.1. Nisja e Tiller

1. Connect the tiller to a suitable outdoor extension cord, ensuring the cord is securely attached and routed away from the tilling area.
2. Shtypni dhe mbani butonin e sigurisë që ndodhet në dorezë.
3. Ndërsa mbani shtypur butonin e sigurisë, shtypni butonin e shkrepëses për të ndezur motorin. Lëshojeni butonin e sigurisë sapo motori të jetë në punë.
4. To stop the tiller, release the trigger switch.

4.2. Adjusting Tilling Depth and Width

• Thellësia e punimit: The 4-position adjustable wheels allow you to control the tilling depth up to 9 inches. Adjust the wheel height by pushing in the spring clip on the leg and moving the wheel to the desired position. Lowering the wheels increases the tilling depth.
• Gjerësia e punimit: The tiller provides an 18-inch tilling width. For narrower applications, you can remove some of the tines by undoing the securing pins.

Figure 2: Illustration of the 4-position adjustable wheels on the DOVAMAN T03 Electric Garden Tiller, allowing users to customize tilling depth.

Figure 3: Visual representation of the DOVAMAN T03 Electric Garden Tiller's efficient tilling capabilities, highlighting its 18-inch working width and 9-inch working depth.

4.3. General Tilling Tips

• For best results, till when the soil is moist but not wet.
• Work in small sections, moving the tiller slowly and steadily.
• Overlap passes slightly to ensure even tilling.
• If the tiller encounters resistance, do not force it. Lift slightly and reposition.

5. Mirëmbajtja

Regular maintenance ensures the longevity and optimal performance of your DOVAMAN T03 Electric Garden Tiller.

• Pastrimi: After each use, disconnect the power and clean the tines and housing. Remove any accumulated soil, roots, or debris. Use a stiff brush or cloth. Do not use water directly on the motor housing.
• Inspektimi i dhëmbëve: Periodically inspect the tines for wear, damage, or bending. Replace worn or damaged tines to maintain tilling efficiency.
• Lubrifikimi: Refer to the detailed instructions in the printed manual for specific lubrication points and frequency.
• Inspektimi i kordonit: Regularly check the power cord and extension cord for any signs of damage, cuts, or fraying. Replace damaged cords immediately.

6. Magazinimi

The DOVAMAN T03 Electric Garden Tiller features a foldable handle for convenient, space-saving storage.

1. Ensure the tiller is clean and dry before storage.
2. Loosen the wing nuts on the handlebars to fold the handle down. This makes the unit compact.
3. Store the tiller in a dry, secure location, out of reach of children and away from extreme temperatures.

Figure 4: The DOVAMAN T03 Electric Garden Tiller shown with its handle folded, demonstrating its compact design for easy storage.

7. Troubleshooting

If you encounter issues with your DOVAMAN T03 Electric Garden Tiller, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact DOVAMAN customer support.

8. Specifikimet

9. Garanci dhe Mbështetje

For warranty information and customer support, please refer to the documentation included with your product or visit the official DOVAMAN webfaqe interneti. Ruajeni faturën e blerjes si provë të blerjes.

Ju gjithashtu mund të vizitoni DOVAMAN Store on Amazon për më shumë produkte dhe burime mbështetëse.
