Panasonic KX-FLM551 Laser Fax Machine Instruction Manual

1. Hyrje

This manual provides instructions for the proper setup, operation, maintenance, and troubleshooting of your Panasonic KX-FLM551 Laser Fax Machine. Please read this manual thoroughly before using the device to ensure correct and safe operation.

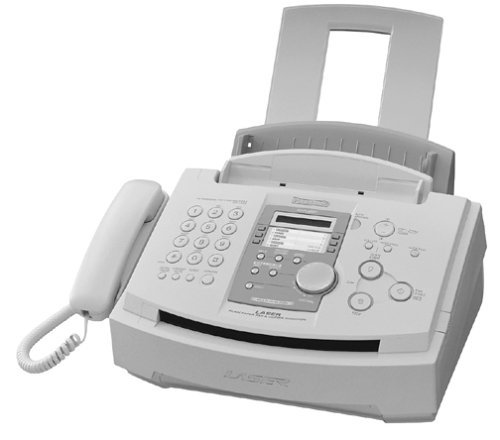

Figura 1: Përpara view of the Panasonic KX-FLM551 Laser Fax Machine. The image displays the compact design of the multi-function device, featuring a control panel, paper tray, and document feeder.

2. Konfigurimi

2.1 Shpaketimi

1. Carefully remove the fax machine and all accessories from the packaging.
2. Ruani materialet e paketimit për transport ose ruajtje në të ardhmen.
3. Remove all protective tapes and packing materials from the unit.

2.2 Lidhja e energjisë

• Connect the power cord to the AC inlet on the back of the machine.
• Lidhni anën tjetër të kabllit të energjisë në një prizë elektrike standarde.

2.3 Phone Line Connection

• Connect one end of the telephone line cord to the LINE jack on the fax machine.
• Lidhni anën tjetër të kabllit të linjës telefonike me prizën e telefonit në mur.
• If using an external telephone, connect it to the EXT jack on the fax machine.
• The machine is compatible with Call Waiting/Caller ID and Distinctive Ring features, if subscribed through your telephone service provider.

2.4 Ngarkimi i Letrës

• Open the paper tray located at the front of the machine.
• Load up to 150 sheets of letter-size or legal-size paper into the paper tray.
• Rregulloni udhëzuesit e letrës për t'iu përshtatur madhësisë së letrës.
• For faxing or copying multiple originals, load up to 15 pages into the automatic document feeder (ADF).

2.5 Instalimi i fishekut të tonerit

• Open the front cover of the fax machine.
• Carefully insert the toner cartridge into its designated slot until it clicks into place.
• Mbyllni kapakun e përparmë.

2.6 Lidhja me kompjuterin

• To use the device as a printer or scanner, connect it to a personal computer via a parallel port cable.
• Install the necessary drivers on your computer (drivers not included in this manual).

3. Udhëzimet e funksionimit

3.1 Dërgimi i një faksi

• Manual Dialing: Place the document face down in the document feeder. Dial the recipient's fax number using the keypad. Press the 'Start' button.
• Auto-Dial: Store frequently used fax numbers in the 100 auto-dial locations. Select the desired auto-dial entry and press 'Start'.
• Transmetimi: Send a single document to up to 158 different locations by programming a broadcast list.
• Fax Forwarding: Configure the machine to automatically forward received faxes to another designated fax number.

3.2 Marrja e një faksi

• Pritje automatike: The machine will automatically answer incoming calls and receive faxes after a set number of rings.
• Pritje manuale: If you answer a call and hear fax tones, press the 'Fax/Start' button to receive the fax.
• Remote Retrieval: Access and retrieve faxes stored in the machine's memory from a remote location using a touch-tone phone.

3.3 Kopjimi i Dokumenteve

• Place the original document face down in the document feeder or on the document glass.
• Enter the desired number of copies (up to 99) using the keypad.
• Press the 'Copy' or 'Start' button to begin copying.
• The machine produces copies at a resolution of 600 x 600 dpi.

3.4 Printimi nga një kompjuter

• Ensure the machine is connected to your computer via the parallel port and drivers are installed.
• Select the Panasonic KX-FLM551 as your printer from your computer's application.
• Adjust print settings as needed and initiate the print job.
• The machine prints at a resolution of 600 x 600 dpi and a speed of approximately 10 pages per minute.

3.5 Scanning to a Computer

• Ensure the machine is connected to your computer via the parallel port and drivers are installed.
• Place the document on the document glass or in the document feeder.
• Initiate the scan function from your computer's scanning software.
• The machine scans at a resolution of 600 x 600 dpi, suitable for importing pictures, line art, and signatures.

3.6 Using the Integrated Telephone Handset

• Lift the handset to make or receive voice calls.
• The handset functions as a standard telephone.

4. Mirëmbajtja

4.1 Pastrimi

• Shkëputni makinën nga priza para pastrimit.
• Fshijeni pjesën e jashtme me një leckë të butë dhe të thatë.
• Gently clean the document glass and document feeder rollers with a lint-free cloth damptë larë me ujë ose me një pastrues të butë, jo-gërryes.

4.2 Zëvendësimi i fishekut të tonerit

• When the 'Toner Low' or 'Replace Toner' indicator appears, replace the toner cartridge.
• Open the front cover and remove the old cartridge.
• Unpack the new Panasonic-approved toner cartridge and shake it gently to distribute the toner.
• Vendoseni fishekun e ri fort derisa të fiksohet në vend.
• Mbyllni kapakun e përparmë.

5. Troubleshooting

If you encounter issues with your Panasonic KX-FLM551, refer to the following common problems and solutions:

• Pa fuqi: Sigurohuni që kablloja e energjisë të jetë e lidhur mirë si në makinë ashtu edhe në një prizë elektrike funksionale.
• Fax Not Sending/Receiving: Verify the telephone line connection. Check if the recipient's fax number is correct. Ensure there is paper in the tray and toner in the cartridge.
• Bllokim letre: Open the appropriate covers and carefully remove any jammed paper, following the instructions inside the machine. Ensure paper is loaded correctly and not overfilled.
• Poor Print/Copy Quality: Check the toner level and replace if low. Clean the document glass and print head area. Ensure you are using appropriate paper.

For more complex issues, consult the detailed troubleshooting section in the full user manual or contact Panasonic customer support.

6. Specifikimet

7. Informacioni i garancisë

The Panasonic KX-FLM551 Laser Fax Machine is backed by a one-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, refer to the warranty card included with your product or contact Panasonic customer support.

8. Mbështetje

For technical assistance, service, or further inquiries regarding your Panasonic KX-FLM551 Laser Fax Machine, please contact Panasonic customer support. Contact information can typically be found on the Panasonic official webfaqja e internetit ose në dokumentacionin e dhënë me produktin tuaj.
