Manuali i Udhëzimeve për Paketën e Tastierës Premium me 61 Taste Casio CTK-2550

1. Hyrje

This manual provides essential information for the proper setup, operation, and maintenance of your Casio CTK-2550 61-Key Premium Keyboard Pack. Please read this manual thoroughly before using the product to ensure safe and optimal performance. The CTK-2550 is a portable keyboard designed for musical exploration, featuring a wide range of tones, rhythms, and connectivity options.

2. Përmbajtja e paketës

Verifikoni që të gjitha artikujt e listuar më poshtë janë të përfshirë në paketën tuaj. Nëse ndonjë artikull mungon ose është i dëmtuar, ju lutemi kontaktoni shitësin tuaj.

• Casio CTK-2550 61-Key Portable Keyboard
• Qëndrim tastiere
• kufje
• Furnizimi me energji AC
• Pushim muzikor
• Manual udhëzimi (ky dokument)

Figure 2.1: Casio CTK-2550 Keyboard Pack contents.

3. Konfigurimi

3.1. Keyboard Placement

Place the keyboard on a stable, flat surface or securely attach it to the included keyboard stand. Ensure there is adequate space around the keyboard for comfortable playing and access to connections.

Figura 3.1: Top view of the Casio CTK-2550 keyboard.

3.2. Lidhja e energjisë

The CTK-2550 can be powered using the included AC adapter or six AA-size batteries (not included). Do not use rechargeable batteries.

• Përshtatës AC: Connect the AC adapter to the DC 9.5V jack on the rear of the keyboard and then plug it into a standard wall outlet.
• Bateritë: Open the battery compartment on the underside of the keyboard and insert six AA-size alkaline batteries, ensuring correct polarity.

Figure 3.2: AC Power Supply.

3.3. Asambleja e qëndrimit

Assemble the X-style keyboard stand according to its separate instructions. Place the keyboard securely on the stand, ensuring it is stable before use.

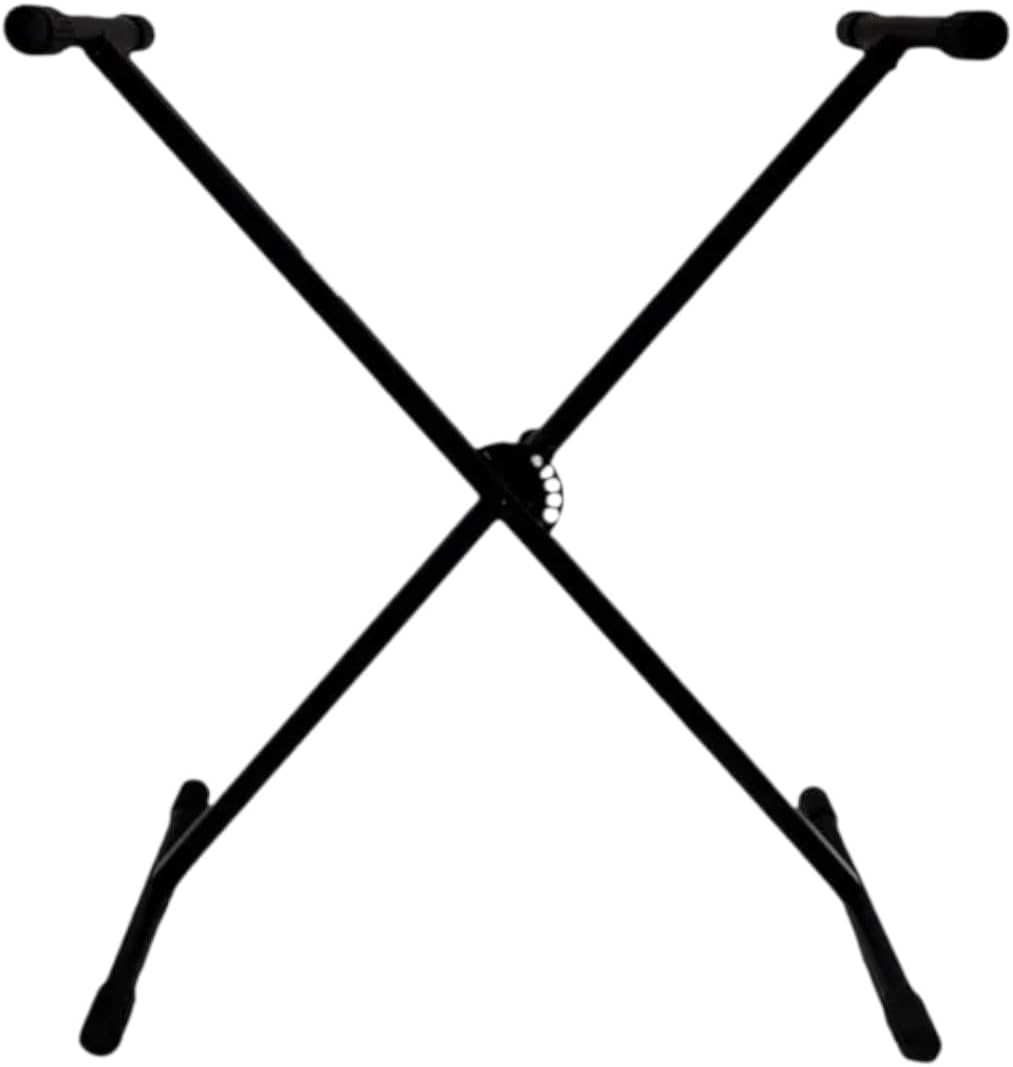

Figure 3.3: Keyboard Stand.

3.4. Lidhja e kufjeve

For private practice, connect the included headphones to the PHONES/OUTPUT jack on the rear of the keyboard. The internal speakers will automatically mute when headphones are connected.

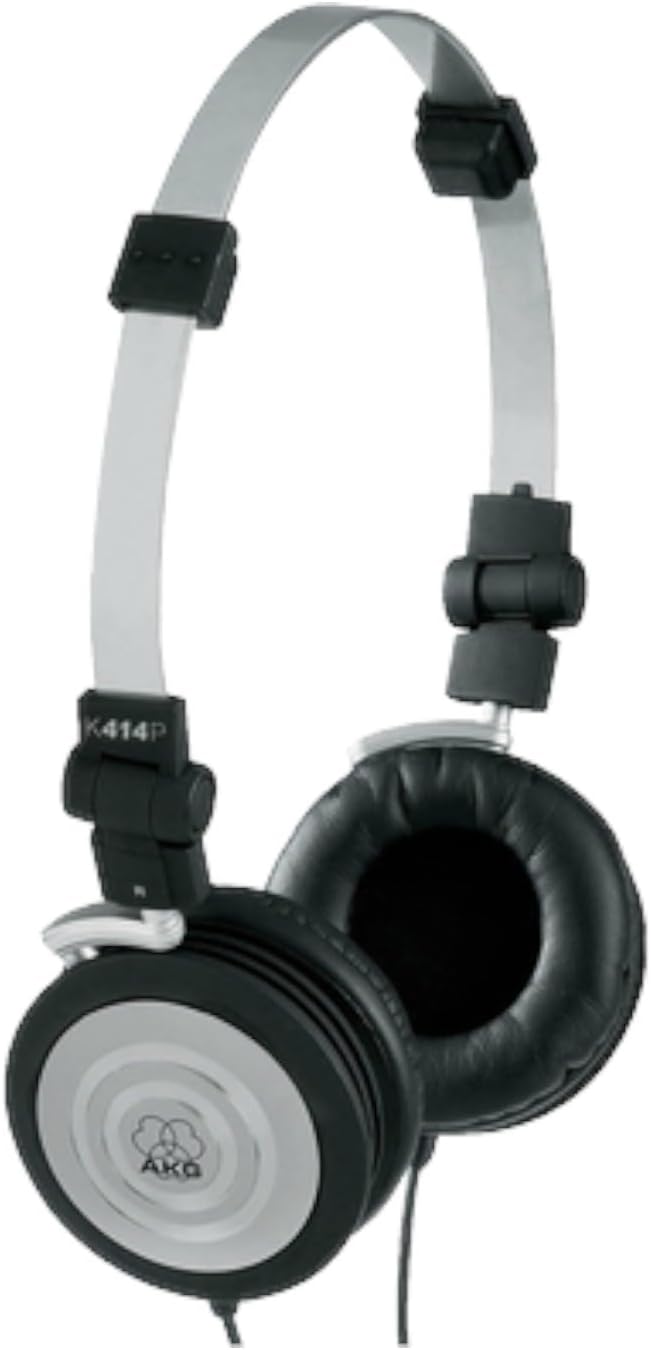

Figure 3.4: Included Headphones.

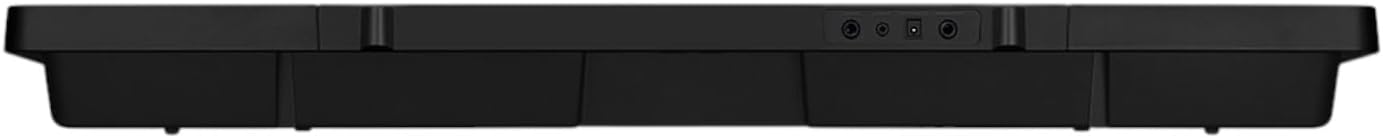

Figura 3.5: Lidhjet e panelit të pasmë.

4. Udhëzimet e funksionimit

4.1. Ndezja/Fikur

Shtypni [FUQIA] button to turn the keyboard on. To turn it off, press and hold the [FUQIA] butonin derisa ekrani të fiket.

4.2. Sound Selection (Tones)

The CTK-2550 features 400 high-quality Tones. Use the [TONI] buttons and the numeric keypad to select different instrument sounds. You can explore various categories such as pianos, electric pianos, organs, strings, and more.

4.3. Rhythms and Accompaniment

Access 100 built-in Rhythms to add automatic accompaniment to your playing. Use the [RITMI] buttons and numeric keypad to select a rhythm. Press [FILLONI / NDALONI] to begin/end the rhythm. Adjust the tempo using the [TEMPO] butonat.

4.4. Dance Music Mode

Engage Dance Music Mode to create and remix electronic dance music. This mode allows you to select different variations of drum beats, bass lines, and synth parts, and add effects like filter, flanger, gate, roll, and low-fi.

4.5. Lesson System (Chordana Play App)

Connect your CTK-2550 to an iOS or Android device via USB to utilize the free Chordana Play app. The app provides a built-in lesson system that displays how to play your favorite songs, making learning interactive and engaging. You can also transfer downloadable MIDI files to the keyboard's internal memory.

4.6. Funksioni i regjistrimit

The keyboard includes a recording function to capture your performances. Refer to the on-screen display and dedicated [REC] dhe [LUAJ] buttons for operation.

4.7. Metronome and Transpose

A built-in metronome is available for timing practice. The transpose function allows you to change the key of the keyboard to play along with other instruments or to adjust a song to a more comfortable vocal range.

4.8. Lidhshmëria

The keyboard features a USB port for connection to computers or smart devices, enabling MIDI communication and use with music software.

5. Mirëmbajtja

To ensure the longevity and optimal performance of your Casio CTK-2550, follow these maintenance guidelines:

• Pastrimi: Wipe the keyboard and stand with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth and mild soap, then wipe dry immediately. Avoid abrasive cleaners or solvents.
• Magazinimi: Ruajeni tastierën në një vend të freskët dhe të thatë, larg rrezeve të diellit, temperaturave ekstreme dhe lagështisë së lartë.
• Trajtimi: Shmangni rënien e tastierës ose nënshtrimin e saj ndaj goditjeve të forta. Mos vendosni objekte të rënda sipër saj.
• Bateritë: Nëse përdorni bateri, hiqni ato nëse tastiera nuk do të përdoret për një periudhë të gjatë për të parandaluar rrjedhjet.

6. Troubleshooting

If you encounter any issues with your CTK-2550, refer to the following common troubleshooting steps:

• Pa fuqi: Ensure the AC adapter is securely connected to both the keyboard and a working power outlet. If using batteries, check that they are inserted correctly and are not depleted.
• Nuk ka zë: Check the volume level on the keyboard. If headphones are connected, disconnect them to check the internal speakers. Ensure external speakers (if used) are powered on and connected correctly.
• Çelësat nuk përgjigjen: Ensure the keyboard is powered on. If only certain keys are affected, contact customer support.
• Problemet e lidhjes së aplikacionit: Verify that the USB cable is properly connected between the keyboard and your smart device. Ensure the Chordana Play app is updated to the latest version.

If the problem persists after trying these steps, please contact Casio customer support.

7. Specifikimet

8. Video zyrtare e produktit

9. Garancia dhe Mbështetja

For warranty information and customer support, please refer to the warranty card included in your product packaging or visit the official Casio webfaqe interneti. Ruajeni provën e blerjes për çdo kërkesë garancie.
