Rollerhouse 14 Channel RF Remote Control Instruction Manual

1. Produkti i Mbaruarview

The Rollerhouse 14 Channel RF Remote Control is designed to operate Rollerhouse motorized window shades and blinds. This remote allows for individual control of up to 14 channels (blinds) and a master 'UL' channel to control all paired blinds simultaneously. It features push-button controls, an LED display, and a wall mount holder for convenient access.

Imazhi: Përpara view of the Rollerhouse 14 Channel Remote Control, showing the LED display and control buttons.

2. Përputhshmëria

This remote control is specifically designed for Rollerhouse RF blinds and shade motors. It is not a universal remote control and will not sync with other brands or models of motorized shades. Please verify compatibility before use.

2.1. How to Check Compatibility

To ensure compatibility, please check your existing Rollerhouse motor or original remote for the following:

• Frekuenca: Only supports 433.92MHz RF devices. (Not compatible with 315MHz, Infrared (IR), or WiFi devices.)
• Modeli: Only replaces the original BF-315 remote.
• Brand & Motors: Only compatible with Rollerhouse specific motors (ERB22, ERB25, EY1612, EY2512).

Image: The back of the remote control with the battery cover removed, showing the battery and a small button. Text on the image highlights compatibility requirements.

3. Përmbajtja e paketës

Pas hapjes së paketës, duhet të gjeni artikujt e mëposhtëm:

• 1 x Rollerhouse 14 Channel Remote Control
• 1 x Wall Mount Holder
• Vida rregulluese
• 1 x 3V-CR2450 Battery (pre-installed or included)

4. Specifikimet

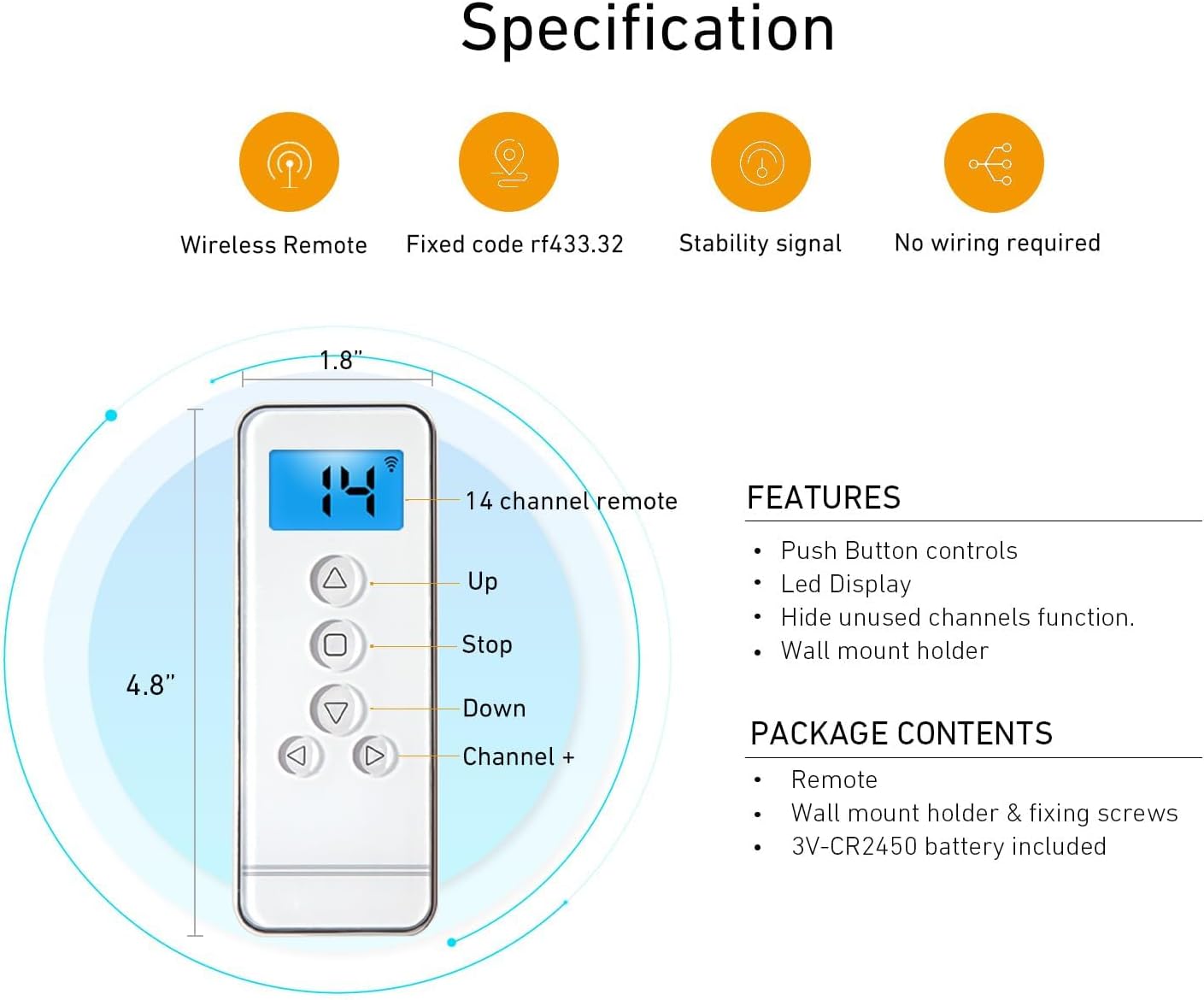

Image: Diagram illustrating the dimensions (4.8" x 1.8") and key features of the remote control, including Up, Stop, Down, Channel +, and LED display.

Image: A hand holding the remote control, operating motorized blinds in a living room setting. An overlay displays technical specifications like Voltage (3V), Frequency (433.92 MHz), Transmitting Power (30 milliwatt), Ambient Operating Temperature (-10°C to 50°C), Transmission Distance (approx. 65 feet in open space), and Battery (3V-CR2450).

5. Konfigurimi dhe instalimi

5.1. Instalimi i baterisë

The remote control uses one 3V CR2450 battery. To install or replace the battery:

1. Carefully slide open the battery compartment cover on the back of the remote.
2. Vendosni baterinë CR2450 me anën pozitive (+) lart.
3. Mbyllni mirë kapakun e ndarjes së baterisë.

5.2. Pairing the Remote with Your Motorized Blind

Before pairing, ensure your remote has a working battery and your motorized blind is powered on. Select an unused channel on your remote (channels 01-14). The 'UL' channel is reserved for controlling all blinds simultaneously and cannot be used for initial pairing or programming.

1. Factory Reset (Optional but Recommended): To avoid conflicts with previous settings, it is recommended to perform a factory reset on the motor. Press the 'C' button on the back of the remote (under the battery cover) three times. The motor should jog twice, indicating the limits are deleted.
2. Initiate Pairing on Motor: Using a small screwdriver or pointed object, press the setting button on the motor head. Release it when the blind jogs once.
3. Confirm Pairing on Remote: Press the 'C' button on the back of the remote. Release it when the blind jogs once.
4. Çiftimi i Testit: Press any button (Up, Down, Stop) on the remote. If the blind moves, the remote is successfully paired with the motor on the selected channel.

Video: This video demonstrates how to pair a Rollerhouse 15-channel remote control with a motorized blind, including selecting a channel, performing a factory reset, and confirming the pairing process.

5.3. Setting Upper and Lower Positions (Limits)

After successful pairing, set the desired upper and lower travel limits for your blind:

1. Vendosni kufirin e sipërm: Press and hold the 'L' (Limit) button on the back of the remote until the blind jogs. Then, use the Up/Down buttons to move the blind to your desired upper position. Press the 'Stop' button. Finally, press the 'C' button on the back of the remote. The motor will jog, confirming the upper limit is set.
2. Vendos kufirin e poshtëm: Press the 'Down' button to move the blind to your desired lower position. Press the 'Stop' button. Finally, press the 'C' button on the back of the remote. The motor will jog, confirming the lower limit is set.

5.4. Checking and Changing Blind Direction

If the blind moves in the opposite direction to the Up/Down buttons, you need to reverse the direction:

1. Check Direction: Press the 'Up' button. If the blind goes down, the direction needs to be changed.
2. Ndrysho drejtimin: Press and hold both the 'L' (Limit) button and the 'Stop' button on the remote simultaneously. Hold them until the blind jogs once. The rolling direction has now been changed.
3. Verifiko: Press the 'Up' button again to confirm the blind now moves upwards.

5.5. Adding a New Remote to an Existing Motor

To add a new remote (Remote B) to a motor already programmed with an existing remote (Remote A):

1. On Remote A (the already programmed remote), press and hold the 'L' (Limit) button. While holding 'L', press the 'C' button at the same time. Release both buttons when the motor jogs.
2. On Telekomandë B (the new remote), press the 'C' button on the back. The motor will jog again, indicating that Remote B has been successfully programmed with the motor.

Image: A visual guide demonstrating the two-step process of adding a secondary remote control to a motorized shade using an already programmed primary remote.

6. Udhëzimet e funksionimit

Once your remote is paired and limits are set, operating your motorized blinds is straightforward:

• Zgjedhja e kanalit: Use the 'Channel +' and 'Channel -' buttons to select the desired channel (1-14) for individual blind control. Select 'UL' for simultaneous control of all paired blinds.
• Butoni Lart (▲): Shtypni për të ngritur të verbrin.
• Butoni Poshtë (▼): Shtypni për të ulur blindin.
• Stop Button (■): Shtypni për të ndaluar perden në çdo pozicion të dëshiruar.

Image: A hand holding the Rollerhouse remote control, demonstrating its use to operate motorized blinds in a modern living room setting.

7. Mirëmbajtja

Për të siguruar jetëgjatësinë dhe performancën optimale të telekomandës suaj:

• Ndërrimi i baterisë: Replace the CR2450 battery when the LED display dims or the remote's range decreases.
• Pastrimi: Wipe the remote with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
• Magazinimi: Ruajeni telekomandën në një vend të thatë, larg rrezeve të diellit dhe temperaturave ekstreme.

8. Troubleshooting

If you encounter issues with your remote control, try the following:

• Telekomanda nuk përgjigjet: Kontrolloni baterinë. Zëvendësojeni nëse është e nevojshme.
• Gama e kufizuar: Ensure there are no obstructions between the remote and the motor. Replace the battery if the range remains poor.
• Blind Not Moving: Verify the remote is on the correct channel for the desired blind. Ensure the motor is powered.
• Incorrect Direction: Follow the steps in Section 5.4 to change the blind's rolling direction.
• Limits Not Set Correctly: Re-follow the steps in Section 5.3 to reset the upper and lower limits.
• Ndërhyrja: Keep the remote away from strong electromagnetic fields.

9. Garancia dhe Mbështetja

For warranty information or further assistance, please refer to the product packaging or contact Rollerhouse customer service. Keep your purchase receipt for any warranty claims.

You can also visit the official Rollerhouse webfaqe për burime dhe mbështetje shtesë.
