Geko G80310 Triple Lubricated Air Compressor, 200 L

1. Hyrje

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Geko G80310 Triple Lubricated Air Compressor. Please read this manual thoroughly before operating the compressor and keep it for future reference. Proper understanding and adherence to these instructions will ensure optimal performance and extend the lifespan of your unit.

The Geko G80310 is a robust 200-liter lubricated air compressor designed for various applications requiring a reliable source of compressed air.

2. Udhëzimet e sigurisë

Always observe the following safety precautions to prevent personal injury and damage to the compressor.

• Lexoni të gjitha udhëzimet: Familiarize yourself with the compressor's controls and proper usage.
• Siguria elektrike: Ensure the power supply matches the compressor's requirements. Use a properly grounded outlet. Do not operate in wet conditions or with wet hands.
• Siguria nën presion: Never exceed the maximum operating pressure of the compressor or any attached air tools. Always release air pressure from the tank before performing maintenance or moving the unit.
• Ventilimi: Operate the compressor in a well-ventilated area to prevent overheating and ensure proper air intake.
• Pajisjet mbrojtëse personale (PPE): Always wear safety glasses or goggles when operating the compressor or air tools. Hearing protection is recommended.
• Fëmijët dhe kalimtarët: Mbajini fëmijët dhe personat e paautorizuar larg kompresorit në punë.
• Mirëmbajtja: Disconnect the power supply before performing any maintenance or repairs.
• Niveli i vajit: Regularly check the oil level and ensure it is within the recommended range for lubricated compressors.

3. Konfigurimi

3.1 Shpaketimi dhe inspektimi

Carefully remove the compressor from its packaging. Inspect the unit for any signs of shipping damage. If damage is found, contact your retailer immediately.

3.2 Vendosja

Place the compressor on a firm, level surface to ensure stability and proper lubrication. Ensure there is adequate space around the unit for ventilation and access for maintenance. Do not place the compressor against a wall or in an enclosed space.

3.3 Oil Filling/Checking

As a lubricated compressor, it requires oil for operation. Before first use, or after extended storage, check the oil level using the dipstick or sight glass. Fill with the recommended compressor oil to the specified level if necessary. Refer to the oil cap or manual for the correct oil type.

3.4 Lidhja me energjinë elektrike

Connect the compressor's power cord to a suitable, grounded electrical outlet. Ensure the voltage and frequency match the specifications on the compressor's data plate.

3.5 Initial Run-in Procedure

For the first use, run the compressor with the tank drain valve open for approximately 15-20 minutes. This allows the internal components to properly seat and lubricate without building pressure. Close the drain valve after the run-in period.

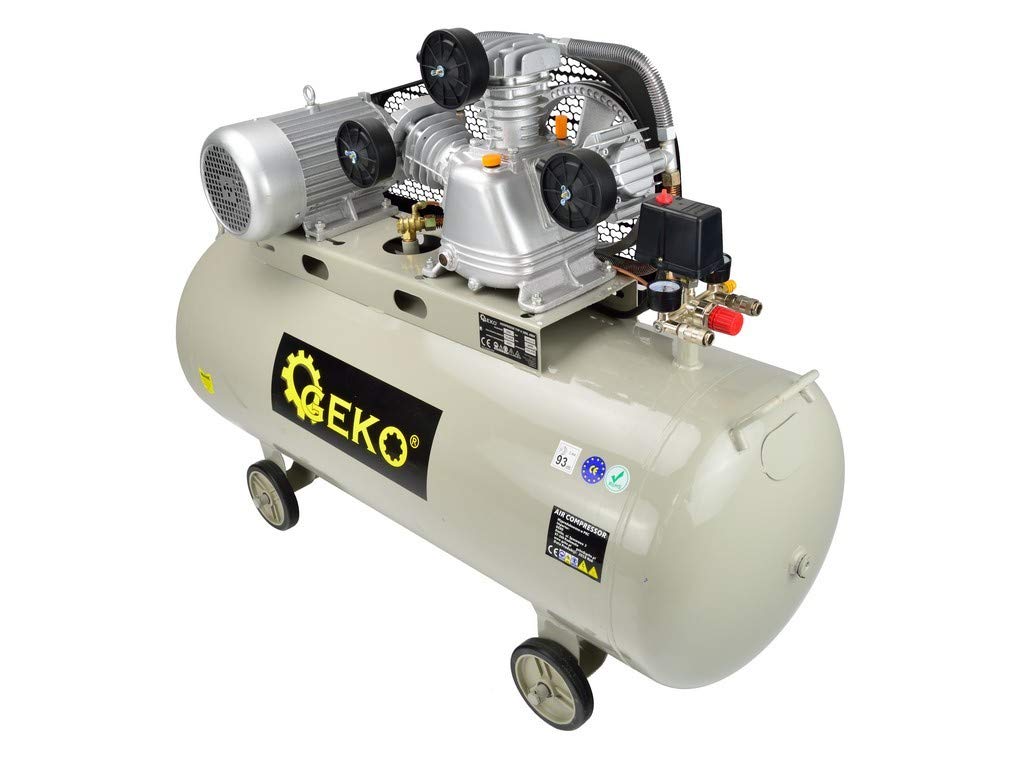

Image showing the Geko G80310 air compressor, highlighting its main components such as the motor, tank, and pressure gauges. This view is typical for initial setup and inspection.

4. Udhëzimet e funksionimit

4.1 Nisja e kompresorit

1. Ensure all connections are secure and the drain valve is closed.
2. Plug the compressor into the power outlet.
3. Turn the power switch to the 'ON' position. The compressor will start to build pressure.
4. The compressor will automatically shut off once the maximum pressure is reached.

4.2 Rregullimi i Presionit

Use the pressure regulator knob to adjust the output air pressure to suit your air tool's requirements. The output pressure gauge will display the regulated pressure.

4.3 Mbyllja

1. Turn the power switch to the 'OFF' position.
2. Unplug the compressor from the power outlet.
3. Slowly open the tank drain valve (located at the bottom of the tank) to release all air pressure. This is crucial for safety and to prevent moisture buildup.

5. Mirëmbajtja

Regular maintenance is vital for the longevity and safe operation of your compressor.

• Ditore: Drain condensation from the air tank. Check oil level.
• Weekly/Every 10-20 Operating Hours: Check air filter for cleanliness. Clean or replace if necessary. Inspect for air leaks.
• Monthly/Every 50 Operating Hours: Change compressor oil. Inspect all fasteners for tightness. Check safety valve operation (briefly pull the ring to ensure it releases air).
• Çdo vit: Have a qualified technician inspect the compressor for wear and tear, especially the pressure relief valve and tank integrity.

6. Troubleshooting

Ky seksion përshkruan problemet e zakonshme dhe zgjidhjet e tyre të mundshme.

7. Specifikimet

8. Garancia dhe Mbështetja

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. Warranty terms and conditions may vary. For technical support or service inquiries, please contact the manufacturer, Firma Handlowa GEKO, or your authorized service center.
