1. Hyrje
Thank you for choosing the Hisense RQ563N4SF2 Cross Door Refrigerator. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read it thoroughly before use and keep it for future reference.
2. Informacion i rëndësishëm për sigurinë
Ndiqni gjithmonë masat themelore të sigurisë kur përdorni pajisje elektrike për të zvogëluar rrezikun e zjarrit, goditjes elektrike dhe lëndimeve personale.
- Sigurohuni që pajisja të jetë e tokëzuar siç duhet.
- Mos e dëmtoni qarkun e ftohësit.
- Mbani hapjet e ventilimit pa pengesa.
- Mos përdorni pajisje mekanike ose mjete të tjera për të përshpejtuar procesin e shkrirjes, përveç atyre të rekomanduara nga prodhuesi.
- Mos përdorni pajisje elektrike brenda ndarjeve të ruajtjes së ushqimit, përveç nëse ato janë të tipit të rekomanduar nga prodhuesi.
- Hiqeni pajisjen nga priza përpara se ta pastroni ose të kryeni mirëmbajtje.
- Keep children away from packaging materials and the appliance.
3. Çfarë ka në kuti
Pas shpaketimit, sigurohuni që të gjithë përbërësit të jenë të pranishëm dhe të padëmtuar:
- Hisense RQ563N4SF2 Cross Door Refrigerator Unit
- Manuali i Përdoruesit (ky dokument)
- Kabllo energjie (i integruar)
- Adjustable Shelves and Drawers (pre-installed)
4. Konfigurimi dhe instalimi
4.1. vendosje
Place the refrigerator on a firm, level surface away from direct sunlight, heat sources (like stoves or radiators), and extreme cold. Ensure adequate ventilation around the appliance. Allow at least 10 cm of space at the back and sides for proper air circulation.
Figura 1: Refrigerator dimensions. The appliance measures 1810mm in height, 794mm in width, and 700mm in depth. This image also highlights key features like Total No Frost, Multi Air Flow, Elegant Design, and My Fresh Choice.
Figura 2: Mbiview of the Hisense RQ563N4SF2 refrigerator, showing its external dimensions and highlighting features such as Total No Frost, Multi Air Flow, Elegant Design, My Fresh Choice, and LED Display.
4.2. Nivelimi i pajisjes
Use the adjustable feet at the bottom of the refrigerator to ensure it is perfectly level. This prevents vibrations and ensures proper door sealing.
4.3. Lidhja e energjisë
Connect the refrigerator to a dedicated 220 Volt power outlet (Type C/EF - 2 pin EU/FR-DE hybrid plug). Do not use extension cords or adapters. After positioning, wait at least 2-4 hours before plugging in the appliance to allow the refrigerant to settle.
5. Udhëzimet e funksionimit
5.1. Paneli i kontrollit
The refrigerator features an internal control panel for managing settings. This panel allows you to adjust temperatures for different compartments and activate special functions.
Figura 3: Close-up of the internal LED control panel, showing options for Power (On/Off), Fridge, My Fresh Choice, Freezer Zone, Temperature adjustment, and various modes like Super Cool, Holiday, and Super Freeze. The "NO FROST" indicator is also visible.
Figura 4: A user adjusting settings on the LED display located inside the refrigerator, demonstrating easy access to temperature and mode controls.
5.2. Temperature Control and Features
- Totali pa ngrica: This technology prevents ice build-up in both the refrigerator and freezer compartments, eliminating the need for manual defrosting.
- Dual Tech Cooling: Provides separate temperature control for the refrigerator and freezer sections, optimizing conditions for different food types and preventing odor transfer.
- Moisture Fresh Crisper: Two separate adjustable drawers allow you to set humidity levels to keep fruits and vegetables fresh longer.
- Rrjedhje e shumëfishtë e ajrit: Ensures even distribution of cold air throughout the compartments, maintaining a stable temperature and quickly cooling newly added items.
- My Fresh Choice: A versatile compartment that can be converted between refrigerator and freezer temperatures, offering flexible storage options from -18°C (freezer) to +5°C (refrigerator).
- Modaliteti i pushimeve: Activates an energy-saving mode when you are away for an extended period, maintaining a higher temperature in the refrigerator compartment while the freezer operates normally.
- Funksioni SuperCool: Rapidly cools the refrigerator compartment, ideal for quickly chilling large quantities of newly added food.
- Go'n Save and Door Open Alarm: The appliance features an alarm that sounds if a door is left open for too long, helping to conserve energy and maintain optimal temperatures.
- Kompresori inverter: Provides stable temperature control, reduces noise, and improves energy efficiency.
Figura 5: Visual representation of the Total No Frost feature, illustrating how it prevents frost accumulation compared to traditional systems.
Figura 6: Brendshme view highlighting the Dual Tech Cooling system and the Moisture Fresh Crisper drawers, designed for optimal food preservation.
Figura 7: Diagram illustrating the Multi Air Flow system, showing how cold air circulates evenly throughout the refrigerator compartment.
Figura 8: The Multi Air Flow system in action, with blue arrows indicating the direction of cold air circulation within the refrigerator to ensure consistent cooling.
Figura 9: The My Fresh Choice compartment, demonstrating its ability to store items at different temperatures: 5°C for refrigeration, 1°C for beverages, -6°C for soft freezing, and -18°C for deep freezing.
Figura 10: An illustration of the My Fresh Choice zone, showing different temperature options for various food types, from refrigerator temperatures to deep freeze settings.
Figura 11: The Super Cool function rapidly cools the refrigerator compartment, indicated by blue lighting and circulating air, perfect for quickly chilling beverages and fresh produce.
Figura 12: A visual representation of the door alarm feature, showing a woman alerted by the refrigerator's sound, indicating an open door.
Figura 13: Diagram illustrating the Inverter Motor, highlighting its benefits: Low Noise, Energy Saving, and Money Saving.
6. Mirëmbajtja dhe Pastrimi
Pastrimi dhe mirëmbajtja e rregullt sigurojnë performancë optimale dhe jetëgjatësi të frigoriferit tuaj.
6.1. Pastrimi i Brendshëm
Before cleaning, unplug the appliance. Clean the interior with a soft cloth dampened with a solution of mild detergent and warm water. Rinse with clean water and dry thoroughly. Do not use abrasive cleaners, harsh chemicals, or sharp objects.
6.2. Pastrimi i pjesës së jashtme
Fshini sipërfaqet e jashtme me një të butë, damp cloth. For stainless steel finishes, use a specialized stainless steel cleaner. Ensure the door seals are clean and free from food particles to maintain efficiency.
6.3. Shkrirja
This appliance features Total No Frost technology, which automatically prevents ice build-up, eliminating the need for manual defrosting.
7. Troubleshooting
Para se të kontaktoni shërbimin, referojuni problemeve dhe zgjidhjeve të zakonshme të mëposhtme:
| Problem | Shkaku i mundshëm | Zgjidhje |
|---|---|---|
| Frigoriferi nuk ftohet | Fuqini jutage; plug not inserted correctly; temperature setting too high. | Check power supply; ensure plug is secure; adjust temperature setting lower. |
| Zhurmë e tepërt | Appliance not level; objects vibrating against the unit; normal compressor operation. | Adjust leveling feet; ensure nothing is touching the refrigerator; some noise from the inverter compressor is normal. |
| Tingujt e alarmit të derës | Door left open; door seal obstructed. | Close the door completely; clear any obstructions from the door seal. |
| Uji në dysheme | Drain hole blocked; condensation. | Clear the drain hole (usually at the back of the fridge compartment); this is normal for high humidity environments. |
8. Specifikimet
Detailed technical specifications for the Hisense RQ563N4SF2 Refrigerator:
| Veçori | Detaj |
|---|---|
| Emri i modelit | RQ563N4SF2 |
| Markë | Hisense |
| Konfigurimi | Cross Door (Multi-door) |
| Ngjyra | E zezë |
| Kapaciteti total | 454 litra |
| Kapaciteti Neto i Frigoriferit | 294 litra |
| Kapaciteti neto i ngrirësit | 160 litra |
| Dimensionet (DxWxH) | 70.0 cm x 79.4 cm x 181.0 cm |
| Pesha | 100 kilogramë |
| Klasa e Efiçiencës së Energjisë | E |
| Konsumi Vjetor i Energjisë | 279 kWh/vit |
| Niveli i zhurmës | 40 dB |
| Sistemi i shkrirjes | Automatic (NoFrostPlus) |
| Lloji i kompresorit | Inverter Compressor (rotary_scroll or rotary_screw) |
| Vëlltage | 220 Volt |
| Karakteristika të veçanta | Large Capacity, Metal Cooling, Automatic Defrosting, Dual Tech Cooling, Moisture Fresh Crisper, Multi Air Flow, HolidayMode, SuperCool, My Fresh Choice, Door Alarm |
| Numri i Dyerve | 4 |
| Numri i rafteve | 4 |
| Ftohës | R-32 ose R-600A |
Figura 14: The energy label for the Hisense RQ563N4SF2, indicating an energy class E, annual consumption of 279 kWh, freezer capacity of 160 L, refrigerator capacity of 294 L, and a noise level of 40 dB. For more details, refer to the Baza e të dhënave EPREL.

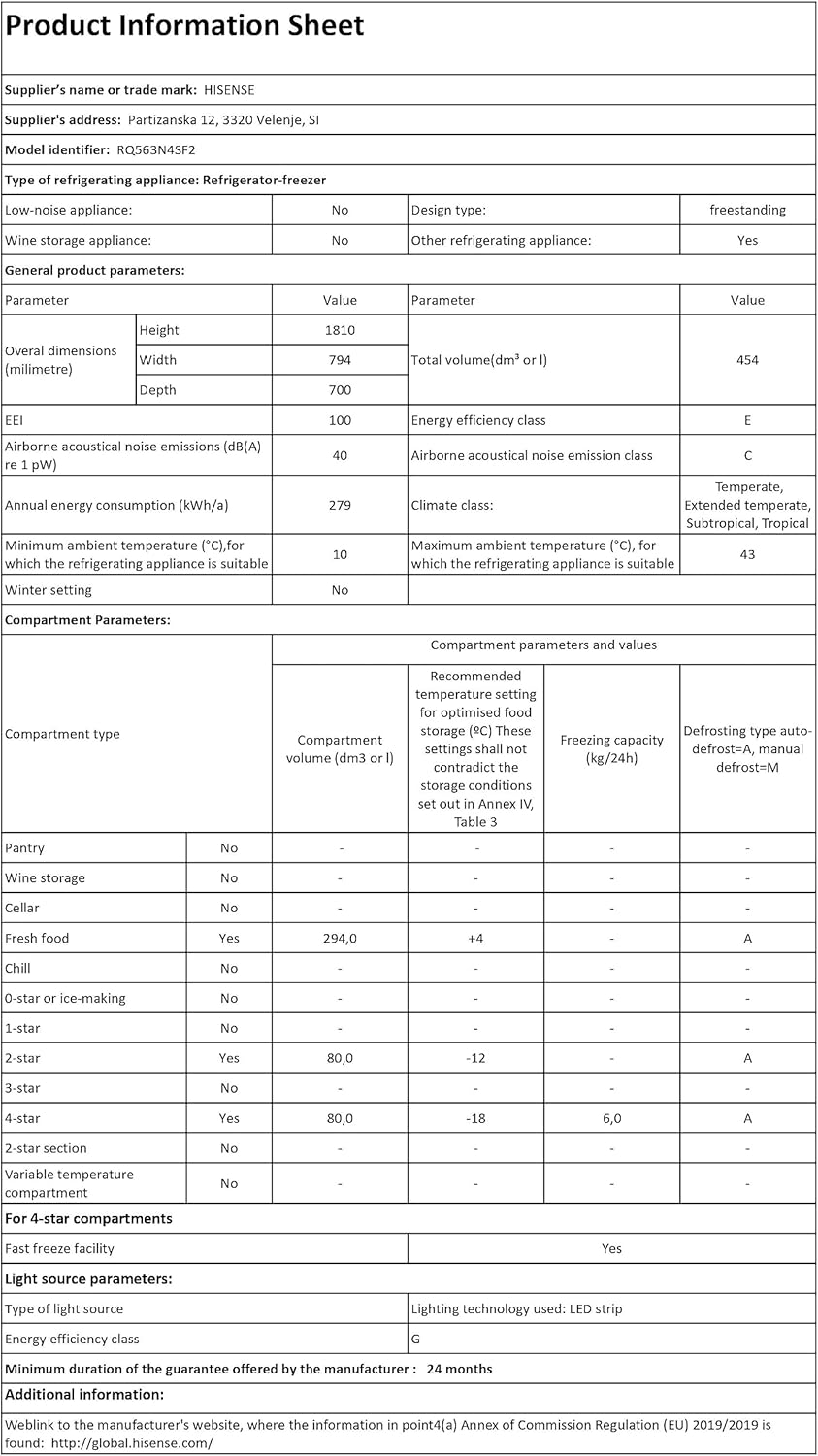

Figura 15: The official Product Information Sheet for the Hisense RQ563N4SF2, detailing various parameters including dimensions, energy efficiency, noise emissions, climate class, and compartment capacities.
9. Informacioni i garancisë
This Hisense RQ563N4SF2 Refrigerator comes with a Garanci 2-vjeçare e prodhuesit. Please retain your proof of purchase for any warranty claims. The warranty covers defects in materials and workmanship under normal use. For full terms and conditions, please refer to the warranty card included with your product or contact Hisense customer service.
10. Mbështetja e klientit
For further assistance, technical support, or to inquire about spare parts, please visit the official Hisense webfaqen e internetit ose kontaktoni departamentin e shërbimit ndaj klientit. Gjithashtu mund të gjeni më shumë informacion në Hisense Brand Store on Amazon.
