Hyrje
The Sennheiser EW-D SKM-S BASE SET (R4-9) is a versatile and feature-rich digital wireless system designed for vocalists and speakers. This system provides seamless product pairing and management through the EW-D Smart Assist App, ensuring reliable performance for daily use on stage or in professional environments. Its robust metal housing ensures durability.
Karakteristikat kryesore përfshijnë:
- Digital wireless technology to eliminate noise, interference, and static bursts.
- UHF transmission for enhanced range, reliability, and scalability.
- A mobile application (Smart Assist App) to streamline setup and operation, simplifying complex menu navigation.
- Automated setup for quick and reliable connections.
- 56 MHz bandwidth, supporting up to 90 channels for flexible operation.
Konfigurimi
Follow these steps to set up your Sennheiser EW-D SKM-S BASE SET:
- Shpaketimi dhe inspektimi: Carefully unpack all components. Ensure the package contains the EW-D EM receiver, EW-D SKM-S handheld transmitter, microphone clip, power supply, antenna, rackmount kit, and two AA batteries.
- Vendosja e marrësit: Position the EW-D EM receiver in a stable location, ensuring clear line-of-sight to the transmitter and away from potential sources of interference.
- Lidhja e antenës: Attach the two included antennas to the antenna connectors on the rear of the EW-D EM receiver.
- Lidhja e energjisë: Connect the power supply to the receiver's power input and plug it into an appropriate power outlet.
- Lidhja e daljes audio: Connect the receiver's XLR audio output to your mixing console, audio interface, or amplifier using a standard XLR cable.
- Instalimi i baterisë së transmetuesit: Open the battery compartment of the EW-D SKM-S handheld transmitter. Insert the two AA batteries, observing the correct polarity.
- Ndezja: Power on the receiver and then the handheld transmitter. The receiver display should illuminate.
- Initial Pairing (Sync): The system is designed for automated setup. For initial pairing or if connection is lost, use the Smart Assist App or the receiver's sync function to establish a connection between the receiver and transmitter.

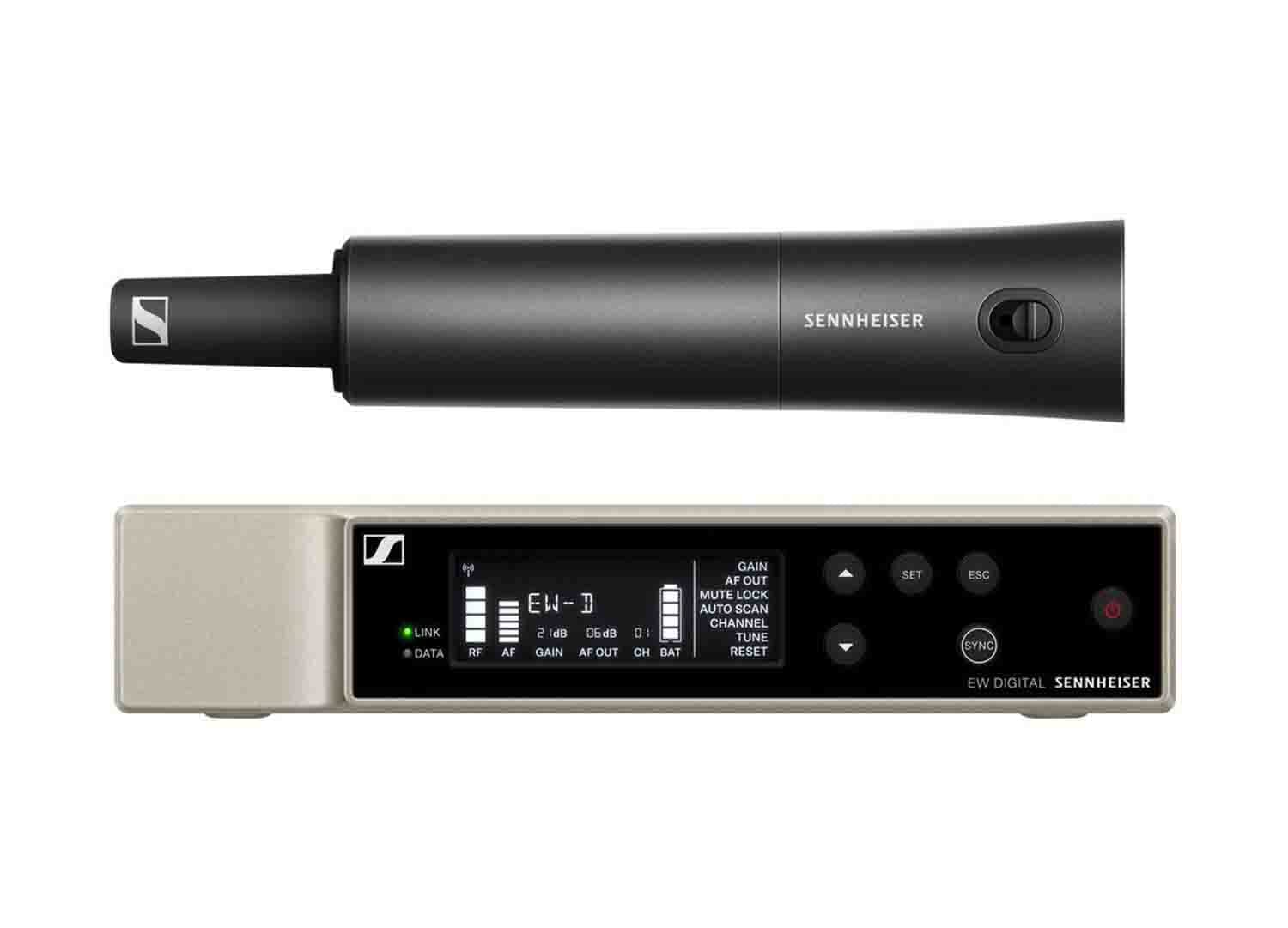

Image: The Sennheiser EW-D SKM-S BASE SET, showing the digital wireless receiver and handheld microphone transmitter.
Operative
Once set up, operating your EW-D SKM-S BASE SET is straightforward:
- Ndezja/Fikja e energjisë: Press and hold the power button on both the receiver and transmitter to turn them on or off.
- Rregullimi i fitimit: Adjust the input gain on the receiver to prevent clipping and ensure optimal audio levels. This can often be done via the receiver's menu or the Smart Assist App.
- Menaxhimi i frekuencës: The system automatically finds the clearest frequencies. If interference occurs, use the receiver's scan function or the Smart Assist App to find and assign new frequencies. The 56 MHz bandwidth allows for a wide selection of up to 90 channels.
- Smart Assist App: Download and install the Sennheiser Smart Assist App on your mobile device. Connect to your EW-D system via Bluetooth for remote control, monitoring, and advanced configuration. The app simplifies frequency coordination, channel naming, and system status checks.
- Monitorimi: Use the receiver's display to monitor battery status, signal strength, and audio levels.
Image: The Sennheiser Smart Assist App interface, demonstrating remote control and monitoring capabilities for the wireless system.
Mirëmbajtja
Proper maintenance ensures the longevity and optimal performance of your wireless system:
- Ndërrimi i baterisë: Replace the AA batteries in the handheld transmitter when the battery indicator shows low power. Always use fresh, high-quality alkaline batteries for best performance.
- Pastrimi: Use a soft, dry cloth to clean the exterior of the receiver and transmitter. For the microphone grille, gently wipe with a slightly damp cloth and ensure it is completely dry before use. Avoid using abrasive cleaners or solvents.
- Magazinimi: When not in use, store the system in a dry, cool place, away from direct sunlight and extreme temperatures. Remove batteries from the transmitter if storing for extended periods to prevent leakage.
- Trajtimi: The transmitter features a robust metal housing, but avoid dropping or subjecting it to excessive impact to prevent damage to internal components.
Zgjidhja e problemeve
If you encounter issues with your Sennheiser EW-D SKM-S BASE SET, refer to the following common problems and solutions:
| Problem | Shkaku i mundshëm | Zgjidhje |
|---|---|---|
| No sound or low audio output | Transmitter off, low battery, incorrect gain, receiver not connected, frequency mismatch. | Ensure transmitter is on and batteries are fresh. Check receiver's gain settings. Verify XLR cable connection. Resync transmitter and receiver frequencies. |
| Ndërhyrje ose zhurmë statike | Conflicting radio frequencies, obstacles blocking signal, excessive distance. | Perform a frequency scan on the receiver or via the Smart Assist App to find a clear channel. Ensure clear line-of-sight between transmitter and receiver. Reduce operating distance. |
| Transmitter not pairing with receiver | Incorrect sync procedure, transmitter out of range, receiver in a different mode. | Initiate the sync process on both devices (refer to the Smart Assist App for guidance). Ensure transmitter is within range. Check receiver's operating mode. |
| Jetëgjatësia e shkurtër e baterisë | Old or low-quality batteries, continuous use. | Use new, high-quality alkaline batteries. Consider rechargeable batteries if supported by the device and manufacturer. |
Specifikimet
Detailed technical specifications for the Sennheiser EW-D SKM-S BASE SET (R4-9):
| Veçori | Detaj |
|---|---|
| Numri i modelit | 508762 |
| Pesha e artikullit | 6.17 paund |
| Dimensionet e produktit | 16.3 x 14.75 x 3.15 inç |
| Pajisjet e përputhshme | Audio Player, DJ Mixer, Instrument, Microphone, Other Auxiliary Equipment |
| Lloji i lidhësit | XLR |
| Lloji i materialit | Metal |
| Lloji i baterisë (transmetues) | Alkaline (AA) |
| Burimi i energjisë | Battery Powered (Transmitter), AC Adapter (Receiver) |
| Brezi i frekuencës | R4-9 (Specific UHF range) |
| Gjerësia e brezit | 56 MHz |
| Kanalet maksimale | Deri në 90 |
Informacioni i Garancisë
Warranty details for the Sennheiser EW-D SKM-S BASE SET (R4-9) are typically provided with the product packaging or can be found on the official Sennheiser website. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the documentation included with your product or visit the manufacturer's support page.
Mbështetje
For further assistance, technical support, or to download the latest version of the Smart Assist App, please visit the official Sennheiser webfaqe:
Gjithashtu mund të gjeni pyetje të shpeshta dhe informacione kontakti për shërbimin ndaj klientit në faqen e tyre të internetit. webfaqe.
