Hyrje
Thank you for choosing the Briloner Flexible Bedside Reading Lamp, Model 2079-016. This lamp is designed to provide adjustable illumination for reading and other activities, featuring a flexible arm and a convenient toggle switch. Please read this manual carefully before installation and use to ensure safe and optimal performance.
Image: The Briloner Flexible Bedside Reading Lamp in white, featuring a flexible gooseneck arm and a conical shade.
Udhëzimet e sigurisë
Për të parandaluar lëndime ose dëmtime, gjithmonë ndiqni këto masa themelore të sigurisë:
- Sigurohuni që furnizimi me energji voltage përputhet me lampKërkesat e tij (230 volt).
- Mos u përpiqni ta modifikoni ose riparoni l-nëamp veten. Kontaktoni personel të kualifikuar për shërbim.
- Shkëputeni gjithmonë lamp nga priza e energjisë përpara se të pastroni ose zëvendësoni llambën.
- Shmangni ekspozimin e lamp to moisture or extreme temperatures. This product has an IP20 rating, meaning it is protected against solid objects over 12.5mm but not against water.
- Përdorni vetëm llamba E27 me fuqi maksimale.tage prej 10 Watts.
- Mbani lamp larg materialeve të ndezshme.
Përmbajtja e paketës
Sigurohuni që të gjithë përbërësit janë të pranishëm para se të filloni instalimin:
- Briloner Fleksibël për Lexim në Shtrat Lamp (Modeli 2079-016)
- Pajisjet e Montimit (vida, priza muri)
- Integrated power cable with plug (180 cm)
Note: The light bulb is not included and must be purchased separately. An E27 bulb with a maximum of 10 Watts is required.
Udhëzuesi i instalimit
Kjo lamp is designed for wall mounting. Follow these steps for secure installation:
- Zgjidhni vendndodhjen: Select a suitable wall location near a power outlet. Consider the lamp's dimensions (630mm H, base 40x40mm, head 140mm D) and the 50cm flexible arm for optimal positioning.
- Shënoni pikat e shpimit: Mbajeni lamp's mounting plate against the wall at the desired height and mark the positions for the mounting screws.
- Vrimat e shpimit: Drill holes at the marked points. Insert the appropriate wall plugs (if necessary, depending on wall material).
- Siguro Lamp: Bashkangjisni lamp's mounting plate to the wall using the provided screws. Ensure it is firmly secured.
- Fut llambën: Carefully screw an E27 bulb (max. 10W) into the lamppriza e 's.
- Lidhni fuqinë: Plug the 180 cm power cable into a standard 230V AC wall outlet.
Image: Diagram illustrating the lamp's dimensions, showing a height of 570mm and a horizontal reach of 410mm from the base.
Imazh: lamp installed on a wall, showing the integrated supply cable with a plug connected to a power outlet.
Operating Your Lamp
The Briloner Flexible Bedside Reading Lamp is designed for ease of use:
- Ndezja/Fikja e energjisë: Use the toggle switch located on the square base of the lamp për të ndezur ose fikur dritën.
- Rregullimi i drejtimit të dritës: The 50 cm flexible tube allows you to bend and pivot the lamp head individually. This enables direct light for reading or indirect light for ambient illumination.
Image: Icons representing the lamp's features: a switch for power control, an E27 base for the bulb, and an adjustable symbol for the flexible arm.

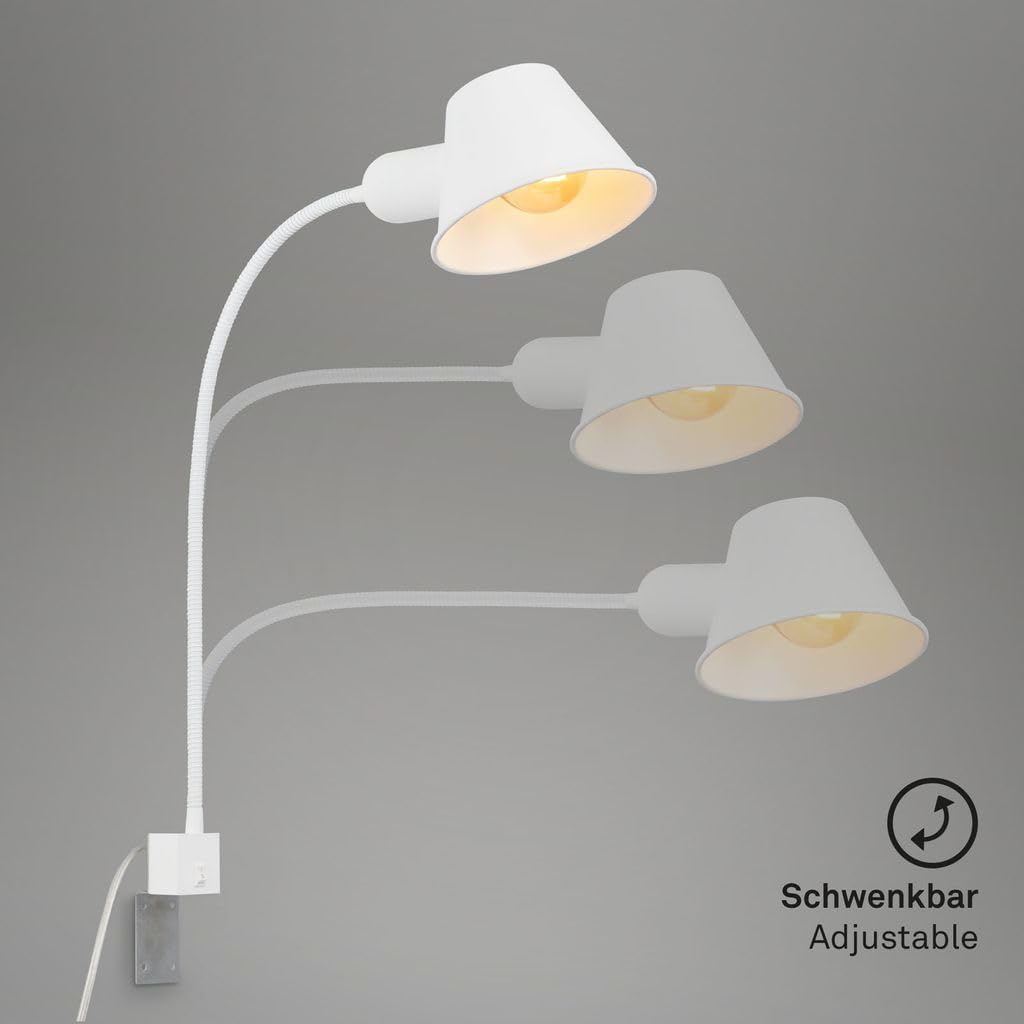

Image: A visual representation showing three instances of the lamp, each with its flexible arm adjusted to a different position, highlighting its versatility.
Kujdesi dhe mirëmbajtja
Proper care ensures the longevity and performance of your lamp:
- Pastrimi: Përpara pastrimit, hiqeni gjithmonë lamp. Fshij lamp me një leckë të butë dhe të thatë. Mos përdorni pastrues ose tretës gërryes, pasi këto mund të dëmtojnë sipërfaqen.
- Zëvendësimi i llambës: Sigurohuni që lamp is unplugged and the bulb has cooled down before attempting to replace it. Unscrew the old E27 bulb and screw in a new E27 bulb (max. 10W).
Zgjidhja e problemeve
If you encounter issues with your lamp, referojuni tabelës së mëposhtme:
| Problem | Shkaku i mundshëm | Zgjidhje |
|---|---|---|
| Lamp nuk ndizet | Nuk ka furnizim me energji elektrike Llambë e gabuar Mosfunksionimi i çelësit | Kontrolloni nëse spina është futur mirë në prizë. Provoni prizën me një pajisje tjetër. Replace the bulb with a new E27 bulb (max. 10W). Ensure the toggle switch is in the 'ON' position. |
| Drita dridhet | Llambë e lirshme Llambë e papajtueshme Furnizimi me energji i paqëndrueshëm | Shtrëngoni llambën në prizë. Ensure the bulb is E27 and within the 10W limit. Check the power outlet for stability. |
| Flexible arm does not hold position | Veshin dhe gris | While some flexibility is normal, if the arm consistently fails to hold position, contact customer support. |
Specifikimet Teknike
| Veçori | Specifikimi |
|---|---|
| Markë | Briloner |
| Numri i modelit | 2079-016 |
| Dimensionet (H x P x D) | 630mm (H), Base 40x40mm, Head 140mm (D) |
| Pesha | 560 gram |
| Materiali | Metal, Plastike |
| Ngjyra | Mat i bardhë |
| Prizë me llambë | E27 |
| Maks. Wattage | 10 Watts |
| Vëlltage | 230 volt |
| Lloji i ndërprerësit | Ndrysho Ndërprerësin |
| Gjatësia e Kabllit | 180 cm |
| Vlerësimi IP | IP20 |
| Lloji i instalimit | Montimi në mur |
Informacioni i prodhuesit
Briloner Leuchten GmbH is a German family-owned company with over 40 years of experience in manufacturing lighting solutions. They focus on product management, design, and sustainable practices.
For further assistance or inquiries, please refer to the retailer where the product was purchased.
