Panasonic Digital Cordless FAX KX-PD750DL-N User Manual

1. Hyrje

This manual provides comprehensive instructions for the Panasonic Digital Cordless FAX KX-PD750DL-N. This advanced device integrates a digital cordless telephone with a fax machine, offering a range of features designed for convenience and security. Key functionalities include an integrated temperature and humidity alarm, robust nuisance call prevention and consultation features, and a "View Before Printing" function for faxes, which helps conserve paper and ink.

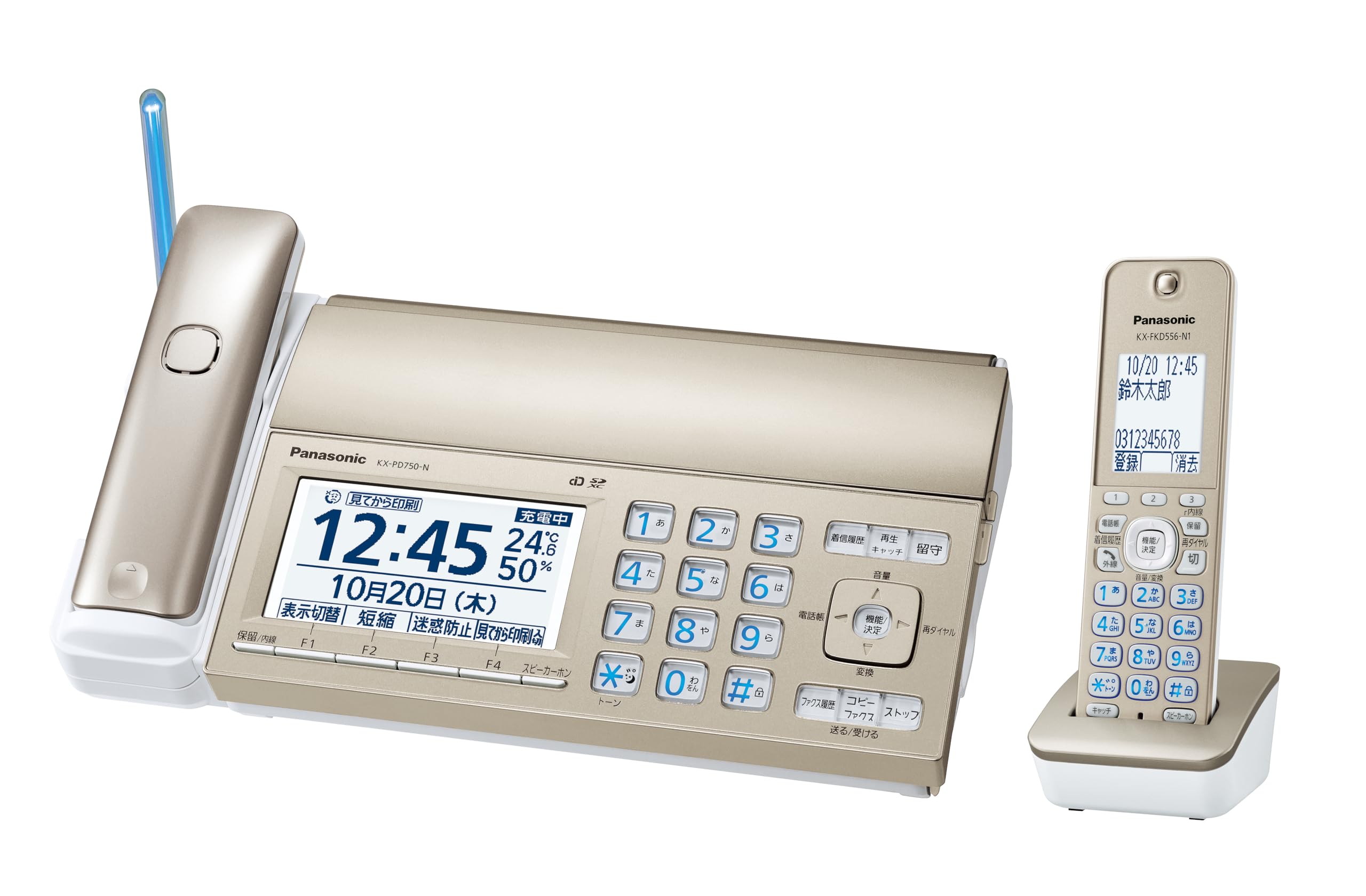

Main unit and cordless handset of the Panasonic KX-PD750DL-N Digital Cordless FAX.

2. Informacion mbi sigurinë

Ju lutemi lexoni me kujdes të gjitha udhëzimet e sigurisë përpara se të përdorni pajisjen. Ruajeni këtë manual për referencë në të ardhmen.

• Mos e ekspozoni njësinë ndaj shiut ose lagështisë.
• Shmangni vendosjen e pajisjes pranë burimeve të nxehtësisë ose në rrezet e diellit direkte.
• Use only the power adapter and batteries supplied with the unit.
• Mos u përpiqni ta çmontoni ose riparoni vetë njësinë. Kontaktoni personelin e kualifikuar të shërbimit.
• Mbajeni njësinë jashtë mundësive të fëmijëve.
• Siguroni ventilimin e duhur rreth njësisë.

3. Konfigurimi

3.1 Shpaketimi

Hiqni me kujdes të gjithë përbërësit nga paketimi. Sigurohuni që të gjitha artikujt e listuar në listën e paketimit janë të pranishëm. Ruajeni paketimin për transport ose ruajtje në të ardhmen.

3.2 Connecting the Main Unit

1. Connect the power adapter to the main unit and then to a power outlet.
2. Connect the telephone line cord to the main unit and then to your telephone wall jack.

3.3 Handset Setup

1. Insert the supplied rechargeable battery into the cordless handset.
2. Place the handset on the charging cradle. Allow it to charge for at least 7 hours before initial use.

The cordless handset and main unit, illustrating the cordless design for flexible placement.

3.4 Cilësimet fillestare

Follow the on-screen prompts on the main unit's LCD to set the date, time, and other basic preferences. Refer to the detailed comparison table for feature differences between models.

Comparison table highlighting features like LCD size, cordless handset, temperature/humidity alarm, view before printing, and nuisance call consultation across different models.

4. Udhëzimet e funksionimit

4.1 Kryerja dhe marrja e thirrjeve

• Për të bërë një telefonatë: Ngrini celularin ose shtypni butonin e altoparlantit, pastaj formoni numrin.
• Për të marrë një telefonatë: Ngrini celularin ose shtypni butonin e altoparlantit kur të bjerë telefoni.
• The main unit features an incoming call notification LED. During a call, it lights up blue. For warning information, it flashes red.

The main unit and handset displaying the LED notification feature, with blue light for calls and red for warnings.

4.2 Fax Functionality: View Para Printimit

The KX-PD750DL-N allows you to receive faxes into memory and view them on the large 4.7-inch LCD screen before printing. This feature helps you decide which faxes are necessary to print, thereby saving paper and ink film.

1. When a fax is received, it will be stored in the unit's memory.
2. Navigate to the "View Before Printing" option on the LCD screen.
3. Review the fax content. You can zoom in or rotate the view.
4. Select to print only the necessary pages or delete unwanted faxes.

The large LCD screen displaying a received fax, with options to view and select for printing, demonstrating the "View Before Printing" function.

4.3 Nuisance Call Prevention and Consultation

This unit is equipped with advanced features to combat nuisance calls:

• Nuisance Prevention Function: Before the phone rings, the unit plays a warning message to the caller. This function is active for calls from numbers not registered in the phonebook, provided Caller ID service is enabled.
• Nuisance Call Consultation Function: If you receive a suspicious call, you can record the conversation. During the call, you can play back the recorded conversation to a third party (e.g., family member or police) for immediate consultation. Note: This function is not available on the cordless handset. During playback, the other party's voice is audible, but your voice is not transmitted to them.

An illustration depicting the "Nuisance Prevention" function, aiming to deter fraudulent calls before they connect.

An illustration showing a user consulting with family or police about a suspicious call using the "Nuisance Call Consultation" feature.

4.4 Alarmi i temperaturës dhe lagështisë

The main unit is equipped with a sensor that detects ambient temperature and humidity. It can alert you to conditions that may lead to heatstroke or excessive dryness. This feature is intended as a daily life guide and is not for medical, nursing, childcare, or professional use. It cannot prevent heatstroke or dryness.

• When temperature or humidity exceeds preset thresholds, the unit will provide voice alerts, display warnings on the LCD, and flash the incoming call notification LED in red.
• You can configure the unit to automatically call a pre-registered family member's mobile phone when heatstroke warning conditions are detected.
• This function needs to be activated and configured after purchase.

An illustration showing the main unit displaying temperature and humidity warnings, with accompanying voice alerts for heatstroke and dryness.

An illustration demonstrating how the unit can automatically notify a family member's mobile phone when heatstroke warning conditions are detected.

4.5 Karakteristika të tjera

• Selectable Standby Screen: Choose from four types of standby screen displays, including time, date, temperature, and humidity.
• Simple Power Outage Call: Në rast të një pushteti outage, the main unit can still make and receive calls for a limited time, provided a compatible battery pack (sold separately, KX-FAN57) is installed. This function is not available if using optical lines or communication devices that do not operate during power outages.
• Tastiera miqësore për përdoruesit: The keypad is designed for ease of use, featuring clearly labeled buttons for various functions.

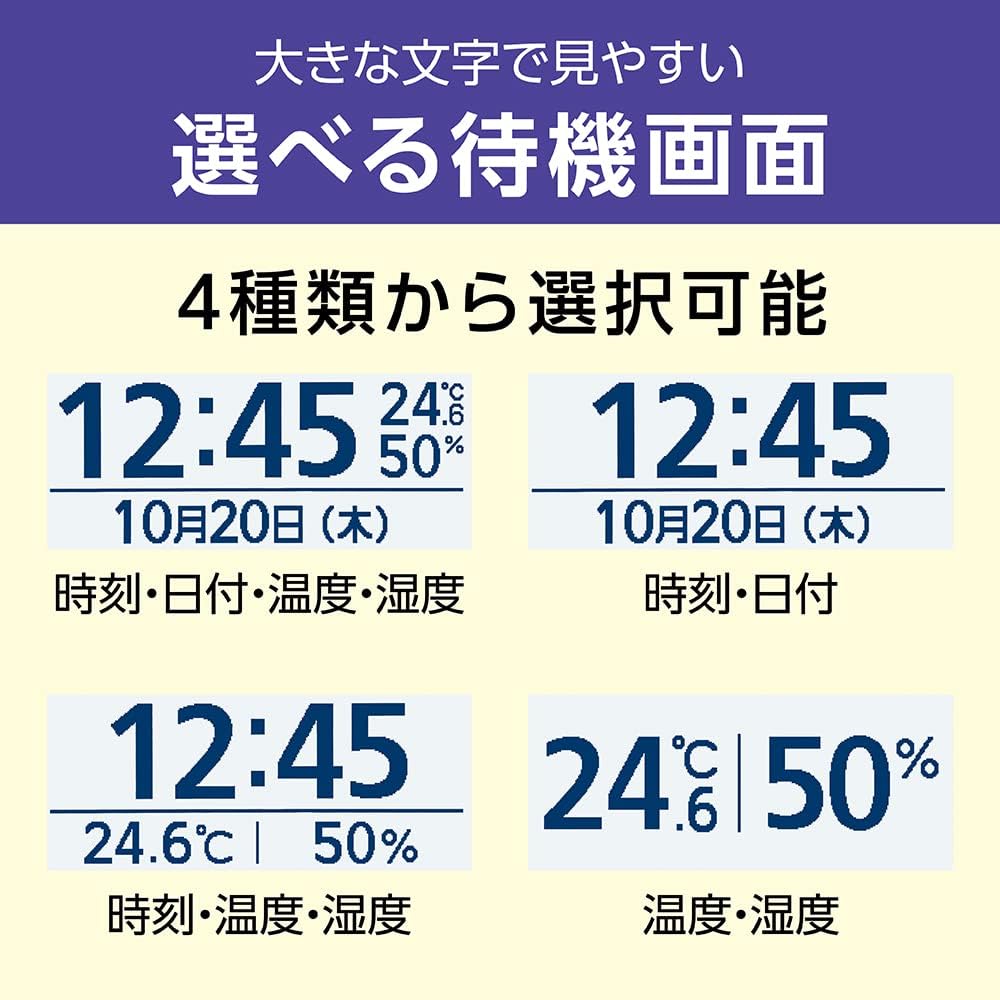

Katër ishamples of selectable standby screen displays on the main unit, showing various combinations of time, date, temperature, and humidity.

Një nga afër view of the main unit's keypad, highlighting its user-friendly design and clearly labeled buttons.

A list detailing the basic functions available on the Panasonic KX-PD750DL-N, including call recording, call rejection, voice change, and phonebook features.

5. Mirëmbajtja

5.1 Pastrimi i njësisë

To maintain optimal performance and appearance, regularly clean your unit.

• Wipe the exterior of the main unit and handset with a soft, dry cloth.
• Për papastërti kokëfortë, pakampLani leckën me ujë dhe sapun të butë, pastaj fshijeni menjëherë të thatë.
• Do not use abrasive cleaners, benzene, thinner, or any other chemical solvents, as they may damage the surface.
• Pastroni ekranin LCD me një leckë të butë dhe pa push.

5.2 Zëvendësimi i Materialeve të Konsumit

Refer to the specific instructions in the full product manual for details on replacing fax paper and ink film. Use only genuine Panasonic replacement parts to ensure proper operation and avoid damage.

6. Troubleshooting

If you experience issues with your Panasonic KX-PD750DL-N, please refer to the following common troubleshooting steps before contacting support.

7. Specifikimet

8. Garanci dhe Mbështetje

8.1 Informacioni i garancisë

This Panasonic product is covered by a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.

8.2 Mbështetja e klientit

For technical assistance, service, or further inquiries, please contact Panasonic customer support. Contact details can be found on the official Panasonic webnë faqen e internetit ose në dokumentacionin e produktit tuaj.

Online resources, including FAQs and additional manuals, may also be available on the Panasonic support webfaqe.
