Supermicro X13SEM-TF Motherboard Instruction Manual

1. Hyrje

Welcome to the instruction manual for the Supermicro X13SEM-TF motherboard. This document provides essential information for the proper installation, configuration, and maintenance of your motherboard. Please read this manual thoroughly before proceeding with any installation or operation.

The Supermicro X13SEM-TF is designed to support Intel Xeon SPR-SP CPUs with up to 56 cores and 350W TDP, featuring EBGPCH and 8-channel DDR5 memory support.

2. Produkti i Mbaruarview

Below is an image of the Supermicro X13SEM-TF motherboard, highlighting its key components.

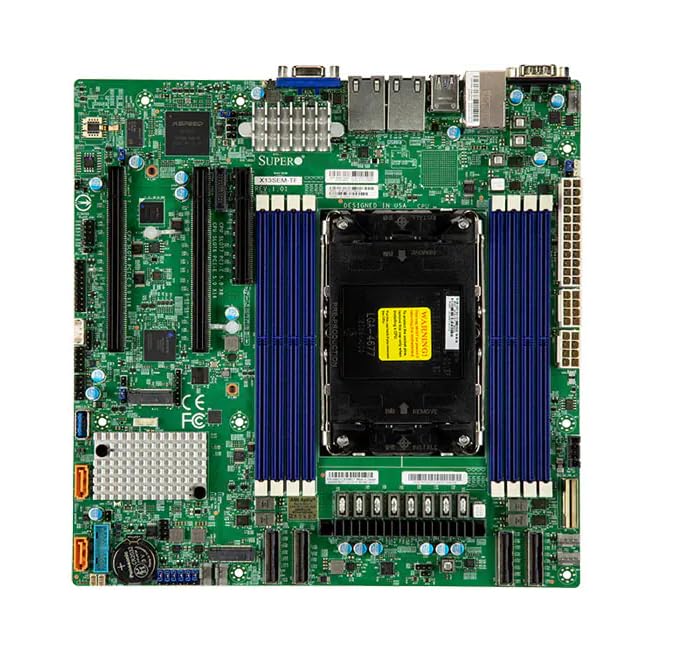

Image Description: This image displays the Supermicro X13SEM-TF motherboard. Key visible components include the large LGA 4677 CPU socket at the center, surrounded by eight DDR5 DIMM slots (blue). Various PCIe slots, SATA ports, USB headers, and power connectors are distributed across the green PCB. The rear I/O panel features USB ports, Ethernet ports, and a VGA port. Heatsinks are visible over the VRM and chipset areas.

3. Informacion mbi sigurinë

Always observe standard electrostatic discharge (ESD) precautions when handling the motherboard.

• Disconnect all power sources before installation or maintenance.
• Vishni një rrip dore antistatike.
• Avoid touching components directly unless necessary.
• Ensure proper ventilation within the system chassis.
• Refer to professional assistance if unsure about any procedure.

4. Konfigurimi dhe instalimi

4.1. Përmbajtja e paketës

Verifikoni që të gjithë përbërësit janë të pranishëm në paketim:

• Supermicro X13SEM-TF Motherboard
• I/O Shield (if not integrated)
• Kabllot SATA
• Manuali i Përdoruesit (ky dokument)
• Driver CD/USB (or download instructions)

4.2. Instalimi i motherboard

1. Përgatitni shasinë: Ensure the computer chassis is ready for motherboard installation. Install standoffs in the appropriate locations.
2. Instaloni Mburojen I/O: If provided separately, install the I/O shield into the chassis opening.
3. Montimi i Pllakës Amë: Carefully place the motherboard into the chassis, aligning it with the standoffs and I/O shield. Secure it with screws.
4. Instalimi i CPU-së:
   • Hapni levën e prizës së CPU-së.
   • Align the CPU (Intel Xeon SPR-SP) with the socket, matching the triangular markers.
   • Vendoseni butësisht CPU-në në prizë. Mos e shtypni me forcë.
   • Mbylleni levën e prizës për të siguruar CPU-në.
5. Instaloni ftohësin e CPU-së: Attach the compatible CPU cooler according to its manufacturer's instructions. Ensure proper thermal paste application.
6. Memoria e Instalimit (RAM):
   • Open the clips on the DDR5 DIMM slots.
   • Align the memory modules with the slots, ensuring the notch matches.
   • Press down firmly on both ends until the clips snap into place. Refer to the motherboard layout for optimal memory population.
7. Lidhni fuqinë:
   • Connect the 24-pin ATX main power connector.
   • Connect the 8-pin (or 4+4-pin) CPU power connector(s).
8. Lidhni pajisjet e ruajtjes: Connect SATA data and power cables to your storage drives (HDDs/SSDs) and the motherboard's SATA ports.
9. Connect Front Panel Headers: Connect the power switch, reset switch, HDD LED, power LED, and front panel USB/audio headers to their respective pins on the motherboard. Refer to the motherboard diagram for correct pin assignments.
10. Instaloni kartat e zgjerimit: Insert any necessary PCIe expansion cards (e.g., graphics cards, network cards) into the appropriate PCIe slots and secure them.

5. Udhëzimet e funksionimit

5.1. Ndezja fillestare

After completing all connections, connect the power supply to an electrical outlet and power on the system.

The system should boot to the BIOS/UEFI interface or an installed operating system.

5.2. Konfigurimi i BIOS/UEFI

To enter the BIOS/UEFI setup, press the designated key (usually DEL or F2) during startup.

Configure boot order, system time, and other necessary settings. Save changes before exiting.

5.3. Instalimi i shoferit

Install all necessary drivers for the motherboard chipset, network, audio, and any other integrated components. Drivers can be found on the Supermicro website or the provided driver media.

6. Mirëmbajtja

Regular maintenance ensures optimal performance and longevity of your motherboard.

• Heqja e pluhurit: Pastroni periodikisht pluhurin nga pllakën amë dhe përbërësit duke përdorur ajër të kompresuar. Sigurohuni që sistemi të jetë i fikur dhe i shkëputur nga priza.
• Përditësimet e BIOS/UEFI: Kontrolloni Supermicro website for BIOS/UEFI updates. Update only if necessary and follow the provided instructions carefully.
• Përditësimet e shoferit: Keep drivers updated for optimal compatibility and performance.
• Inspektimi fizik: Periodically inspect the motherboard for any signs of damage, loose connections, or bulging capacitors.

7. Troubleshooting

7.1. Nuk ka fuqi

• Kontrolloni të gjitha lidhjet e energjisë (ATX me 24 kunja, CPU me 8 kunja).
• Sigurohuni që furnizimi me energji elektrike të jetë i ndezur.
• Testoni furnizimin me energji me një sistem tjetër ose me një testues të furnizimit me energji.
• Verifikoni lidhjen e çelësit të energjisë në panelin e përparmë.

7.2. Nuk ka ekran

• Ensure the monitor is connected and powered on.
• Check if the graphics card (if dedicated) is properly seated and powered.
• Try reseating RAM modules.
• If using integrated graphics, ensure the CPU supports it and the display cable is connected to the motherboard's video output.

7.3. Jostabiliteti i Sistemit / Rrëzimet

• Kontrolloni temperaturat e CPU-së dhe GPU-së.
• Verify RAM is correctly installed and compatible.
• Ekzekutoni mjetet diagnostikuese të kujtesës.
• Sigurohuni që të gjithë shoferët janë të instaluar dhe të azhurnuar.
• Check for loose cables or components.

8. Specifikimet

9. Garancia dhe Mbështetja

9.1. Informacioni i garancisë

For detailed warranty information, please refer to the official Supermicro webfaqen e internetit ose kartën e garancisë të përfshirë me produktin tuaj.

9.2. Mbështetje Teknike

If you encounter issues that cannot be resolved using this manual, please contact Supermicro technical support.

Visit the official Supermicro website for support resources, driver downloads, and contact information: www.supermicro.com/support
