Hyrje
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Greenfinaqua® SunSun XDP-6000 DC Conversion Submersible Pump. Please read these instructions thoroughly before use and retain them for future reference.
The SunSun XDP-6000 is a DC 24V frequency conversion submersible pump designed for use in aquariums and fish tanks. It offers energy-efficient water circulation, oxygenation, and filtration support, contributing to a healthy aquatic environment.
Karakteristikat e produktit
- Dizajni i zhytësit: The pump is designed to be fully submerged in water, making it suitable for use in aquariums and fish tanks.
- Efikasiteti i energjisë: With a power consumption of 60 watts, it offers efficient operation while providing adequate flow and filtration.
- Funksionim i qetë: Designed to operate quietly, it won't disrupt the peaceful ambiance of your aquarium.
- Shumëfunksionale: This pump serves multiple purposes, including enhancing water circulation, oxygenating the water, and maintaining water quality in your tank.
Specifikimet
| Markë | GREENFIN AQUA COMPLETE AQUA PRODUCTS |
| Numri i modelit | XDP-6000 |
| Burimi i energjisë | DC 24V |
| Konsumi i energjisë | 60 W |
| Shpejtësia maksimale e rrjedhës | 6000 Liters Per Hour (L/H) |
| Maximum Lifting Height (H-max) | 5 metra |
| Madhësia e daljes | 32 mm |
| Gjatësia e Kabllit | 2m, 2.5m (varies by specific unit) |
| Materiali | Plastike |
| Pesha e artikullit | 4 kg |
| Dimensionet (Paketa) | 33.02 x 25.4 x 22.86 cm |
| Certifikimi | CE, GS |
Udhëzimet e sigurisë
Ndiqni gjithmonë masat themelore të sigurisë për të zvogëluar rrezikun e zjarrit, goditjes elektrike dhe lëndimeve të personave.
- Lexoni të gjitha udhëzimet përpara se të përdorni pajisjen.
- Sigurohuni që furnizimi me energji voltage matches the pump's requirements (DC 24V).
- Do not operate the pump dry. Always ensure the pump is fully submerged in water before connecting to power.
- Never pull the pump by its power cord.
- Disconnect the power supply before performing any maintenance, cleaning, or when the pump is not in use.
- Do not use the pump if the power cord or plug is damaged.
- This pump is designed for indoor aquarium use only. Do not use it for other purposes or in outdoor environments.
- Mbajeni jashtë mundësive të fëmijëve.
Udhëzimet e konfigurimit
- Shpaketimi: Hiqni me kujdes pompën dhe të gjitha aksesorët nga paketimi. Kontrolloni për çdo dëmtim.

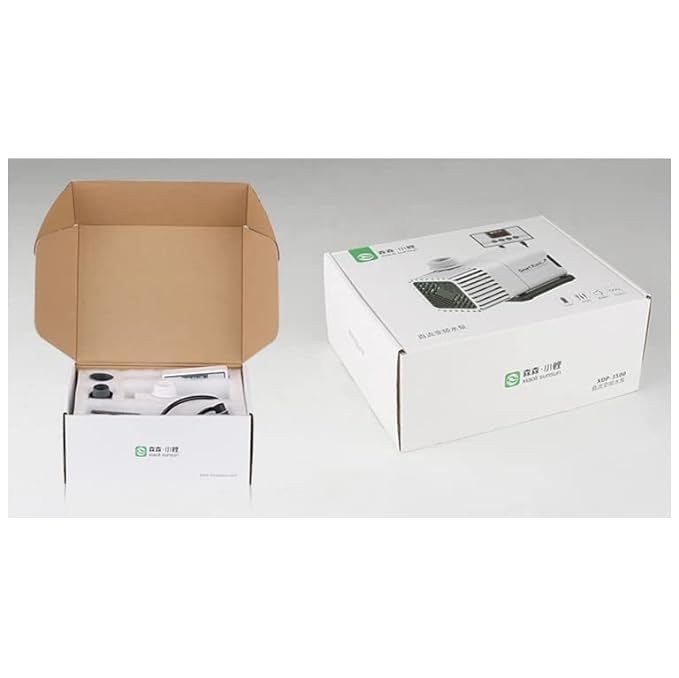

Image: The SunSun XDP-6000 pump and its components neatly packed within its retail box, ready for setup.
- Asambleja e komponentit:
- Attach the appropriate outlet nozzle or hose connector to the pump's discharge port. Ensure a secure fit to prevent leaks.
- If using an intake strainer, ensure it is properly attached to the pump's intake to prevent debris from entering.

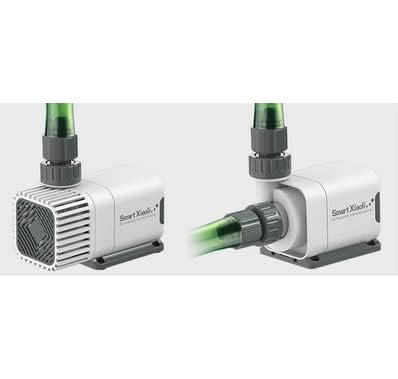

Imazh: Një pamje nga afër view of the SunSun XDP-6000 pump, showing the intake and outlet ports with a green hose connected to the discharge.
- Vendosja: Position the pump securely at the desired location within your aquarium or sump. Ensure it is fully submerged and stable. The pump can be placed horizontally or vertically.

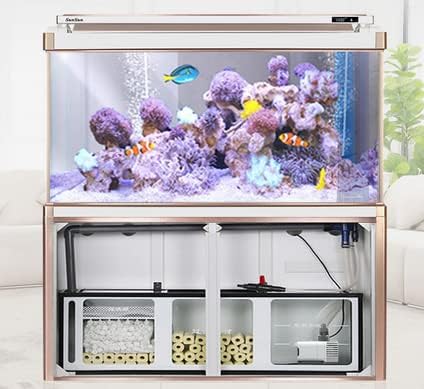

Imazh: Një ishample setup showing the SunSun XDP-6000 pump installed within the sump filtration system of an aquarium, demonstrating typical placement.
- Lidhja e energjisë: Connect the pump's DC plug to the provided power adapter. Then, plug the power adapter into a suitable electrical outlet. Ensure a drip loop is formed with the power cord to prevent water from traveling along the cord to the outlet.
Udhëzimet e funksionimit
- Fillimi fillestar: After ensuring the pump is fully submerged and all connections are secure, plug in the power adapter. The pump should start operating immediately, circulating water.
- Flow Adjustment (if applicable): Some models may feature flow control. Refer to the pump's controller (if included) for instructions on adjusting the flow rate.
- Monitorimi: Regularly observe the pump's operation to ensure proper water flow and quiet performance. Listen for unusual noises, which may indicate an issue.
- Mbyllni: To turn off the pump, simply unplug the power adapter from the electrical outlet.
Mirëmbajtja
Regular maintenance is crucial for the longevity and efficient performance of your pump.
- Shkëputni energjinë: Always unplug the pump from the power outlet before performing any maintenance.
- Pastrimi i shtytësit:
- Carefully remove the pump from the water.
- Disassemble the front cover and impeller housing according to the pump's design.
- Remove the impeller assembly.
Imazh: Një i detajuar view of the impeller component, which is responsible for water movement, shown partially submerged in water.
- Clean the impeller, shaft, and impeller housing thoroughly with a soft brush and clean water to remove any debris, algae, or mineral deposits.
- Reassemble the impeller and pump components, ensuring all parts are securely in place.
- Cleaning the Intake Strainer: Periodically clean the intake strainer to ensure unrestricted water flow and prevent clogging.
- Inspektimi i kabllove: Regularly inspect the power cord for any signs of damage, fraying, or cuts. If damage is found, discontinue use immediately.
Zgjidhja e problemeve
If your pump is not functioning as expected, refer to the following common issues and solutions:
| Problem | Shkaku i mundshëm | Zgjidhje |
|---|---|---|
| Pompa nuk fillon | No power; Impeller jammed; Damaged motor | Check power connection; Clean impeller; Contact support if motor is damaged. |
| Rrjedha e reduktuar e ujit | Clogged intake/impeller; Kinked hose; Low water level | Clean intake and impeller; Straighten hose; Ensure pump is fully submerged. |
| Zhurmë/dridhje e tepërt | Debris in impeller; Impeller worn or damaged; Pump not stable | Clean impeller; Inspect/replace impeller; Secure pump firmly. |
| Pompa ndalon me ndërprerje | Overheating (thermal protection); Loose connection | Ensure proper water circulation for cooling; Check power connections. |
Nëse problemi vazhdon pasi të provoni këto zgjidhje, ju lutemi kontaktoni mbështetjen e klientit.
Garancia dhe Mbështetja
This product may be covered by a manufacturer's warranty. Please refer to your purchase documentation for specific warranty terms and conditions. An optional 1-year extended warranty may be available for purchase.
For technical support, spare parts, or warranty claims, please contact Greenfinindia® customer service or visit their official store:
