Manuali i Përdoruesit të Marrësit Radiomaster R85C

1. Hyrje

This manual provides detailed instructions for the setup, operation, and maintenance of your Radiomaster R85C 5CH 4in1 2.4GH External Antenna PWM Receiver. Please read this manual thoroughly before using the product to ensure safe and optimal performance.

The Radiomaster R85C is a compact and high-performance receiver designed for RC cars and boats, featuring a built-in TCXO for stable frequency performance and support for multiple protocols.

2. Përmbajtja e paketës

Pas hapjes së paketimit, sigurohuni që të gjithë përbërësit të jenë të pranishëm dhe në gjendje të mirë:

• 1 x Radiomaster R85C Receiver
• 1 x Kartë Përdoruesi (Udhëzues i Shpejtë për Nisje)

Figura 2.1: The Radiomaster R85C receiver and its accompanying user card, sealed in clear plastic packaging.

3. Specifikimet

The following table details the technical specifications of the Radiomaster R85C receiver:

Figura 3.1: Anash view of the Radiomaster R85C receiver with its length (31.00mm), width (18.50mm), and height (13.00mm) clearly indicated.

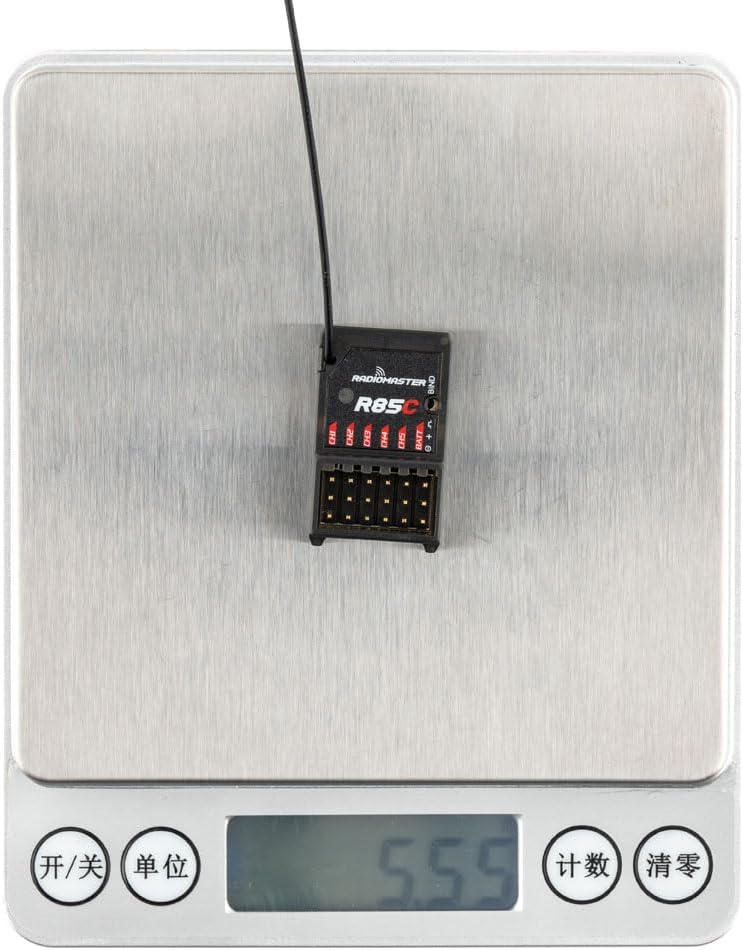

Figura 3.2: The Radiomaster R85C receiver placed on a digital scale, displaying a weight of 5.55 grams, confirming its lightweight design.

4. Setup and Binding

Before operating your R85C receiver, it must be properly connected and bound to your compatible transmitter. The R85C supports D8, D16, and SFHSS protocols.

4.1 Receiver Layout

Figura 4.1: Top view of the Radiomaster R85C receiver, highlighting the five PWM output channels (CH1-CH5), battery input (BATT), and the bind button.

Figura 4.2: A detailed close-up of the Radiomaster R85C receiver's top surface, clearly showing the labels for channels CH1 through CH5, the BATT port, and the 'BIND' button.

Figura 4.3: Një këndor view of the Radiomaster R85C receiver, showcasing the gold-plated pin headers for connecting servos and power, along with the integrated antenna.

Figura 4.4: A different angled perspective of the Radiomaster R85C receiver, providing a clear view of its compact form factor and the external antenna extending from the unit.

4.2 Procedura e detyrueshme

Follow these steps to bind your R85C receiver to your transmitter:

1. Power On Receiver in Bind Mode: Ndërsa mbani të shtypur LIND button on the R85C receiver, connect power (4.5 - 8.4V) to the BATT port. The LED on the receiver should start flashing rapidly, indicating it is in bind mode.
2. Set Transmitter to Bind Mode: On your compatible Radiomaster transmitter (or other D8/D16/SFHSS compatible transmitter), navigate to the model setup menu and select the appropriate protocol (D8, D16, or SFHSS). Initiate the binding process on the transmitter.
3. Confirm Binding: Once the binding is successful, the LED on the R85C receiver will turn solid, indicating a successful connection.
4. Testi i lidhjes: Disconnect power from the receiver and then reconnect it normally (without holding the BIND button). The LED should immediately turn solid. Test all channels by moving the sticks on your transmitter to ensure proper control of connected servos or ESCs.

Note: Ensure your transmitter's RF module is set to the correct protocol (D8, D16, or SFHSS) that matches the receiver's capabilities. For D16 protocol, ensure the correct sub-protocol (e.g., FCC or LBT) is selected if applicable.

5. Operacioni

Once bound, the R85C receiver is ready for operation. Connect your servos, ESCs, or other PWM-controlled devices to the corresponding channels (CH1-CH5) on the receiver.

• Channel Assignment: Refer to your RC model's documentation or your transmitter's channel mapping to correctly assign functions (e.g., throttle, aileron, elevator, rudder) to the receiver's channels.
• Lidhja e energjisë: Ensure the power supply (4.5 - 8.4V) is connected to the BATT port. This can be from an ESC with a BEC, a dedicated receiver battery, or a UBEC.
• Vendosja e antenës: For optimal signal reception, position the external antenna away from carbon fiber, metal, or other conductive materials that could shield the signal. Ensure the antenna is extended and not coiled.
• Kontrolli i diapazonit: Always perform a range check before flying or operating your RC model to ensure reliable control. Follow your transmitter's instructions for performing a range check.

Figura 5.1: The Radiomaster R85C receiver with its external antenna fully extended, demonstrating the recommended orientation for optimal signal reception.

6. Mirëmbajtja dhe Kujdesi

Proper maintenance will extend the lifespan and ensure the reliability of your R85C receiver:

• Mbani të thatë: Protect the receiver from moisture and water. While designed for RC boats, direct water immersion should be avoided unless the receiver is housed in a waterproof enclosure.
• Pastërtia: Keep the receiver free from dust, dirt, and debris. Use a soft, dry brush or compressed air to clean if necessary.
• Mbrojtja fizike: Mount the receiver securely within your model to prevent vibrations and physical damage during operation.
• Inspektimi i antenës: Regularly inspect the antenna for any cuts, kinks, or damage. A damaged antenna can significantly reduce range and signal quality.
• Temperatura: Avoid operating the receiver in extreme temperatures.

7. Troubleshooting

If you encounter issues with your R85C receiver, refer to the following common problems and solutions:

8. Garancia dhe Mbështetja

Për informacion mbi garancinë dhe mbështetjen teknike, ju lutemi referojuni Radiomaster zyrtar webnë vend ose kontaktoni shitësin tuaj lokal. Ruajeni faturën e blerjes si provë blerjeje për kërkesat e garancisë.

zyrtare Webfaqe: www.radiomasterrc.com

Prodhuesi: Hobbyporter RC
