1. Hyrje
This manual provides detailed instructions for the assembly, operation, and maintenance of your YITAMOTOR 350LB 8 Cubic Feet Steel Dump Cart. Designed for versatility and durability, this tow-behind cart is ideal for transporting various materials around your property. Please read this manual thoroughly before use to ensure safe and efficient operation.
Key features include a high capacity of 350 pounds, a quick-release pedal mechanism with a detachable tailgate for easy loading and unloading, strong pneumatic wheels for rough terrain, and a universal hitch for compatibility with most lawn tractors, ATVs, and UTVs.
2. Informacion mbi sigurinë
- Always wear appropriate safety gear, including gloves and eye protection, during assembly and operation.
- Do not exceed the maximum load capacity of 350 pounds (8 cubic feet). Overloading can cause damage to the cart and towing vehicle, and may lead to loss of control.
- Ensure all bolts, nuts, and fasteners are securely tightened before each use. Regularly check for loose components.
- Operate the cart at a safe speed, especially on uneven terrain or slopes. Avoid sudden turns or stops.
- Be aware of your surroundings and any obstacles when towing the cart.
- Keep children and pets away from the cart during operation and when dumping materials.
- Do not modify the cart in any way, as this may compromise its structural integrity and safety.
- Store the cart in a dry, protected area when not in use to prevent rust and damage.
3. Përmbajtja e paketës
Before beginning assembly, verify that all parts are present and undamaged. Refer to the included parts list in your physical manual for specific component identification. Typical components include:
- Cart Bed Panels (sides, front, back, bottom)
- Asambleja e boshtit
- Rrotat (2)
- Krahu i goditjes
- Dumping Mechanism Components
- Hardware (bolts, nuts, washers, pins)
- Manuali i Udhëzimeve
4. Udhëzimet e Kuvendit
Assembly is required for this dump cart. Please follow the steps carefully. For a visual guide, refer to the assembly video below.
Video: Assembly and Usage Demonstration for the YITAMOTOR 350LB Heavy-Duty Tow Behind Dump Cart. This video provides a step-by-step visual guide for assembling the cart and demonstrates its key features in use.
Hapat e Asamblesë së Përgjithshme:
- Assemble the Cart Bed: Connect the side, front, back, and bottom panels using the provided hardware. Ensure all connections are secure.
- Attach the Axle and Wheels: Secure the axle assembly to the underside of the cart bed. Mount the wheels onto the axle, ensuring they are properly seated and secured with pins or caps.
- Install the Hitch Arm: Attach the hitch arm to the front of the cart bed, ensuring it is aligned correctly and all fasteners are tightened.
- Install the Dumping Mechanism: Assemble the pedal release and support components for the dumping function according to the diagrams.
Imazhi: Product dimensions overview. This image illustrates the overall size of the assembled dump cart, with key measurements for length, width, and height.

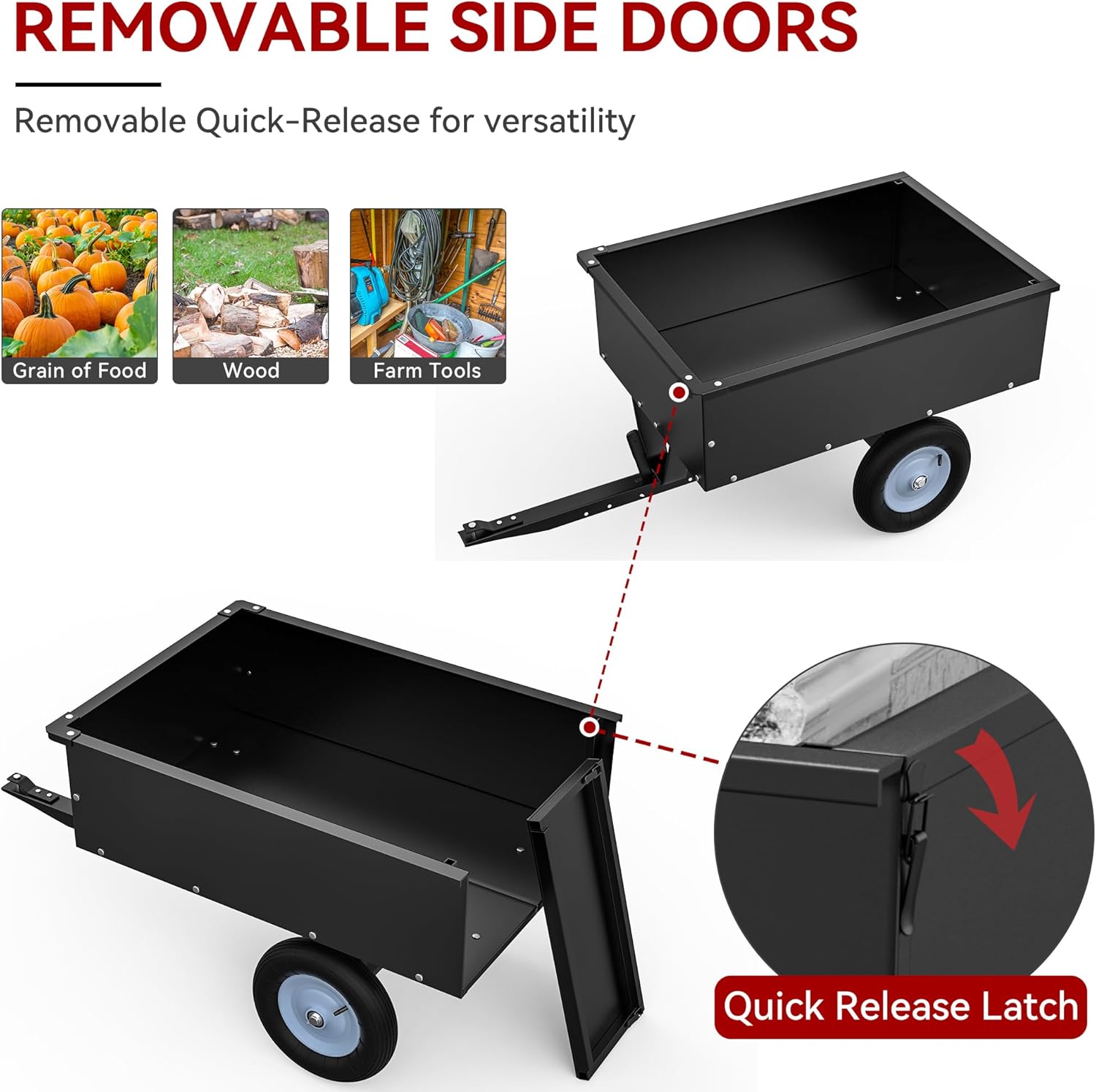

Imazhi: Removable Side Doors. This image demonstrates the versatility of the cart with its removable side doors and quick-release latch, allowing for easier loading and unloading of various items.
5. Udhëzimet e funksionimit
5.1 Hitching the Cart
The YITAMOTOR dump cart features a universal tow hitch designed for easy attachment to most lawn tractors, ATVs, and UTVs. Simply align the hitch arm with your vehicle's hitch point and secure it with the appropriate pin or coupling mechanism.
Imazhi: Easy to Install Universal Tow Hitch. This image shows the simple process of attaching the cart's universal hitch to a towing vehicle, highlighting its compatibility with various equipment.
5.2 Ngarkimi i Shportës
Load materials evenly into the cart bed, ensuring the weight does not exceed the 350-pound capacity. For bulky items, the removable side doors can be detached to facilitate loading. Avoid placing excessively heavy items on one side to maintain balance during transport.
Imazhi: 350LBS Load Capacity. This image visually confirms the cart's maximum load capacity, showing it being used to transport a substantial amount of firewood.
5.3 Transporting Materials
When transporting, drive at a moderate speed. The strong pneumatic wheels are designed to provide good elasticity, noise reduction, and impact resistance, allowing for easy maneuvering on various rough terrains, including gardens, sandy soil, and areas with manure or gardening tools.
Imazhi: Wide Application Scene. This image demonstrates the cart's suitability for various tasks and environments, from hauling gardening tools to moving soil or manure.
5.4 Dumping Materials
To dump the contents, activate the pedal release mechanism. This will allow the cart bed to tilt, typically at a 45-degree angle, for efficient unloading. The detachable tailgate can also be removed for complete material discharge.
Imazhi: Lever at Your Choice for Dumping. This image highlights the cart's easy dumping feature, showing the bed tilted to release its contents, facilitated by a simple lever mechanism.
6. Mirëmbajtja
- Pastrimi: After each use, clean the cart bed to remove any debris, especially if transporting corrosive materials. Rinse with water and dry thoroughly to prevent rust.
- Presioni i gomave: Regularly check the tire pressure. Maintain the recommended PSI (usually found on the tire sidewall) for optimal performance and longevity.
- Mbërthyes: Periodically inspect all bolts, nuts, and pins for tightness. Tighten any loose fasteners to ensure structural integrity.
- Lubrifikimi: Apply a light lubricant to moving parts, such as the axle and dumping mechanism pivots, to ensure smooth operation and prevent wear.
- Magazinimi: Store the cart in a dry, covered area to protect it from weather elements, which can cause rust and material degradation.
7. Troubleshooting
| Problem | Shkaku i mundshëm | Zgjidhje |
|---|---|---|
| Cart wobbles or pulls unevenly | Uneven load distribution, loose hitch connection, uneven tire pressure. | Distribute load evenly. Check and tighten hitch connection. Adjust tire pressure to recommended levels. |
| Difficulty dumping materials | Dumping mechanism jammed or stiff, excessive load. | Clear any obstructions from the mechanism. Lubricate pivot points. Reduce load if it exceeds capacity. |
| Tires losing air quickly | Puncture, valve stem issue, loose bead. | Inspect tires for damage. Repair or replace punctured tires. Check valve stem for leaks. |
| Zhurma e tepërt gjatë funksionimit | Loose fasteners, lack of lubrication on moving parts. | Check and tighten all bolts and nuts. Lubricate axle and dumping mechanism. |
8. Specifikimet
| Veçori | Detaj |
|---|---|
| Dimensionet e produktit | 51.5"D x 30.1"L x 27"H |
| Markë | YITAMOTOR |
| Materiali | Aliazh çeliku |
| Ngjyra | E zezë |
| Veçori e veçantë | E qëndrueshme |
| Përdorimet e rekomanduara | Në natyrë |
| Audienca e synuar | Unisex Adult |
| Asambleja e nevojshme | po |
| Numri i rrotave | 2 |
| Kapaciteti i peshës maksimale | 350 paund |
| Lloji i hedhësit | Pneumatike |
| Pesha e artikullit | 79 paund |
| Materiali i dorezës | Aliazh çeliku |
| Materiali i kornizës | Aliazh çeliku |
9. Garancia dhe Mbështetja
For warranty information or technical support, please refer to the documentation included with your purchase or contact YITAMOTOR customer service directly. Keep your purchase receipt and product model number handy for faster service.
Informacioni i kontaktit: Please visit the official YITAMOTOR webfaqe interneti ose referojuni paketimit të produktit tuaj për detajet më të fundit të kontaktit të mbështetjes së klientit.
