Brandson Silent Air Humidifier and Aroma Diffuser 2.5 Liters

1. Hyrje

Thank you for choosing the Brandson Silent Air Humidifier and Aroma Diffuser. This device is designed to improve indoor air quality by adding moisture to the air, diffusing essential oils for a pleasant aroma, and providing ambient lighting with its 7-color LED feature. With a 2.5-liter capacity, quiet operation, and multiple mist modes, it creates a comfortable and relaxing environment in your home or office.

Please read this instruction manual carefully before using the device to ensure safe and optimal performance. Keep this manual for future reference.

2. Udhëzimet e sigurisë

To prevent injury or damage to the device, always follow these basic safety precautions:

• Furnizimi me energji elektrike: Use only the provided USB-A to USB-C cable and a compatible 5V/1A power adapter (not included). Do not use adapters with higher voltage ose aktuale.
• Uji: Use clean tap water. Do not add hot water or other liquids to the water tank. Do not immerse the device in water or other liquids.
• Vendosja: Place the humidifier on a stable, flat, and water-resistant surface. Keep it away from direct sunlight, heat sources, and electronic devices. Ensure it is out of reach of children and pets.
• Operacioni: Do not block the mist outlets. Do not touch the ultrasonic atomizer while the device is operating.
• Mirëmbajtja: Always unplug the device before cleaning or refilling. Do not attempt to repair or modify the device yourself. Contact qualified personnel for service.
• Aroma Oils: Use only water-soluble essential oils in the dedicated aroma compartment. Do not add oils directly to the water tank.

3. Përmbajtja e paketës

Ju lutemi kontrolloni që të gjitha artikujt të jenë të pranishëm në paketim:

• Brandson Silent Air Humidifier and Aroma Diffuser
• Kabllo energjie USB-A në USB-C
• Manuali i Udhëzimeve

4. Përbërësit e produktit

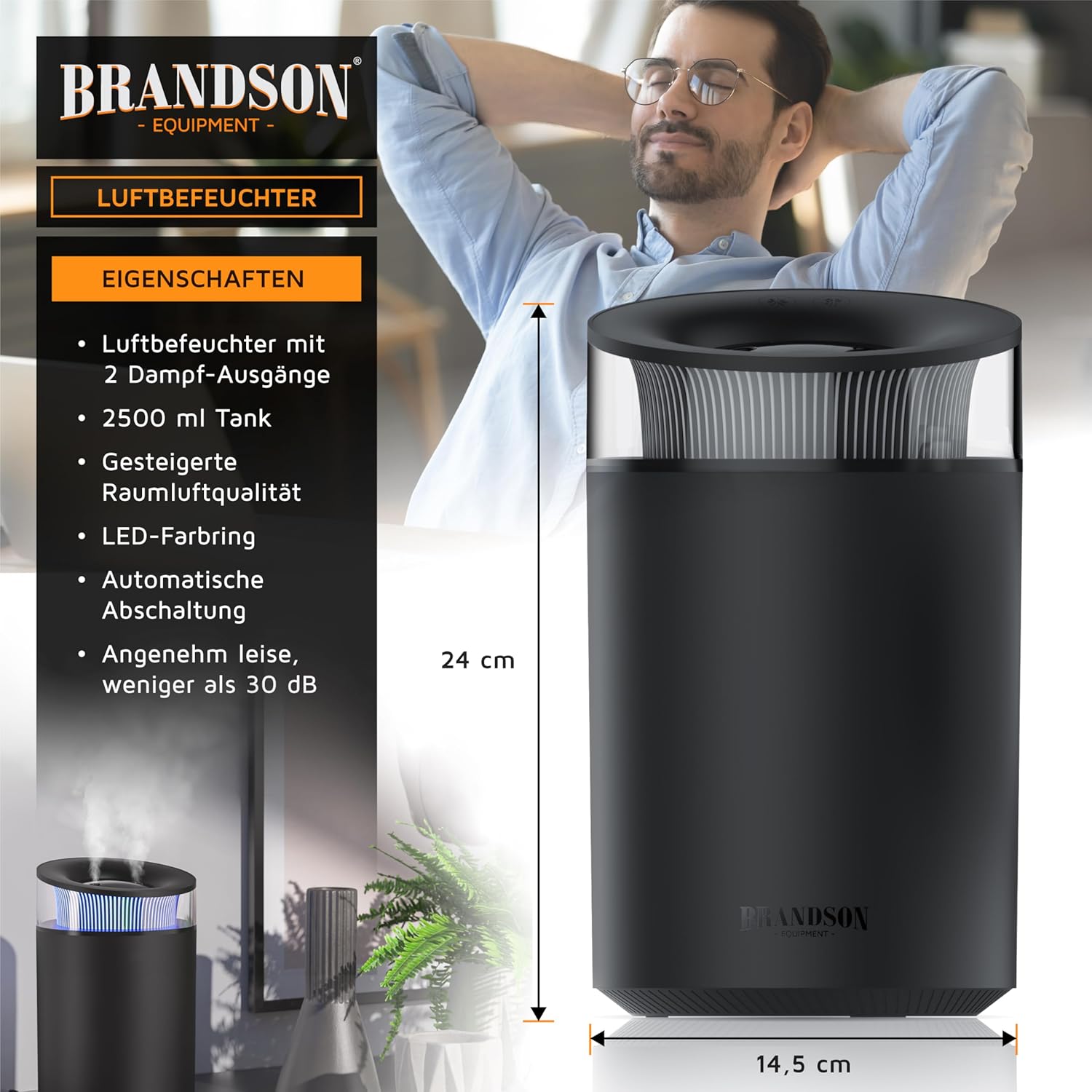

Figura 1: Produkti Mbiview me Përmasa. This image shows the overall design of the Brandson humidifier, highlighting its compact size (24 cm height, 14.5 cm diameter) and key features such as two mist outlets, 2500 ml tank, LED color ring, automatic shut-off, and quiet operation (less than 30 dB).

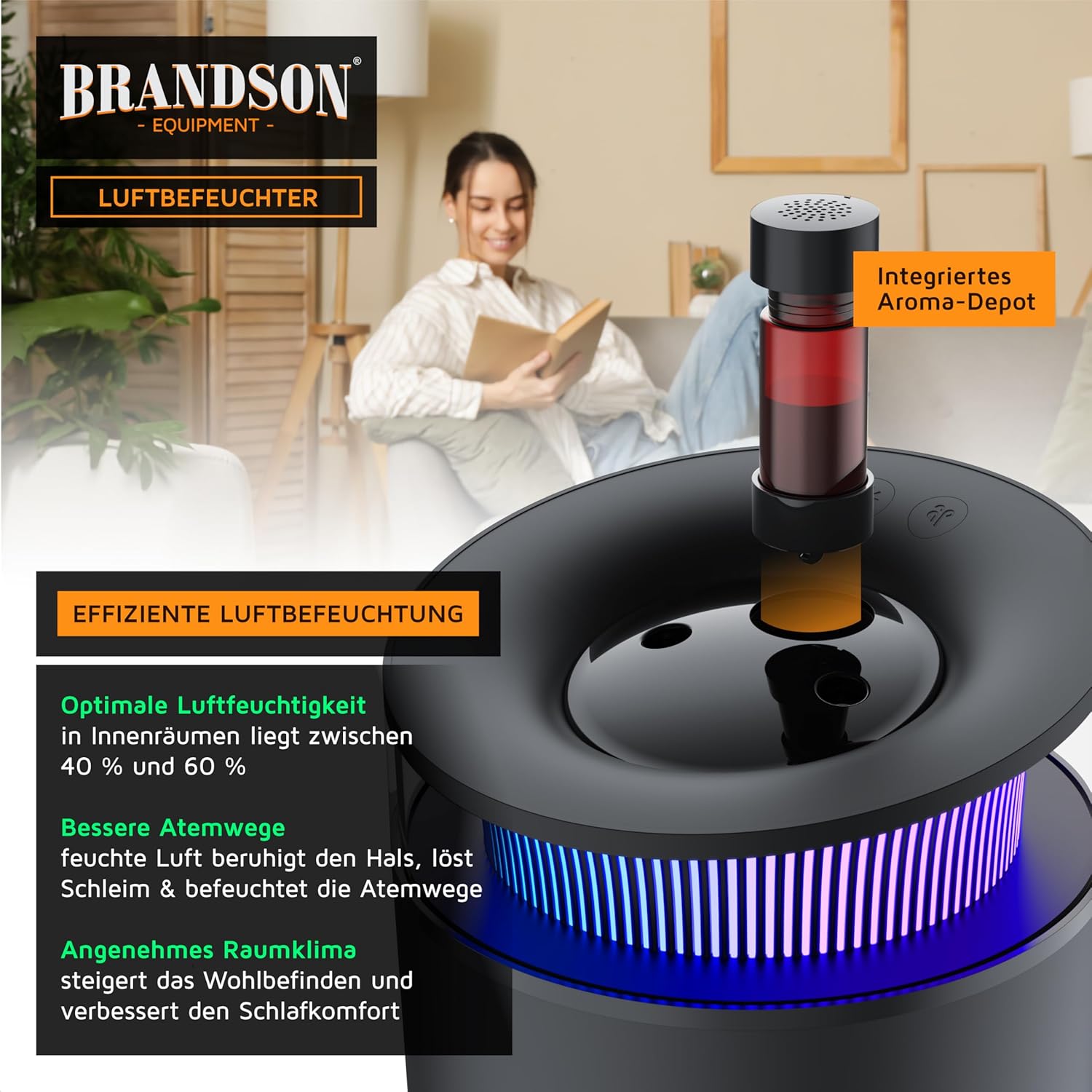

Figure 2: Integrated Aroma Compartment. Kjo view illustrates the dedicated compartment for aroma oils, designed for easy access and refilling. It also highlights the benefits of humidification for optimal indoor humidity (40-60%), improved breathing, and enhanced well-being.

Figure 3: Technical Details and LED Lighting. This image provides a closer look at the internal structure and technical specifications, including the 2500 ml tank capacity, maximum run times (25 hours dual, 50 hours single), and automatic shut-off timers (8 hours dual, 16 hours single). It also showcases the individual LED basic colors and the sliding color change function for ambient lighting.

Figure 4: Humidifier in Operation. This image depicts the humidifier actively releasing mist, demonstrating its function in improving air quality and providing a relaxing atmosphere.

Figure 5: Quiet Operation and Room Coverage. This image shows the humidifier placed on a bedside table, emphasizing its whisper-quiet operation (max. 30 dB) suitable for bedrooms. It also indicates its effectiveness for rooms up to 20 square meters and a maximum evaporation rate of 100 ml/h with two outlets.

Figure 6: Product Color Variants. This image displays the humidifier in both black and white color options, showcasing dizajnin e saj elegant.

Figure 7: Packaging and Accessories. This image shows the product packaging along with the humidifier and the USB-A to USB-C power cable, indicating what is included in the box.

5. Konfigurimi

Follow these steps to set up your Brandson Humidifier:

1. Shpaketoj: Hiqni me kujdes të gjithë përbërësit nga paketimi.
2. Vendosja: Place the humidifier on a firm, level, and waterproof surface, ensuring it is at least 15 cm away from walls and furniture.
3. Mbushni rezervuarin e ujit: Remove the top cover of the humidifier. Fill the 2.5-liter water tank with clean, cool tap water up to the MAX line. Do not overfill.
4. Add Aroma Oil (Optional): Locate the integrated aroma oil bottle compartment on the top of the device. Press down to release and remove the small bottle. Fill it with your desired water-soluble essential oil. Reinsert the bottle and ensure it clicks into place.
5. Zëvendësoni kapakun: Place the top cover back onto the humidifier, ensuring it is securely seated.
6. Lidhni fuqinë: Connect the USB-C end of the power cable to the port on the humidifier and the USB-A end to a compatible 5V/1A USB power adapter (not included) or a USB port on a computer.

6. Udhëzimet e funksionimit

The humidifier features two control buttons on the top surface for mist and light functions.

6.1 Kontroll i mjegullës

Press the mist button (usually indicated by a mist icon) to cycle through the mist modes:

• Shtypi i parë: Activates Dual Mist Mode (both outlets operate simultaneously).
• Shtypi i dytë: Activates Single Mist Mode (one outlet operates).
• Shtypi i tretë: Activates Alternating Mist Mode (outlets operate alternately).
• Shtypi i katërt: Çaktivizon funksionin e mjegullës.

The device features an automatic shut-off function:

• After approximately 8 hours in Dual Mist Mode.
• After approximately 16 hours in Single or Alternating Mist Mode.
• When the water tank is empty.

Kontroll i dritës LED 6.2

Press the light button (usually indicated by a light bulb icon) to control the LED ambient light:

• Shtypi i parë: Activates the automatic 7-color changing mode.
• Shtypjet pasuese: Cycles through individual fixed colors (e.g., red, green, blue, yellow, purple, cyan, white).
• Shtypi i gjatë: Turns off the LED light function.

6.3 Aroma Function

The aroma function operates passively through the integrated aroma oil bottle. Ensure the bottle is filled with essential oil as described in the setup section. The mist generated by the humidifier will help disperse the aroma into the air.

7. Mirëmbajtja dhe Pastrimi

Pastrimi i rregullt është thelbësor për performancë dhe higjienë optimale.

7.1 Mirëmbajtja Ditore

• Hiqeni pajisjen nga priza.
• Zbrazni ujin e mbetur nga rezervuari.
• Wipe the water tank and mist outlets with a clean, damp pëlhurë.
• Mbushni me ujë të freskët para çdo përdorimi.

7.2 Pastrimi javor

• Unplug the device and empty the water tank.
• Hiqni kapakun e sipërm.
• Gently clean the ultrasonic atomizer with a soft brush or cotton swab to remove any mineral deposits. Do not apply excessive pressure.
• Clean the water tank thoroughly with a mild detergent and rinse well.
• Clean the aroma oil compartment and the small aroma bottle.
• Wipe all surfaces with a dry cloth.

7.3 Ruajtja

If the humidifier will not be used for an extended period:

• Perform a thorough cleaning as described above.
• Sigurohuni që të gjitha pjesët të jenë tharë plotësisht.
• Ruajeni pajisjen në një vend të freskët dhe të thatë, larg nga rrezet e diellit direkte.

8. Troubleshooting

Nëse hasni probleme me lagështuesin tuaj, referojuni tabelës më poshtë për problemet dhe zgjidhjet e zakonshme.

9. Specifikimet

10. Garancia dhe Mbështetja

This Brandson product comes with a manufacturer's warranty. For detailed information regarding warranty terms, conditions, and duration, please refer to the warranty card included with your purchase or visit the official Brandson webfaqe.

For technical support, troubleshooting assistance, or spare parts, please contact Brandson customer service. You can find contact information and further resources on our webfaqe:

www.brandson-equipment.com

Ju lutemi të keni gati numrin e modelit (6868464) dhe detajet e blerjes kur të kontaktoni mbështetjen.
