1. Hyrje
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your AMERISUN 21-Inch 212cc Single-Stage Gas Powered Snow Blower. Please read this manual thoroughly before operating the equipment and keep it for future reference.
2. Informacion i rëndësishëm për sigurinë
KUJDES: Mosrespektimi i këtyre udhëzimeve të sigurisë mund të rezultojë në lëndime serioze ose vdekje.
- Always wear appropriate protective gear, including gloves and eye protection, when operating the snow blower.
- Never leave the snow blower running in an enclosed space to prevent carbon monoxide poisoning.
- Be cautious of rotating parts and keep hands and clothing away from them.
- Always turn off the snow blower and allow it to cool before refueling or performing maintenance.
- Store the snow blower in a dry, well-ventilated area, away from heat sources and flammable materials.
3. Konfigurimi dhe montimi
Your AMERISUN snow blower requires minimal assembly. Follow these steps carefully:
- Asambleja e timonit: Attach the upper handle to the lower handle using the provided bolts and knobs. Ensure all connections are secure.
- Montimi i gypit: Secure the discharge chute to the main unit. Ensure the chute rotation handle is properly connected for directional control.
- Lidhjet e kabllove: Connect all control cables (auger engagement, drive control) to their respective levers on the handlebar and attachment points on the engine/gearbox. Verify smooth operation of all levers.
- Kontrolloni gomat: Ensure tires are properly inflated and securely attached to the axles.
Figure 3.1: Key components of the snow blower. This diagram illustrates the main parts of the snow blower, including the handles, chute, engine components, and auger system, aiding in assembly and identification.
4. Udhëzimet e funksionimit
Before starting, ensure the snow blower is on a level surface and clear of any obstructions. Always wear appropriate safety gear.
4.1 Fuel and Oil
- Vaj motori: Fill the engine with the recommended 5W-30 oil (0.6L capacity). Check the oil level using the dipstick before each use.
- Karburanti: Fill the fuel tank (3L capacity) with fresh, unleaded gasoline. Do not overfill. Securely tighten the fuel cap to prevent fire hazards.
4.2 Nisja e motorit
- Ensure the engine key is fully inserted into the ignition slot.
- Move the fuel switch to the 'ON' position.
- Set the choke lever to the 'START' position.
- Press the primer bulb 1-3 times (do not exceed 3 times).
- Fillimi i kthimit: Pull the recoil starter handle rapidly until the engine starts.
- Once the engine starts, gradually move the choke lever to the 'RUN' position. Allow the engine to warm up for 30-40 seconds at idle speed.
4.3 Clearing Snow
- Engage the auger control bar to activate the snow clearing mechanism.
- Push the snow blower forward into the snow. The 21-inch clearing width and 12.5-inch intake height are designed for effective snow removal up to 8 inches deep.
- Use the easy chute control handle to adjust the direction of snow discharge up to 180 degrees, allowing you to direct snow away from cleared areas.
- The powerful 212cc 4-cycle engine provides 1,600 pounds of snow removal per minute, suitable for both fluffy and heavy snow.
Figure 4.1: Operating the snow blower to clear snow. This image demonstrates the snow blower in action, effectively clearing a path with its specified clearing width and ideal snow depth.

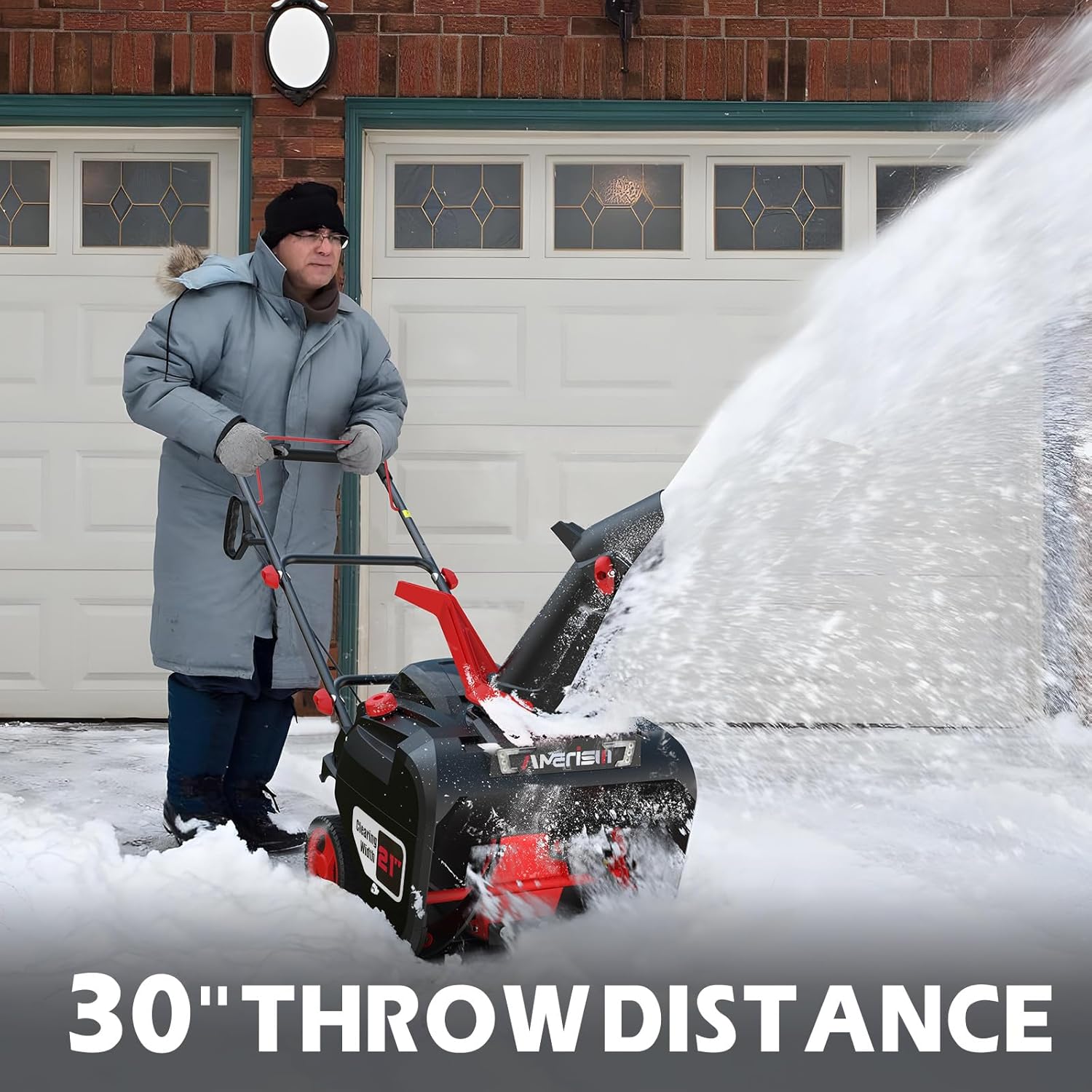

Figure 4.2: Snow discharge distance. This image illustrates the snow blower's capability to throw snow up to 30 feet, allowing for efficient clearing away from desired areas.
5. Mirëmbajtja
Regular maintenance ensures optimal performance and extends the lifespan of your snow blower.
- Vaj motori: Ndërroni vajin e motorrit pas 5 orëve të para të funksionimit, pastaj çdo 25 orë ose çdo vit.
- Kandele: Inspektoni dhe pastroni kandelën çdo vit. Zëvendësojeni nëse është e nevojshme.
- Filtri i ajrit: Clean the air filter regularly, especially in dusty conditions. Replace if damaged.
- Auger and Scraper Blade: Inspect the auger and scraper blade for wear or damage before each use. Replace worn parts to maintain clearing efficiency.
- Magazinimi: For long-term storage, drain the fuel tank or use a fuel stabilizer. Clean the unit thoroughly and store in a dry, protected area.
6. Troubleshooting
Referojuni këtij seksioni për problemet e zakonshme dhe zgjidhjet e tyre.
| Problem | Shkaku i mundshëm | Zgjidhje |
|---|---|---|
| Motori nuk fillon | No fuel, old fuel, engine key not inserted, choke incorrect, spark plug issue | Add fresh fuel, insert key, adjust choke, check/replace spark plug |
| Humbja e fuqisë gjatë funksionimit | Clogged chute, incorrect engine speed, low fuel/oil | Clear chute, adjust engine speed, check fuel/oil levels |
| Snow not clearing effectively | Worn auger/scraper blade, incorrect operating angle | Inspect/replace auger/blade, adjust operating technique |
7. Specifikimet
- Marka: AMERISUN
- Modeli: AM7006A
- Burimi i energjisë: Fuqia me gaz
- Lloji i motorit: 4 Cikli
- Zhvendosja e motorit: 212 centimetra kub
- Gjerësia e pastrimit: 21 inç
- Lartësia e marrjes: 12.5 inç
- Ideal Snow Depth: 6-8 inç
- Dimensionet e produktit: 48"D x 20.8"L x 36.6"H
- Pesha e artikullit: 68 paund
- Ngjyra: E zezë
- UPC: 840432701591
8. Garancia dhe Mbështetja
For warranty information, please refer to the documentation included with your purchase or contact AMERISUN customer support. For technical assistance or parts inquiries, please visit the official AMERISUN webfaqe ose kontaktoni departamentin e tyre të shërbimit ndaj klientit.
