1. Hyrje
This manual provides detailed instructions for the assembly, operation, and maintenance of your BEISHI Motorized TV Stand with Wheels. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.
2. Informacion i rëndësishëm për sigurinë
Failure to follow these safety instructions may result in property damage or personal injury.
- Always secure the stand when in use to prevent tip-over.
- Do not place heavy objects on the lower shelf exceeding its weight capacity.
- Keep the remote control out of reach of young children to prevent choking hazards.
- Always lock the wheels when the stand is stationary to ensure stability.
- Ensure the area beneath the TV is clear before lowering the height to prevent obstructions.
- Mos e tejkaloni kapacitetin maksimal të peshës prej 154 lbs (70 kg) për televizorin.
- Ensure your TV's VESA pattern is compatible with the stand (100x100mm to 600x400mm).
3. Përmbajtja e paketës
Verifikoni që të gjithë komponentët janë të pranishëm dhe të padëmtuar përpara se të filloni montimin. Nëse ndonjë pjesë mungon ose është e dëmtuar, ju lutemi kontaktoni mbështetjen ndaj klientit.
- Main Stand Components (Base, Columns, TV Mount)
- Wooden Shelf & Panel
- Motorized Height Adjustment System
- Telekomandë
- Caster Wheels (with locking mechanism)
- Hardware Kit (screws, washers, spacers, tools)
- Manuali i Udhëzimeve
4. Udhëzimet e Kuvendit
Follow these steps carefully for proper assembly. It is recommended to have two people for certain steps, especially when mounting the TV.
- Shpaketoni dhe identifikoni pjesët: Lay out all components on a soft, clean surface. Refer to the parts list in your hardware kit to identify each piece.
- Mblidhni bazën: Attach the vertical columns to the base feet, ensuring all screws are securely tightened.
- Install Caster Wheels: Securely attach the locking caster wheels to the base feet. Ensure the locking mechanism functions correctly.
- Attach the Wooden Shelf: Mount the wooden shelf and panel to the designated positions on the vertical columns.
- Install the Motorized System: Integrate the motorized height adjustment mechanism into the stand structure as per the detailed diagrams in your included guide. Connect all necessary cables.
- Prepare TV for Mounting: Attach the TV mounting brackets to the back of your television, ensuring the correct VESA pattern screws and spacers are used. Refer to your TV's manual for specific VESA hole locations.
- Montoni televizorin: Carefully lift the TV and hook the brackets onto the TV mount on the stand. Secure the TV with the safety screws or locking mechanisms provided.
- Lidhni fuqinë: Plug the power cord for the motorized system into a suitable electrical outlet.
Imazh: Mbiview of stand dimensions, VESA compatibility, and weight capacity.
Imazh: I detajuar view of the motorized mechanism and TV mounting brackets.
5. Udhëzimet e funksionimit
5.1 Electric Height Adjustment
The BEISHI Motorized TV Stand features an electric height adjustment system controlled by a remote.
- Rregullimi i lartësisë: Use the UP and DOWN buttons on the remote control to smoothly adjust the TV height between 46.5 inches and 62.2 inches.
- Paracaktimet e memories: The stand allows you to store two preferred height settings. To set a memory position:
- Adjust the stand to your desired height.
- Press the 'SET' button once.
- Press either 'M1' or 'M2' button within 3 seconds to save the current height to that memory slot.
- Recalling Memory Presets: Press 'M1' or 'M2' to automatically move the TV to the saved height.
- Pozicioni i shtëpisë: Press the 'HOME' button to return the TV to a default or pre-set home position.
Image: Electric height adjustment range.

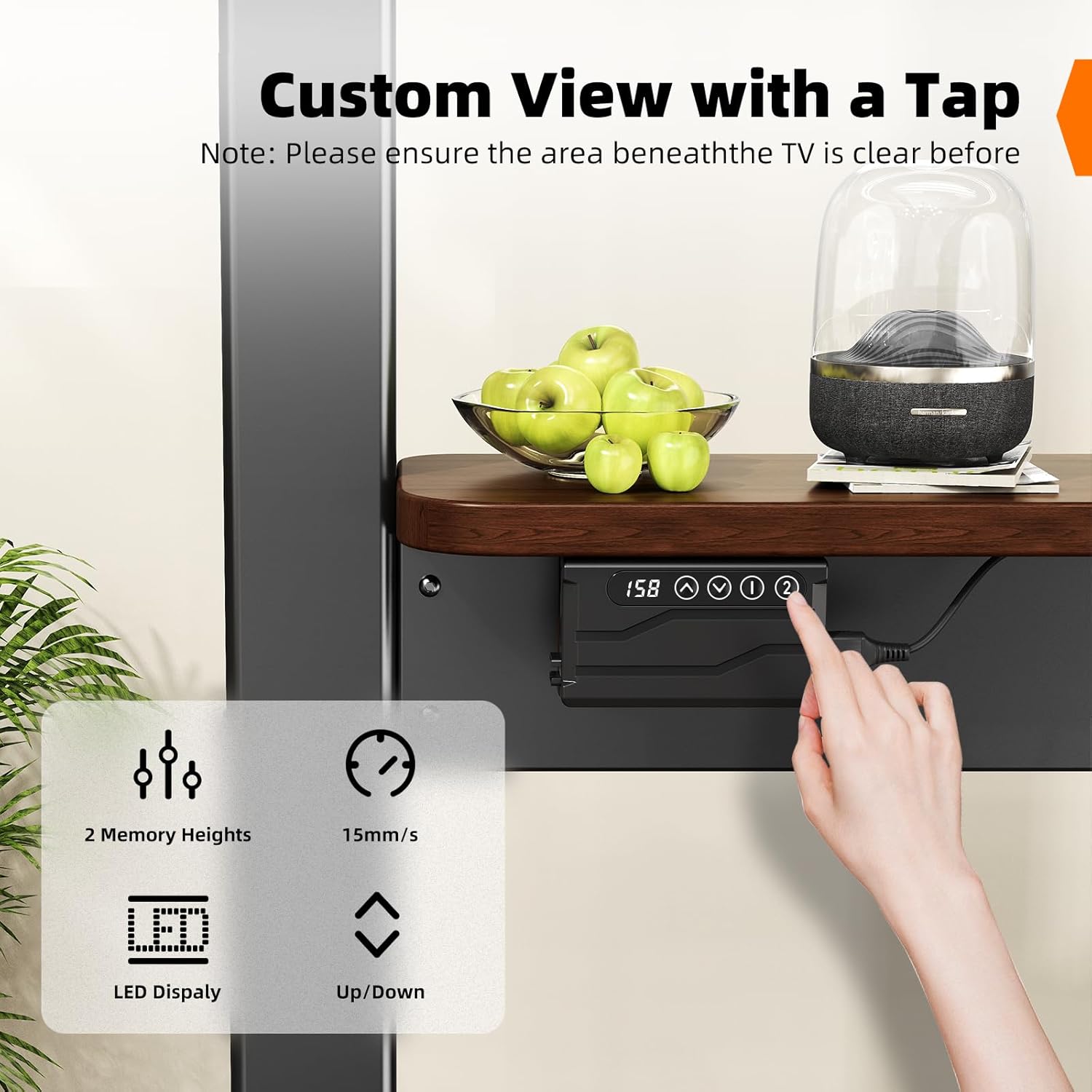

Image: Control panel for height adjustment and memory presets.
5.2 Mobility and Locking Wheels
The stand is equipped with caster wheels for easy movement and locking mechanisms for stability.
- Zhvendosja e stendës: Unlock all caster wheels before moving the stand. Gently push the stand to your desired location.
- Securing the Stand: Once the stand is in position, engage the locking mechanism on all wheels to prevent unintended movement.
Image: Caster wheels with 360-degree rotation and locking function.
6. Karakteristikat e produkteve
- Motorized Height Adjustment: Electric system with remote control for smooth height adjustments from 46.5" to 62.2". Includes 2 memory presets.
- Përputhshmëri e gjerë: Supports LCD, LED, and OLED 4K TVs from 37 to 86 inches, with VESA standards from 100x100mm to 600x400mm. Maximum TV weight capacity is 154 lbs (70 kg).
- Dizajni i celularit: Equipped with lockable caster wheels for easy relocation and secure positioning.
- Hapësirë ruajtëse e integruar: Features a wooden shelf (25.59" x 7.87") capable of holding up to 22 lbs, suitable for media devices, gaming consoles, or other accessories. Includes a detachable top shelf for projectors.
- Ndërtim i qëndrueshëm: Sturdy carbon steel frame ensures stable support.
Image: Wooden storage shelf details.
7. Mirëmbajtja
To ensure the longevity and proper functioning of your TV stand, follow these maintenance guidelines:
- Pastrimi: Wipe the stand with a soft, dry cloth. For stubborn marks, use a slightly damp Lajeni leckën me sapun të butë, pastaj thajeni menjëherë. Shmangni pastruesit ose tretësit gërryes.
- Kontrolli i harduerit: Kontrolloni periodikisht të gjitha vidat dhe bulonat për t'u siguruar që janë të shtrënguara. Shtrëngojini përsëri nëse është e nevojshme.
- Inspektimi i motorit: Ensure the motorized components are free from dust and obstructions. Do not attempt to lubricate or disassemble the motor.
- Menaxhimi i kabllove: Keep all power and TV cables neatly organized to prevent snagging or damage during movement or height adjustment.
8. Troubleshooting
If you encounter any issues with your BEISHI Motorized TV Stand, refer to the table below for common problems and solutions.
| Problem | Shkaku i mundshëm | Zgjidhje |
|---|---|---|
| Stand does not move up or down. | Power cord disconnected; Remote control battery low; Motor obstruction. | Check power connection; Replace remote batteries; Remove any obstructions around the motor or columns. |
| Telekomanda nuk përgjigjet. | Remote batteries depleted; Remote out of range; Signal interference. | Replace remote batteries; Ensure remote is pointed at the receiver; Reduce interference from other electronic devices. |
| TV wobbles or feels unstable. | Wheels unlocked; Loose assembly screws; TV weight exceeds capacity. | Lock all caster wheels; Re-tighten all assembly screws; Ensure TV weight is within 154 lbs limit. |
| Memory presets not saving/recalling. | Procedura e gabuar e ruajtjes. | Follow the memory preset instructions carefully: adjust height, press 'SET', then press 'M1' or 'M2' within 3 seconds. |
If the problem persists after attempting these solutions, please contact BEISHI customer support for further assistance.
9. Specifikimet
| Veçori | Specifikimi |
|---|---|
| Markë | BEISHI |
| Model | B0FHGSX9LB |
| Përputhshmëria e madhësisë së televizorit | 37 - 86 inç |
| Max TV Weight Capacity | 154 lbs (70 kg) |
| Përputhshmëria VESA | 100x100mm deri në 600x400mm |
| Gama e rregullimit të lartësisë | 46.5 inç - 62.2 inç |
| Materiali | Çeliku i karbonit |
| Pesha e artikullit | 45.7 paund |
| Dimensionet e paketës | 51.5 x 11.5 x 6 inç |
| Storage Shelf Capacity | 22 paund |
| Ngjyra | E zezë |
10. Garancia dhe Mbështetja
BEISHI products are manufactured with quality and durability in mind. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty details, claims, or technical support, please refer to the warranty card included with your product or contact BEISHI customer service directly through their official webvendi ose shitësi me pakicë ku është blerë produkti.
