1. Hyrje
Thank you for choosing the Morpilot HS010-G 6-in-1 Electric Milk Frother. This appliance is designed to create various milk preparations, including warm dense foam, warm airy foam, warm milk, hot milk, hot chocolate, and cold foam, enhancing your coffee and beverage experience at home. Please read this manual thoroughly before first use to ensure safe operation and optimal performance.
2. Udhëzimet e sigurisë
- Sigurohuni gjithmonë që pajisja të vendoset në një sipërfaqe të qëndrueshme, të sheshtë dhe rezistente ndaj nxehtësisë.
- Do not immerse the base unit in water or any other liquid. The glass carafe is detachable and washable.
- Mbajeni larg fëmijëve. Kjo pajisje nuk është menduar për përdorim nga persona me aftësi të kufizuara fizike, shqisore ose mendore, përveç nëse mbikëqyren.
- Mos e përdorni pajisjen nëse kordoni ose spina është dëmtuar.
- Avoid touching hot surfaces. Use the anti-scald handle when pouring.
- Only use the provided whisk attachments.
- Do not fill above the maximum fill lines indicated on the glass carafe to prevent overflow.
- Unplug the frother from the power outlet when not in use and before cleaning.
3. Produkti i Mbaruarview
Familiarize yourself with the components of your Morpilot Milk Frother.
Figure 1: Morpilot Milk Frother with examples of prepared beverages (warm and thin foam, warm and dense foam, warm milk, hot milk, hot chocolates, cold foam).
The appliance consists of a power base, a detachable glass carafe with a handle, and various whisk attachments for different functions. The control panel on the base features intuitive buttons for selecting your desired milk preparation.
4. Konfigurimi
- Shpaketoj: Hiqni me kujdes të gjithë përbërësit nga paketimi.
- Pastroni: Before first use, wash the glass carafe and whisk attachments with warm soapy water. Rinse thoroughly and dry. Wipe the power base with a damp pëlhurë.
- Mblidhni: Place the desired whisk attachment inside the glass carafe. Ensure it is securely seated on the central pin.
- Pozicioni: Place the power base on a dry, stable, and heat-resistant surface.
- Lidhu: Lidheni kordonin e rrymës në një prizë elektrike të përshtatshme.
5. Udhëzimet e funksionimit
The Morpilot Milk Frother offers 6 functions for various milk preparations. Always ensure the correct whisk is installed for frothing, and remove the whisk coil for heating only.
Figure 2: Fill lines for hot milk (MAX 500ml) and milk foam (MAX 250ml, MIN 130ml).
Hapat e përgjithshëm të funksionimit:
- Pour milk into the glass carafe. Observe the MIN (130ml) and MAX (250ml for frothing, 500ml for heating) fill lines. For best results, use full-fat milk (fat content > 3%).
- Place the glass carafe onto the power base.
- Select the desired function by pressing the corresponding button on the base. The indicator light will illuminate.
- The frother will automatically start and stop when the process is complete.
- Carefully remove the carafe using the handle and pour your prepared milk.
Funksione specifike:
- Warm Dense Foam: Use the frothing whisk. Fills to MAX 250ml.
- Warm Airy Foam: Use the frothing whisk. Fills to MAX 250ml.
- Warm Milk (50-60°C): Remove the whisk coil. Fills to MAX 500ml.
- Hot Milk (65-70°C): Remove the whisk coil. Fills to MAX 500ml.
- Çokollatë e nxehtë: Use the frothing whisk. Add chocolate powder/flakes with milk. Fills to MAX 250ml.
- Shkumë e ftohtë: Use the frothing whisk. Fills to MAX 250ml.

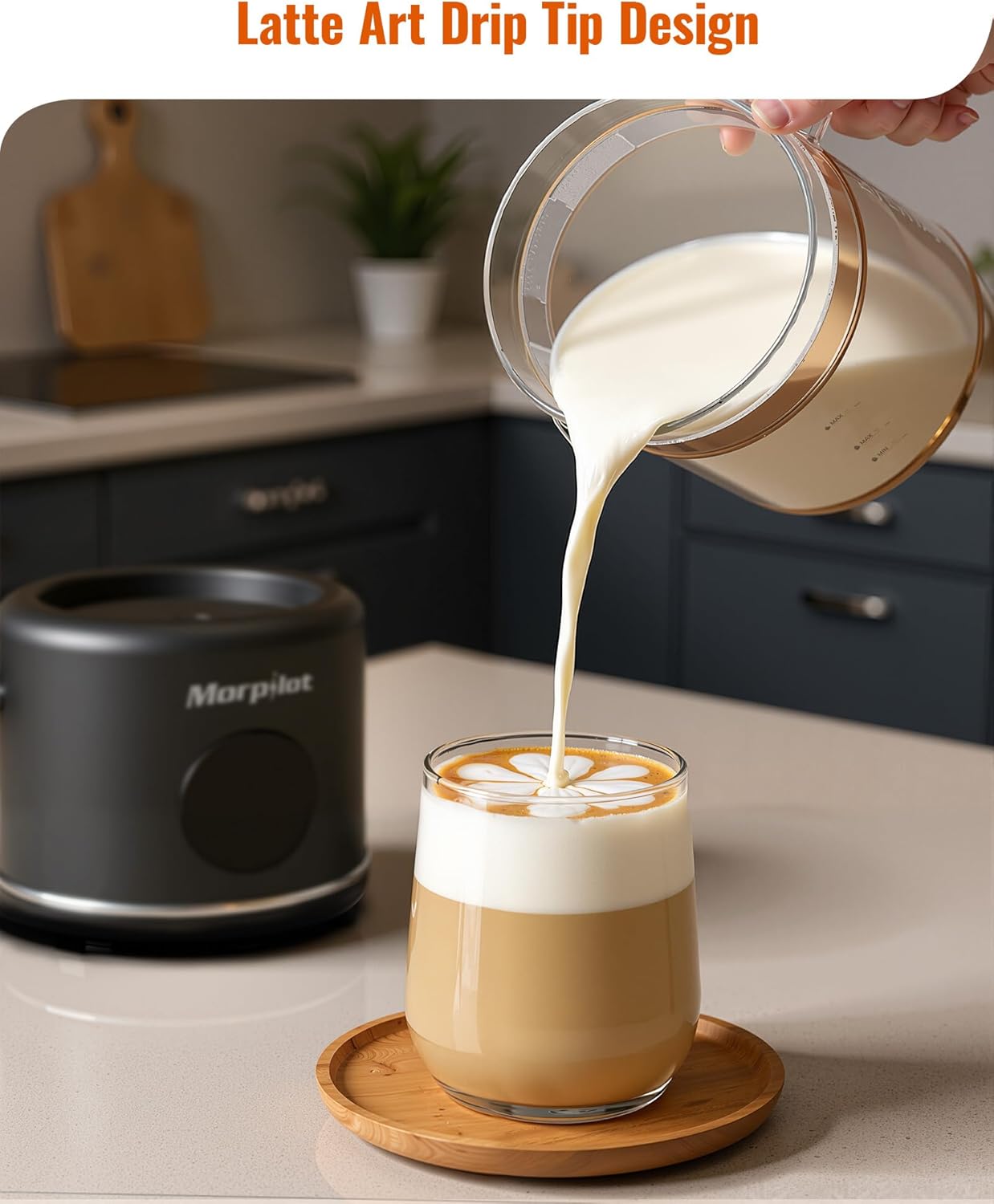

Figure 3: The drip-free spout design allows for precise pouring, ideal for latte art.
6. Mirëmbajtja dhe Pastrimi
Pastrimi i rregullt siguron jetëgjatësinë dhe performancën optimale të shkumëzuesit të qumështit.
- Shkëputni prizën: Gjithmonë hiqni pajisjen nga priza e rrymës para se ta pastroni.
- Ftohu: Allow the frother to cool down completely after use.
- Wash Carafe and Whisks: The glass carafe and whisk attachments are dishwasher safe or can be hand-washed with warm soapy water. Rinse thoroughly.
- Bazë e pastër: Wipe the exterior of the power base with a soft, damp pëlhurë. Mos e zhytni bazën në ujë.
- E thatë: Ensure all parts are completely dry before reassembling or storing. Wipe away any water spots from the base of the milk cup after cleaning to maintain optimal performance.
Figure 4: The glass carafe and lid are suitable for both dishwasher and hand washing.
7. Troubleshooting
If you encounter any issues, please refer to the following troubleshooting guide:
| Problem | Shkaku i mundshëm | Zgjidhje |
|---|---|---|
| Frother nuk ndizet. | Nuk është i lidhur në prizë; është shkëputur nga rrymatage; prizë e dëmtuar. | Ensure the frother is securely plugged in. Check the power outlet with another appliance. |
| Qumështi nuk shkumëzon ose nuk ngrohet siç duhet. | Incorrect milk type; insufficient milk; whisk not installed correctly; whisk coil missing for heating. | Use full-fat milk (>3% fat). Ensure milk is between MIN and MAX fill lines. Check that the whisk is properly seated. For heating only, ensure the whisk coil is removed. |
| Qumështi del nga shtrati. | Overfilled carafe. | Do not exceed the MAX fill line for frothing (250ml) or heating (500ml). |
| Erë djegieje ose qumështi ngjitet në fund. | Carafe not cleaned properly; dry operation. | Clean the carafe thoroughly after each use. Ensure there is always milk in the carafe when operating. The automatic shut-off feature should prevent burning. |
Nëse problemi vazhdon pasi të keni ndjekur këto hapa, ju lutemi kontaktoni mbështetjen e klientit.
8. Specifikimet
- Marka: Morpilot
- Modeli: HS010-G
- Ngjyra: E zezë
- Kapaciteti: 500 ml (heating), 250 ml (frothing max), 130 ml (frothing min)
- Materiali: Xhami
- Karakteristikat e veçanta: Automatic Shut-off, Visual Glass Carafe
- Burimi i energjisë: Elektrike me kabllo
- Pesha e artikullit: 1.1 kilogramë
- Dimensionet: 21 x 15.2 x 14.6 cm
9. Garancia dhe Mbështetja
Morpilot products are designed for reliability and performance. For warranty information or technical support, please refer to the warranty card included with your product or visit the official Morpilot website. Please have your model number (HS010-G) and purchase date ready when contacting support.
